UA2

UA2
Luigi Di Lella · CC BY 4.0 · source
Name	UA2

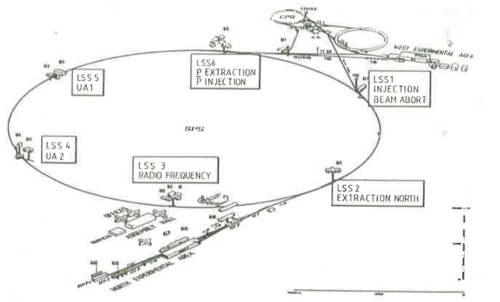

Location	CERN SPS
Facility	CERN Super Proton Synchrotron
Period	1978–1990
Collaborators	UA2 Collaboration
Detector	UA2 detector
Subjects	Proton–antiproton collisions, jet physics, W boson, Z boson, electroweak interactions

UA2

UA2 was a high-energy physics experiment at the CERN Super Proton Synchrotron (Super Proton Synchrotron) that performed proton–antiproton collision studies during the late 1970s and 1980s. Built to study hadronic jets, electroweak bosons, and searches for new particles, UA2 produced results complementary to those from contemporaneous experiments at Fermilab and from other CERN projects. The collaboration contributed to the experimental confirmation of the W boson and measurements relevant to the Standard Model.

History

UA2 was proposed and approved in the context of converting the Super Proton Synchrotron into a proton–antiproton collider following the success of the Intersecting Storage Rings and the conceptual advances of the SPS collider program. The experiment was designed in parallel with the UA1 experiment to exploit the novel antiproton source developed by CERN Accelerator Division teams led by figures associated with the Antiproton Accumulator. Construction and commissioning took place as part of the collider startup in the late 1970s and early 1980s, overlapping with operations at Fermilab Tevatron and informing strategies used later at the Large Electron–Positron Collider and the Large Hadron Collider. UA2 ran through upgrades and data-taking campaigns until the SPS collider program concluded and subsequently influenced detector design at DESY and other laboratories.

Experiment and Detector

The UA2 detector was optimized for calorimetry and electromagnetic measurements to identify high-transverse-momentum electrons and photons from W boson and Z boson decays as well as for jet reconstruction. Its apparatus included a central electromagnetic calorimeter, hadronic calorimetry, a magnetic spectrometer, and triggering systems developed in coordination with electronics groups from CERN, University of Geneva, and participating institutes such as University of Oxford and University of Milan. The detector geometry emphasized full azimuthal coverage and segmented calorimeter modules influenced by designs from SLAC and Brookhaven National Laboratory. UA2 used cryogenic systems, precision alignment from engineering teams at École Polytechnique, and data acquisition hardware patterned after custom systems from Imperial College London groups.

Key Discoveries and Results

UA2 played a pivotal role in the experimental observation and characterization of the W boson in association with the UA1 collaboration's findings, providing independent confirmation through electron-plus-missing-energy signatures and invariant mass studies. The experiment measured cross sections for jet production relevant to perturbative Quantum Chromodynamics tests and compared results with theoretical predictions by groups at CERN Theory Division, Brookhaven National Laboratory, and SLAC National Accelerator Laboratory. UA2 produced limits and signals in searches for heavy resonances, contributing limits on hypothetical particles postulated by extensions such as Grand Unified Theory-inspired bosons and early supersymmetry scenarios investigated by researchers at CERN and Caltech. Precision measurements from UA2 informed determinations of electroweak parameters that influenced global fits involving results from the LEP program and worldwide electroweak data compilations by institutes including Stanford Linear Accelerator Center and University of Chicago.

Data Analysis and Methods

UA2 employed calorimetric reconstruction techniques, clustering algorithms, and event selection strategies developed in collaboration with computing groups from CERN and university partners like University of Liverpool and University of Pisa. Jet-finding methods compared cone algorithms with early implementations of sequential recombination ideas later formalized by theorists at Oxford University and MIT. Background estimation used control samples inspired by methods from Fermilab experiments, and systematic uncertainty evaluation adopted practices from SLAC and DESY. Data storage and processing relied on mainframe and early workstation networks coordinated with the CERN Data Handling teams; analysis software evolved through contributions from software groups at CNRS and INFN institutions. Calibration procedures used test-beam data from facilities at CERN PS and incorporated electromagnetic shower models developed by theorists at CERN Theory Division and University of California, Berkeley.

Collaborations and Personnel

The UA2 Collaboration comprised physicists, engineers, and technicians from dozens of institutions across Europe and beyond, including notable groups from CERN, University of Geneva, University of Milan, University of Oxford, University of Liverpool, INFN, CNRS, and DESY. Leadership and spokesperson roles rotated among senior experimentalists with prior involvement in projects at SLAC and Brookhaven National Laboratory. Graduate students and postdoctoral researchers from Imperial College London, University of Pisa, Caltech, and Stanford University made major contributions to detector construction, trigger design, and data analysis. The collaboration worked closely with accelerator teams managing the SPS collider and with theoretical physicists from CERN Theory Division and Princeton University to interpret results.

Legacy and Impact on Particle Physics

UA2’s contributions helped establish experimental techniques for calorimetry, triggering, and jet reconstruction that were adopted by later experiments at the Large Electron–Positron Collider and the Large Hadron Collider. Its confirmation of electroweak boson signals complemented findings from UA1 and shaped subsequent searches performed by CDF and DØ at the Fermilab Tevatron. The collaboration’s analysis strategies influenced software frameworks later used by ATLAS and CMS, while its personnel and technical innovations seeded expertise that migrated to programs at CERN and international laboratories. UA2 remains cited in historical overviews of the experimental verification of the Standard Model and in methodological literature on calorimeter design and jet physics.
