Type 91 torpedo

Type 91 torpedo

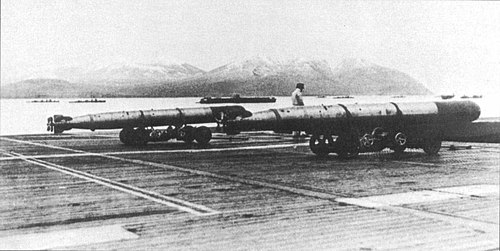

Unknown authorUnknown author · Public domain · source
Name	Type 91 torpedo
Origin	Empire of Japan
Type	Aircraft-launched torpedo
Used by	Imperial Japanese Navy
Wars	Second Sino-Japanese War, Pacific War
Design date	1930s
Manufacturer	Kure Naval Arsenal, Yokosuka Naval Arsenal
Diameter	(typical 45 cm class)
Filling	High explosive (Shimose, Type 97)
Detonation	Contact exploder (initial), later Mk modifications
Engine	Wet-heater, kerosene-fueled

Type 91 torpedo The Type 91 torpedo was an Imperial Japanese Navy aircraft-launched torpedo developed in the 1930s and used extensively during the Second Sino-Japanese War and the Pacific War. It combined innovations in propulsion, guidance, and aerial launch techniques that influenced operations at Pearl Harbor, Battle of Midway, and Battle of the Coral Sea. The weapon linked developments at Kure and Yokosuka arsenals with tactical concepts employed by units such as the Koku Sentai and aircrews from Akagi, Kaga, and Soryu.

Development and Design

Development began in the early 1930s at arsenals including Kure Naval Arsenal and Yokosuka Naval Arsenal under direction from the Imperial Japanese Navy General Staff and technical offices within the Bureau of Naval Affairs. Influences included earlier designs such as the Type 8 torpedo and observations of foreign practice at events involving Royal Navy and United States Navy aviation experiments. Engineers studied hydrostatic steering and wet-heater propulsion used on surface-launched models like the Type 93 torpedo and adapted mechanisms for aerial release challenges encountered in trials over ranges near Kagoshima Bay and training areas at Kasumigaura Naval Air Station.

Design goals focused on stabilizing water entry, preserving depth-keeping, and ensuring reliable detonation against armored hulls of capital ships exemplified by classes like Yamato and King George V-class battleship. To meet aerial carriage constraints, the design incorporated wooden tail attachments and breakaway stabilizers developed by teams influenced by work at Tokyo Imperial University and input from aviators of units such as 16th Air Fleet.

Technical Specifications

Specifications evolved across production batches built at facilities including Mitsubishi Heavy Industries and Tōkyō Gasu Denki. Typical parameters were derived from the 45 cm class common to IJN practice, with a length and mass suitable for operation from torpedo bombers such as the Nakajima B5N and Mitsubishi G4M. Propulsion employed a kerosene-fueled wet-heater engine concept related to systems on the Type 93 torpedo but scaled for aircraft use, supplying continuous power to a three-bladed propeller and a rudimentary gyro guidance adapted from designs tested at Yokosuka Naval Air Technical Arsenal.

Warhead compositions initially used Shimose explosive formulations developed in coordination with chemists at Kyoto Imperial University and munitions departments at Kure Naval Arsenal; later ordnance used Type 97 compositions and improved contact exploders inspired by analysis from the Naval Technical Research Institute. Depth-keeping used a combination of pendulum-gyroscope and hydrostatic valves analogous to mechanisms studied in trials that involved crews from 1st Air Fleet and 11th Air Fleet.

Operational History

The Type 91 entered frontline use during conflicts such as the Second Sino-Japanese War and saw extensive deployment in key Pacific engagements including Attack on Pearl Harbor, Indian Ocean raid, and the carrier battles around Midway Atoll. Units from carriers including Akagi, Kaga, Soryu, and Hiryu employed the weapon in coordinated strikes alongside dive bombers from squadrons like Aichi D3A and Val (Aichi D3A)-equipped air groups. Its operational record included successes against merchant shipping during operations near Malaya and Philippines Campaign (1941–1942), and mixed results in engagements such as Battle of the Coral Sea where anti-aircraft defenses from ships like USS Lexington (CV-2) and HMAS Canberra challenged delivery.

Mechanical and aerodynamic refinements followed combat feedback from pilots and technicians attached to formations including 641st Naval Air Group and Chuichi Nagumo’s carrier strike force. Issues noted by crews were mitigated before later campaigns such as Solomon Islands campaign where torpedo bomber tactics were combined with surface actions by fleets under admiralty commands like Isoroku Yamamoto and Gunichi Mikawa.

Variants and Modifications

Variants were produced reflecting changes in warhead, guidance, and aerial-release aids, with major modifications handled by establishments like Kawasaki Shipbuilding Corporation and the Naval Technical Arsenal. Early production models prioritized stabilization for low-altitude drops used by aircraft seen in inventories of 6th Air Flotilla, while later versions added reinforced tail fairings and braking rings inspired by experimental work at Kasumigaura and countermeasure studies prompted after encounters with Allied carriers including USS Yorktown (CV-5). Field modifications often occurred at forward bases such as Rabaul and repair facilities at Truk Lagoon.

Specific sub-types were adapted for manual depth adjustment, altered explosive fillings, and revised exploder strikes informed by ordnance assessments conducted by staffs from Combined Fleet and academic collaborators from Osaka Imperial University.

Deployment and Tactical Use

Tactically, the Type 91 was integrated into IJN doctrine combining carrier aviation tactics practiced by formations under leaders like Chūichi Hara and Toshio Matsuda. Torpedo bombers coordinated with fighters such as Mitsubishi A6M Zero to suppress interceptions during attacks on targets including Prince of Wales (53) and Repulse-type engagements and coastal convoys near Dutch East Indies. Launch parameters—speed, altitude, and release angles—were standardized in manuals distributed to squadrons stationed at bases like Saipan and Okinawa’s airfields. Anti-ship tactics emphasized achieving spreads to overwhelm shipboard defenses exemplified by procedures taught at Naval Air Training Command schools and tested in large exercises off Sagami Bay.

The weapon’s use influenced Allied countermeasures, prompting developments in anti-torpedo nets and deck armor on ships such as HMS Prince of Wales and alterations in escort tactics by commanders in the United States Pacific Fleet.

Survivors and Preservation

Surviving examples are preserved in museums and collections with provenance traced to arsenals and battleground recoveries; institutions holding artifacts include the Yasukuni Shrine Museum, Maritime Self-Defense Force Etajima Museum, and naval exhibits at Kure Maritime Museum. Recovered components surfaced in underwater archaeology efforts at sites like Truk Lagoon and museum installations at Yokosuka Museum of Art-affiliated displays. Private collections and restoration projects sometimes collaborate with historians from National Institute for Defense Studies (Japan) and curators at Museum of the Great Patriotic War to conserve remnants and document operational context.
