Type 86 IFV

Type 86 IFV
Vitaly V. Kuzmin · CC BY-SA 4.0 · source
Name	Type 86 IFV

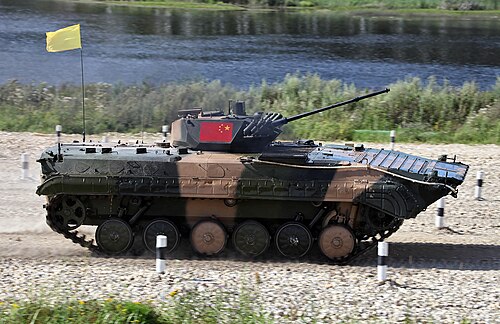

Caption	Type 86 infantry fighting vehicle
Origin	People's Republic of China
Type	Infantry fighting vehicle
Service	1980s–present
Used by	See Export and Users
Designer	Norinco
Design date	1980s
Manufacturer	Norinco
Production date	1980s–1990s
Number	Several hundred
Weight	~13–14 tonnes
Length	~6.7 m
Width	~3.1 m
Height	~2.8 m
Crew	3 + 8 troops
Armament	73 mm gun, 7.62 mm coaxial machine gun, ATGM (variant)
Engine	Diesel
Suspension	Torsion bar
Speed	~65 km/h
Vehicle range	~500 km

Type 86 IFV The Type 86 IFV is a Chinese infantry fighting vehicle developed during the late Cold War era as an indigenous adaptation of foreign designs. It entered service with the People's Liberation Army in the 1980s and later appeared in export inventories of several countries. The vehicle bridges mechanized infantry capabilities within formations alongside platforms such as the Type 63 APC and the ZBD-04 family.

Development and Design

Development began after Chinese acquisition and examination of foreign armored designs, notably influences from the BMP-1 program, and contacts with suppliers during the 1960s–1970s. The industrial lead, Norinco, adapted features to meet requirements issued by the People's Liberation Army Ground Force and incorporated lessons from exercises with formations like the Nanjing Military Region and the Beijing Military Region. Design priorities emphasized a low silhouette inspired by the BMP-1 and improved ergonomics for dismounting infantry, following doctrinal shifts influenced by encounters such as the Sino-Vietnamese War and observations of mechanized operations during the Yom Kippur War and the Six-Day War.

The hull layout adopted a forward-mounted engine in some prototypes but standardized to the rear-engine configuration for production to streamline maintenance with other Chinese tracked vehicles such as the Type 59 series. Crew layout mirrors contemporaneous designs: driver, gunner, commander, plus a rear compartment for infantry with side and roof hatches for rapid egress. Armor composition used welded steel plate common to Chinese armored vehicle practices at facilities in Baotou and Shenyang.

Armament and Protection

Primary armament in early production models was a 73 mm low-pressure smoothbore gun paired with a 7.62 mm coaxial machine gun, a configuration echoing the armament package of the BMP-1. Fire control elements combined optical sights with manual traverse, while later retrofit packages introduced day/night sights and laser rangefinders developed at institutes such as the Beijing Institute of Technology. Selected variants received anti-tank guided missiles (ATGMs) similar in concept to the AT-3 Sagger to engage armored threats at extended ranges during combined arms maneuvers.

Protection relied primarily on all-welded steel hull armor capable of defeating small arms and shell splinters, with limited resistance to shaped charges and kinetic energy rounds. Crew survivability features included firing ports, NBC protection systems derived from equipment tested by the Chinese Academy of Sciences, and internal spall liners in retrofit programs performed at NORINCO workshops. Mine blast mitigation remained limited compared to later Western designs showcased at events like the NATO armored vehicle exhibitions, prompting field modifications for users operating in environments similar to operations during the Gulf War.

Mobility and Variants

Mobility centered on a diesel powerplant coupled to a torsion bar suspension and tracked running gear similar to other Cold War-era IFVs. The vehicle achieved road speeds around 60–70 km/h and operational ranges approaching 400–500 km, supporting maneuvers alongside main battle tanks such as the Type 59 and later the Type 96. Amphibious capability was nominal in some marks, with trim vanes and bilge pumps enabling river-crossing operations comparable to those conducted by units trained along the Yangtze River basin.

Variants expanded the baseline into roles including command vehicles, armored ambulances, reconnaissance versions, and ATGM-equipped platforms. Export-modified versions incorporated upgraded engines, improved fire control subsystems, or altered troop accommodations per user requirements, produced at factories in Qingdao and Lanzhou. Modernization initiatives produced versions with enhanced electronics, turret replacements, and improved armor packages to meet evolving threats encountered in peacekeeping deployments under United Nations mandates.

Operational History

The Type 86 entered service amid PLA force modernization drives and featured in training exercises across various military regions, demonstrating combined arms integration with artillery units such as those from the PLA Rocket Force in joint drills. Deployments in internal security and border area patrols reflected peacetime utility; export customers employed the vehicle in regional conflicts and internal operations where terrain resembled that of Southeast Asia and Central Asia. Combat reports from client states reference engagements with irregular forces and armored skirmishes analogous to clashes recorded during the Angolan Civil War and hostilities in parts of Africa.

Operational feedback influenced upgrades: crews reported good cross-country mobility but limited crew protection against contemporary anti-armor munitions, informing retrofits and training adjustments similar to post-conflict evaluations made after Operation Desert Storm by other nations.

Export and Users

The Type 86 was exported to a range of states seeking cost-effective mechanized platforms, with documented exports to countries across Africa, Asia, and the Middle East. Recipients included nations maintaining armored formations alongside older Soviet- and Chinese-origin inventories such as the Zairian Armed Forces during the late 20th century and several Southeast Asian militaries. Sales were facilitated through government-to-government agreements and defense industry channels involving Norinco and state procurement bodies.

Operators adapted the IFV to local needs, fielding variants with additional communications gear supplied by firms linked to the Ministry of National Defense of the People's Republic of China and integrating systems from suppliers in Russia and Israel on occasion. Over time, some users retired the platform in favor of newer IFVs like the BMP-3 derivatives or locally produced armored personnel carriers, while others retained upgraded Type 86 examples for secondary roles and reserve formations.
