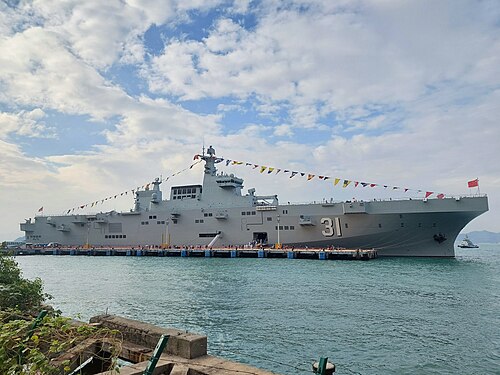

Type 075 landing helicopter dock
Generated by GPT-5-miniExpansion Funnel Raw 59 → Dedup 0 → NER 0 → Enqueued 0
| Type 075 landing helicopter dock | |
|---|---|
 建園春秋 · CC BY-SA 4.0 · source | |
| Ship name | Type 075 landing helicopter dock |
| Country | People's Republic of China |
| Builder | Hudong–Zhonghua Shipbuilding, Dalian Shipbuilding Industry Company |
| Launched | 2019–2022 |
| Commissioned | 2021–2023 |
| Role | amphibious assault ship |
| Displacement | ~40,000–45,000 tonnes |
| Length | ~237 m |
| Beam | ~36 m |
| Draft | ~7.5 m |
| Propulsion | combined diesel and diesel |
| Speed | 22–25 kn |
| Complement | ship's company + air group |
| Aircraft | Harbin Z-8/Z-20/transport and attack helicopters |
Type 075 landing helicopter dock
The Type 075 landing helicopter dock is a class of large amphibious assault ships developed for the People's Liberation Army Navy (PLAN). Designed to embark multiple helicopters, landing craft, and a marine force, the class represents a shift toward power projection and amphibious warfare capability for the People's Republic of China. Development and deployment of the class have drawn attention from regional navies such as the United States Navy, Japan Maritime Self-Defense Force, and Royal Australian Navy.
Design and development
Development began amid strategic reviews in the People's Liberation Army and planning offices within the Central Military Commission. Preliminary design work involved collaboration between China State Shipbuilding Corporation subsidiaries including Hudong–Zhonghua Shipbuilding and Dalian Shipbuilding Industry Company, with input from naval architects familiar with amphibious assault ship concepts from the Mistral-class assault ship and Wasp-class amphibious assault ship. The design trajectory responded to observed PLAN deployments of Type 071 amphibious transport dock vessels and lessons from operations by the Russian Navy and French Navy.
The hull form and island placement were iterated in model basins associated with the Dalian Shipbuilding Research Institute and reviewed by planners at the Naval Research Institute. Flight deck and well dock arrangements reflect doctrines emphasized by the PLA Ground Force's People's Liberation Army Navy Marine Corps for ship-to-shore movement, amphibious logistics, and vertical envelopment training with rotary-wing platforms such as the Harbin Z-8 and the emerging Changhe Z-8F variants. The class's emergence followed publicized launches and trials that attracted analysis from organizations like the Center for Strategic and International Studies and the International Institute for Strategic Studies.
Specifications
The Type 075 is listed with an approximate full-load displacement in open-source defense reporting at about 40,000–45,000 tonnes, a length around 230–240 metres, and a beam near 36 metres. Propulsion is reported as a diesel-electric or combined diesel arrangement enabling speeds of roughly 22–25 knots, sufficient for task group maneuvers alongside Type 052D destroyer escorts and Type 054A frigate task units. Aviation facilities include a full-length flight deck, multiple landing spots for Z-20 helicopter and Harbin Z-8 airframes, and an internal hangar capable of supporting an air group and maintenance facilities. The well deck accommodates air-cushioned landing craft and conventional landing craft, enabling embarked PLA Marine Corps units to conduct ship-to-shore operations. Command, control, communications, computers, and intelligence suites integrate with PLAN networks and with platforms such as KJ-200 airborne early warning and surface combatants for task force coordination.
Operational history
Following sea trials and fitting-out periods, early units entered PLAN service in the early 2020s and were assigned to North Sea Fleet, East Sea Fleet, and South Sea Fleet formations. The class has participated in amphibious exercises near disputed maritime features, multilateral training with elements of the Russian Pacific Fleet and Pakistan Navy for interoperability demonstrations, and humanitarian assistance/disaster relief maneuvers in coordination with civilian agencies. PLAN deployments with Type 075s have been monitored by the United States Indo-Pacific Command, Ministry of Defense (United Kingdom), and regional surveillance by the Japan Maritime Self-Defense Force and Republic of Korea Navy.
The ships have been employed in carrier strike group escort scenarios alongside Liaoning (CV-16) and Shandong (CV-17) elements during combined sea trials, showcasing integration with naval aviation and amphibious projection tactics. Analysts at the RAND Corporation and Asia Maritime Transparency Initiative have assessed operational implications for Taiwan Strait contingencies and littoral power projection.
Variants
Reported variants include baseline amphibious assault configurations and potential future modifications emphasizing aviation capability, command-and-control, or aviation-centric assault roles similar to Izumo-class helicopter destroyer refits. Design adaptations under consideration by PLAN planners could include enhanced aviation facilities for fixed-wing short take-off and vertical landing (STOVL) aircraft, alternative sensor suites, or modified well-deck arrangements to accommodate increased landing craft air cushion capacity. Export-minded proposals discussed in defense industry circles reference bespoke versions for foreign navies with altered accommodations, armament suites, and propulsion plants.
Construction and deployment
Construction was concentrated at major Chinese shipyards including Hudong–Zhonghua Shipbuilding near Shanghai and Dalian Shipbuilding Industry Company near Dalian, employing modular block construction techniques learned from prior programs such as Type 052C destroyer and Type 071 amphibious transport dock. Keel-laying, launching, and fitting-out milestones were publicly observed and reported during 2019–2022 by open-source imagery analysts and defense presses. Commissioning ceremonies followed PLAN protocols and were overseen by flag officers from the People's Liberation Army Navy and officials from provincial maritime administrations.
Deployment patterns show distribution across the PLAN's three fleet areas—North Sea Fleet, East Sea Fleet, and South Sea Fleet—to provide distributed amphibious lift and to support regional contingency response, humanitarian missions, and littoral deterrence.
Weapons and sensors
Self-defense armament on the class typically includes close-in weapon systems and short-to-medium-range surface-to-air missile launchers integrated with radar and electro-optical fire-control sensors comparable to systems fielded on contemporary PLAN surface combatants like the Type 052D destroyer. Sensor suites reportedly integrate three-dimensional air search radars, surface-search radars, electronic support measures, and navigation radars interoperable with PLAN tactical networks and airborne assets such as KJ-500 airborne early warning. Defensive systems emphasize layered point-defense to protect embarked aircraft and marines while transiting contested littoral zones.
Export and international interest
The class has stimulated interest among regional navies and defense observers, prompting comparisons with Mistral-class assault ship sales, Juan Carlos I (L61)-type programs, and domestic carriers such as Japan's Izumo-class helicopter destroyer. Potential export customers evaluated by Chinese shipbuilders in past engagements include states pursuing amphibious lift or aviation-capable platforms in Southeast Asia, South Asia, and Africa. International interest has been tempered by regional strategic calculations, interoperability concerns with platforms such as Royal Navy or United States Navy systems, and export-control considerations managed through Chinese industrial partnerships.
