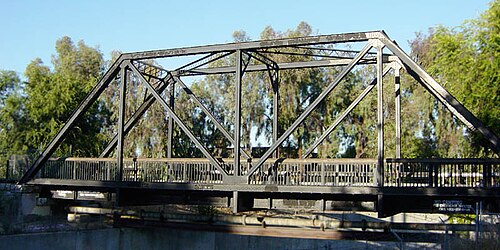

Caption	Typical through truss bridge
Carries	Roadway, railway, pedestrian
Crosses	Rivers, valleys, roads
Locale	Worldwide
Designer	Multiple engineers
Design	Truss
Material	Timber, iron, steel, reinforced concrete
Length	Varies
Mainspan	Varies
Begun	19th century
Complete	Ongoing

Truss bridges are bridges using a load-bearing framework of connected elements arranged in triangular units to distribute forces efficiently across spans. Originating in the early Industrial Revolution, truss bridges played a central role in expanding United Kingdom and United States transport networks, linked to railways, canals, and highways. Engineers from the eras of Isambard Kingdom Brunel to Gustave Eiffel and firms such as American Bridge Company developed standardized truss types that enabled long spans and rapid construction.

History

The 19th century saw rapid adoption of truss forms during the expansion of the Great Western Railway, Pennsylvania Railroad, and continental rail systems such as Chemins de fer de l'État and Deutsche Bahn predecessors. Early examples used timber in projects by builders in New England, later superseded by ironwork in workshops like Sampans Works and steel fabrications by Bethlehem Steel. Landmark developments include the shift from pinned connections promoted by designers influenced by Squire Whipple to rigid riveted and welded connections seen in infrastructure commissioned by agencies like the U.S. Army Corps of Engineers. The 20th century brought motor-vehicle focus with crossings on routes such as the Lincoln Highway and designs tested during programs by institutions like U.S. Bureau of Public Roads and research at Massachusetts Institute of Technology.

Design and components

A truss bridge's primary members—top chords, bottom chords, verticals, and diagonals—form a triangulated network that channels axial compression and tension to supports such as abutments and piers. Designers reference codes from bodies including American Association of State Highway and Transportation Officials, British Standards Institution, and Eurocode committees when sizing members, connections, and bearings. Key components also include gusset plates, connections (pin, rivet, bolt, weld), floorbeams, stringers, lateral bracing, sway braces, and deck systems that interface with approaches like those of Interstate Highway System projects. Load paths are commonly evaluated with methods standardized by organizations such as American Society of Civil Engineers and publications from Institution of Civil Engineers.

Types of truss bridges

Common configurations evolved to meet span, clearance, and construction constraints: Pratt, Warren, Howe, Bollman, Pennsylvania (Petit), K-truss, and Parker forms were adopted in projects by railroads like Union Pacific Railroad and Canadian Pacific Railway. Through, deck, and pony truss arrangements address differing clearance needs seen in crossings like those on the Mississippi River and the Saint Lawrence River. Movable variants—bascule, swing, and lift trusses—appear in navigable waterways managed by authorities such as United States Coast Guard and port administrations including Port of Rotterdam. Composite and hybrid truss solutions appear in specialized crossings designed for events like the World Expo and infrastructure programs by ministries such as Ministry of Transport (Japan).

Materials and construction methods

Early timber trusses used hardwoods in projects in Ontario and New England; wrought and cast iron enabled 19th-century advances in England and France. The transition to steel and high-strength alloys expanded achievable spans for contractors including Kaiser Steel and fabricators like Carnegie Steel Company. Modern methods employ shop-fabricated modular members, high-strength bolting, and on-site welding guided by standards from American Welding Society and testing by National Institute of Standards and Technology. Construction techniques include falsework and cantilever erection used historically on projects such as those by Illinois Central Railroad and contemporary incremental launching applied by agencies like Transport Scotland.

Structural analysis and load behavior

Truss analysis uses determinacy concepts and matrix methods developed in academic lineages tied to Massachusetts Institute of Technology, Delft University of Technology, and ETH Zurich. Engineers model axial member forces under dead, live, wind, seismic, and thermal loads as specified by codes from Eurocode, AASHTO, and national authorities like Federal Highway Administration. Buckling of compression members invokes Euler theory and imperfection sensitivity described in literature from Royal Society publications; fatigue assessment follows guidance by American Society for Testing and Materials and case studies from failures such as investigations by National Transportation Safety Board. Redundancy strategies and load-path mapping incorporate lessons from notable collapses analyzed at institutions like Imperial College London.

Notable examples and records

Historic and record-holding truss bridges include major crossings such as industry-era railroad spans over the Missouri River, multi-span crossings on the Hudson River used by New York Central Railroad, and international landmarks near Eiffel Tower-era works in Paris. Iconic truss structures feature in lists curated by bodies like Historic American Engineering Record and heritage agencies such as National Trust for Historic Preservation and English Heritage. Records for longest truss spans, highest clearance, and earliest surviving fabricated trusses are documented in archives of institutions including Smithsonian Institution and museums like the Science Museum, London.

Preservation and maintenance

Preservation efforts draw on conservation principles applied by organizations such as National Park Service, World Monuments Fund, and local trusts like Pittsburgh History & Landmarks Foundation. Maintenance practices address corrosion protection, fatigue mitigation, repainting campaigns, and bearing replacement following guidelines from Transportation Research Board and lifecycle studies at University of Illinois Urbana–Champaign. Rehabilitation projects balance historical integrity with modern loading demands in programs funded by agencies like Federal Transit Administration and executed by firms with experience documented in case histories at American Society of Civil Engineers.
