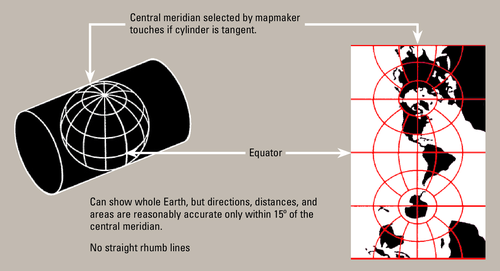

U.S. Geological Survey · Public domain · source
Name	Transverse Mercator
Type	Cylindrical conformal
Inventor	Gerardus Mercator
First date	16th century
Usage	Large-scale mapping, national grids

Transverse Mercator The Transverse Mercator projection is a conformal cylindrical map projection widely used for large-scale mapping and national grid systems; it originated from work by Gerardus Mercator and was refined by Carl Friedrich Gauss and Johann Heinrich Lambert to support precise surveying in Europe. It underpins coordinate frameworks such as the Universal Transverse Mercator system, national grids like the Ordnance Survey National Grid and the State Plane Coordinate System, and is implemented in geodetic software from organizations including National Geospatial-Intelligence Agency, Ordnance Survey (Great Britain), and EPSG authorities.

History

The projection’s genealogy traces to Gerardus Mercator’s 16th-century work on cylindrical projections, later advanced by Johann Heinrich Lambert who proposed conformal cylindrical forms and by Carl Friedrich Gauss whose 19th-century geodetic research produced the Transverse Mercator formulation used in modern surveying, influencing cartographic institutions such as the Royal Geographical Society and the Bureau des Longitudes. Developments in the 19th and 20th centuries by surveyors in Prussia, Great Britain, and the United States led to adoption in national mapping agencies including the Ordnance Survey (Great Britain), the United States Geological Survey, and the Institut Géographique National (France). The 20th century saw standardization efforts by bodies such as the International Association of Geodesy and the International Hydrographic Organization, culminating in the creation of the Universal Transverse Mercator grid and EPSG registry entries used by contemporary geospatial firms like Esri and research groups at ETH Zurich.

Mathematical definition

The Transverse Mercator is defined by mapping latitude and longitude on an ellipsoid (e.g., WGS 84, GRS 80, Clarke 1866) to planar coordinates through complex analytic functions derived from conformal transformations developed by Carl Friedrich Gauss and expressed with series expansions used in modern geodesy by researchers at National Institute of Standards and Technology and mathematicians influenced by Adrien-Marie Legendre. Exact formulations use ellipsoidal parameters such as semi-major axis and flattening from datums like NAD83 and involve meridian convergence and scale factor computations employed in algorithms by John P. Snyder and implemented in libraries from PROJ and GEOTRANS. Practical implementations rely on truncated Taylor or Krüger series, Newton–Raphson iterations, and closed-form expressions that appear in publications from International Association of Geodesy symposia and technical manuals by U.S. Army Corps of Engineers.

Projection properties and distortions

As a conformal projection promoted by theorists including Gauss and Lambert, the Transverse Mercator preserves local angles and shapes near points, a property valued by surveyors from Ordnance Survey (Great Britain) and military cartographers at the Royal Engineers. Distortion increases with distance from the central meridian, producing scale errors quantified in standards from ISO and distortion analyses performed in academic journals at University of Cambridge and Massachusetts Institute of Technology. Distortion characteristics determine zone widths in coordinate systems set by authorities such as USGS and European Petroleum Survey Group to limit scale variation, and are evaluated using geodetic techniques taught at institutions like Delft University of Technology.

Implementation and variants

Implementations include the Gauss–Krüger variant used in continental systems of Germany and Russia, the Universal Transverse Mercator used by NATO and civilian mapping agencies, and specialized adaptations for grids such as the British National Grid and the Netherlands RD system. Software implementations by projects like PROJ, commercial suites from Esri, and government tools from National Geospatial-Intelligence Agency use algorithmic variants described by John P. Snyder and standardized in EPSG codes maintained by OGC and ISO. High-precision geodetic implementations incorporate ellipsoids from datums such as WGS 84, NAD27, and ED50, and account for datum transformations involving agencies like European Space Agency and NASA.

Usage in mapping and geodesy

Surveying agencies such as the Ordnance Survey (Great Britain), USGS, Geoscience Australia, and national mapping organizations in Canada and France employ the Transverse Mercator for national grids, cadastral mapping, and topographic charts used by emergency services and infrastructure planners documented by ministries like UK Department for Transport and U.S. Department of the Interior. Navigation systems in platforms developed by Garmin and TomTom and military geospatial intelligence workflows at NGA rely on Transverse Mercator-based grids for coordinate exchange, while scientific research groups at Scripps Institution of Oceanography and Lamont–Doherty Earth Observatory use its properties for regional geodetic analysis.

Coordinate systems and datums

Coordinate systems using the Transverse Mercator projection are defined with parameters tied to datums such as WGS 84, NAD83, ED50, and national realizations maintained by agencies like Ordnance Survey (Great Britain) and Institut Géographique National (France). Systems include the Universal Transverse Mercator zones, country-level grids like the British National Grid and the German Gauss–Krüger zones, and state plane zones managed by National Geodetic Survey; all require clear definitions of false easting, false northing, scale factor, central meridian, and ellipsoid parameters published by bodies such as EPSG and enforced in standards by OGC.
