Token Ring

Token Ring
Andrew28913 · CC BY-SA 3.0 · source
Name	Token Ring
Developer	IBM; IEEE
Introduction	1980s
Type	Local area network
Physical media	Twisted pair, coaxial, fiber optic
Topology	Ring (logical)
Standard	IEEE 802.5
Status	Obsolete

Token Ring is a local area network method created for deterministic access control in shared media. It was standardized by IEEE as IEEE 802.5 and popularized by IBM for enterprise installations, competing with technologies from Digital Equipment Corporation, Hewlett-Packard, 3Com, and Novell. Early deployments linked offices, data centers, and mainframe adjuncts within campuses such as those of General Electric, AT&T, and Bank of America.

History

IBM introduced its implementation in the early 1980s following internal networking work that intersected with research at MIT, Stanford University, and corporate labs in Hawthorne, New York. The IEEE 802 working group produced IEEE 802.5 to codify the protocol, drawing participants from IBM, DEC, Xerox, and Intel. Adoption rose in the 1980s and early 1990s among enterprises using SNA environments, while contemporaneous technologies like Ethernet (IEEE 802.3) and proprietary systems from Digital Equipment Corporation and Network General influenced market competition. Standards revisions and vendors such as Cisco Systems and Bay Networks extended interoperability before wide deployment declined amid the rise of switched Ethernet and TCP/IP-centric infrastructures used by institutions like NASA and Microsoft.

Technology and Operation

Token Ring implements a controlled medium access mechanism where a small control frame—called a token—circulates among stations, allowing only the token holder to transmit. The mechanism parallels access arbitration concepts used in ARCNET and contrasts with the CSMA/CD method used in Ethernet (IEEE 802.3). Logical ring operation could be realized over physical star wiring via concentrators and multiport devices from vendors including IBM, 3Com, Proteon, and Cabletron Systems. Interoperability required adherence to timing, token rotation, and priority rules specified in IEEE 802.5 and related documents drafted by contributors from Xerox and DEC.

Frame and Protocol Details

Frames use fields for start delimiter, access control, frame control, destination and source addresses, data, and frame check sequence; these conventions align with addressing practices found in OSI model implementations and in competition with Ethernet II framing. Priority and reservation bits in the access control permit traffic class handling and expedited access, reflecting service paradigms akin to those discussed in ITU-T recommendations. Addressing used 48-bit MAC identifiers assigned by manufacturers such as Cisco Systems, Intel, National Semiconductor, and Motorola, paralleling address schemes in devices from Sun Microsystems and Digital Equipment Corporation.

Hardware and Topology

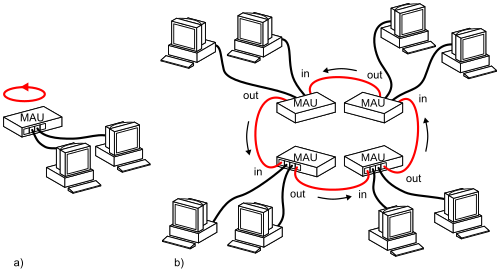

Physical implementations ranged from shielded twisted pair and coaxial cable to fiber-optic links produced by vendors like Corning Incorporated and 3M. Topologies included physical ring, physical star with a centralized Multistation Access Unit (MAU), and hybrid campus rings connecting buildings over fiber provided by Lucent Technologies and Nortel Networks. Interface cards and adapters were produced by IBM, Intel, DEC, Hewlett-Packard, and third parties such as Novell-certified vendors. Diagnostic tools and analyzers from Network General and FLUKE Corporation aided fault isolation in complex installations that integrated with mainframe access concentrators and gateway devices from Cisco Systems and Bay Networks.

Performance and Comparison

Token Ring offered deterministic access useful for latency-sensitive workloads in environments operated by Bank of America, General Motors, and Boeing, with guaranteed maximum token rotation intervals compared to contention-based Ethernet (IEEE 802.3). However, raw throughput and cost-per-port favored rapidly evolving switched Ethernet solutions from Cisco Systems and 3Com. Performance engineering literature from Bell Labs and MIT Lincoln Laboratory contrasted Token Ring’s bounded-access latency with Ethernet’s probabilistic collision behavior, while benchmarks from PC Magazine and vendor whitepapers compared frame efficiency, token overhead, and priority handling under load.

Implementation and Usage

Enterprises deployed Token Ring for office automation, workgroup connectivity, and distributed terminal access, integrating with stacks such as SNA and Novell NetWare as well as early TCP/IP networks in transitional environments at organizations like IBM and Xerox. Network management systems from HP and IBM Tivoli supported Token Ring monitoring alongside other protocols. Academic campuses and government agencies that had invested in DECnet or SNA sometimes maintained Token Ring segments into the late 1990s, with bridging and routing performed by gear from Cisco Systems, Bay Networks, and Foundry Networks.

Decline and Legacy

The decline accelerated as switched Ethernet reached higher speeds, lowered costs, and simplified cabling, driven by chipsets from Intel and switching fabric advances at Cisco Systems and Broadcom. Standards convergence around TCP/IP and carrier-class Ethernet led to migration away from Token Ring in enterprises such as Ford Motor Company and Walmart during network refresh cycles. Nonetheless, Token Ring influenced deterministic access research, MAC-layer design, and quality-of-service concepts adopted in later standards by IEEE and work at organizations like IETF, leaving a heritage visible in modern switched and real-time networking technologies.

Category:Local area networks
