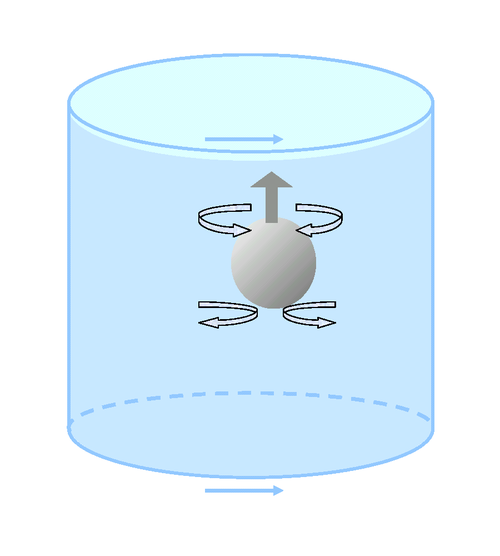

Caption	Columnar vortices aligned with rotation axis in rotating fluid
Field	Fluid dynamics, Geophysics, Astrophysics
Discoverer	Geoffrey Ingram Taylor
Year discovered	1923

Taylor columns Taylor columns are coherent, quasi-two-dimensional columnar flow structures that form in rapidly rotating fluids when an obstacle or topography constrains motion. They arise from the interplay of Coriolis forces associated with planetary rotation and pressure gradients, producing flow that is nearly invariant along the rotation axis over scales large compared with the Rossby radius. Taylor columns play a central role in interpreting laboratory experiments, oceanographic circulations, planetary atmospheres, and planetary core dynamics.

Introduction

Taylor columns were first described by Geoffrey Ingram Taylor in work motivated by problems in World War I acoustics and later idealized in rotating-tank experiments and theoretical analyses. The phenomenon links classical studies by Lord Kelvin on vortex motion, concepts developed by V. Walfrid Ekman for boundary layers, and quasi-geostrophic theory associated with Carl-Gustaf Rossby. Taylor columns are invoked in discussions of flow past seamounts in the Atlantic Ocean, circulation over ridges in the Southern Ocean, and fluid behavior in planetary interiors such as Jupiter and the Earth core.

Physical mechanism

The essential mechanism is the dominance of the Coriolis acceleration f = 2Ω, where Ω is the rotation rate of a body such as Earth or Jupiter, over inertial and viscous forces. In the rotating frame, conservation of potential vorticity constrains horizontal motion: vertical shear is suppressed, producing columnar structures aligned with the rotation axis similar to the Taylor–Proudman constraint first articulated by Joseph Proudman and Geoffrey Ingram Taylor. When steady flow encounters an obstacle, fluid parcels cannot easily move vertically and instead are diverted laterally, generating a block-like column of perturbed fluid above and below the obstacle, analogous to blocking in atmospheric dynamics associated with synoptic-scale ridges such as those studied around Greenland. Viscous and boundary-layer processes, particularly Ekman pumping tied to Ekman layer dynamics, allow limited vertical exchange and determine the column’s cross-section and decay.

Mathematical formulation

The classic approximation begins with the incompressible Navier–Stokes equations in a rotating frame with angular velocity Ω and neglects buoyancy and stratification. In the limit of small Rossby number Ro = U/(ΩL) and modest Ekman number E = ν/(ΩL^2), the leading-order balance yields the Taylor–Proudman theorem: ∂u/∂z ≈ 0 for velocity u. Linearized formulations use the vorticity equation ∂ζ/∂t + U·∇ζ = f∂w/∂z + ν∇^2ζ, where ζ is vertical vorticity and w vertical velocity; matched asymptotic expansions couple interior geostrophic flow to Ekman layers described by solutions attributed to V. Walfrid Ekman. For stratified fluids, the quasi-geostrophic potential vorticity equation introduced by Carl-Gustaf Rossby and developed by John von Neumann and others includes effects of buoyancy frequency N and leads to column modification through baroclinic modes studied in the context of the Quasi-geostrophic theory.

Laboratory and numerical experiments

Rotating-tank experiments by Geoffrey Ingram Taylor, F. H. Busse, and later groups at institutions such as Scripps Institution of Oceanography and Woods Hole Oceanographic Institution demonstrated columns over topography like cylinders and cones. Visualization methods include dye tracers, particle image velocimetry pioneered by researchers at Princeton University and MIT, and synthetic schlieren techniques. Numerical simulations using spectral codes by groups at Princeton University, NCAR and Cambridge University reproduced column formation in the Boussinesq approximation, while direct numerical simulations and large-eddy simulations by teams associated with NASA and the European Centre for Medium-Range Weather Forecasts examined nonlinear interactions, turbulence, and stratification effects.

Geophysical and astrophysical examples

Taylor-column-like behavior appears in oceanographic flows over seamounts and mid-ocean ridges such as the Mid-Atlantic Ridge and the Juan de Fuca Ridge, affecting nutrient fluxes and biological hotspots documented near the Galápagos Islands and Hawaii. In planetary settings, columnar convection is implicated in models of the Earth’s outer core dynamo studied at Geophysical Fluid Dynamics Laboratory and in rotating convection simulations for Jupiter and Saturn explaining zonal jets and magnetic field generation investigated by teams at Max Planck Institute for Solar System Research. In atmosphere and climate contexts, analogues appear in rotating annulus experiments linked to studies by Edward N. Lorenz and in flow features over Antarctic topography influencing the Southern Annular Mode.

Observational evidence and diagnostics

Evidence for Taylor-column effects derives from hydrographic surveys, acoustic Doppler current profiler measurements during expeditions organized by Woods Hole Oceanographic Institution and Lamont–Doherty Earth Observatory, and from satellite altimetry missions such as TOPEX/Poseidon and Jason-1 that reveal mesoscale flow anomalies aligned with seafloor features. In planetary interiors, inferences come from geomagnetic secular variation measured by observatories like USGS and space missions including MESSENGER and Juno, which inform inversion models constrained by Taylor-column-influenced flow hypotheses. Diagnostics include coherence of velocity profiles along the rotation axis, comparisons of observed Rossby numbers with theoretical thresholds, and spectral signatures identified via modal decomposition techniques developed at Courant Institute and Imperial College London.

Limitations and extensions

The ideal Taylor-column picture breaks down when Ro is not small, when stratification is strong (high buoyancy frequency N), or when magnetic fields introduce Lorentz forces as in magnetohydrodynamic studies led at Los Alamos National Laboratory and Princeton Plasma Physics Laboratory. Topographic complexity, nonlinear vortex shedding, and transient forcing produce deviations captured by extensions such as viscous boundary-layer theory, multi-layer quasi-geostrophic models developed by Henry Stommel and Walter Munk, and magnetostrophic balance considered in dynamo theory by Gilbert and Larmor-inspired analyses. Ongoing research at institutions including Caltech and ETH Zurich explores transitions between columnar and three-dimensional turbulence, the role of stratified shear instabilities, and parameter regimes relevant to exoplanetary atmospheres investigated by groups at Harvard University and University of California, Berkeley.
