Storm Shadow

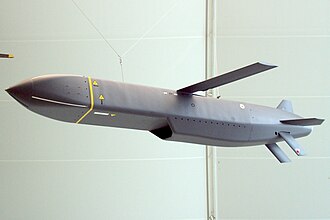

Storm Shadow
Rept0n1x · CC BY-SA 3.0 · source
Name	Storm Shadow
Origin	United Kingdom
Type	Cruise missile
Manufacturer	MBDA
Design date	1990s
Production date	2002–present
Weight	1,300 kg (approx.)
Length	5.1 m
Diameter	0.48 m
Wingspan	3.1 m
Filling	High-explosive or thermobaric weapon warhead
Guidance	Inertial navigation system with GPS/GLONASS and terrain profile matching
Propellant	Jet fuel
Engine	turbofan
Vehicle range	250–560 km (depending on version and export restrictions)

Storm Shadow is a long-range, air-launched cruise missile developed in the late 1990s and fielded in the early 2000s for precision deep-strike missions. It was produced by MBDA through a collaboration involving BAe Systems and other European defense firms to provide stand-off capability for platforms such as the Tornado IDS and later multirole fighters. The weapon is intended for high-value fixed targets, employing stealthy shaping, terrain-following flight, and an advanced guidance package to defeat hardened shelters and integrated air defenses.

Development and Design

Development began as part of a multinational effort motivated by lessons from the Gulf War (1990–1991), where demand for standoff munitions led to programs in France, United Kingdom, and Italy. Industrial partners included MBDA, BAe Systems, and the DGA in France; political oversight involved the defense ministries of the UK, France, and Italy. The program leveraged experience from earlier projects such as the Apache Longbow integration efforts and concepts evaluated after the Kosovo War. Emphasis was placed on survivability against systems like the S-300 and S-400 integrated air-defense networks, and on penetrating hardened targets associated with facilities similar to those struck in operations like Operation Desert Fox.

Design work fused aerodynamic shaping influenced by stealth research at laboratories linked to Defence Research Agency predecessors and turbofan propulsion adapted from civil derivatives. The warhead selection process considered effects required against targets catalogued during joint exercises with NATO partners, and sensor suites were calibrated against data from reconnaissance platforms including Troop reconnaissance assets and imagery from satellites such as those used by ESA-partner programs.

Technical Description

Storm Shadow uses a low-observable airframe with pop-out wings and a detachable engine inlet to reduce radar cross-section during cruise. The missile employs a turbofan engine providing subsonic cruise at very low altitude, using a combination of INS and satellite navigation (GPS/GLONASS) coupled with radar and optical scene-matching systems derived from programs like TERPROM and electro-optical trackers fielded with assets such as Eurofighter Typhoon targeting pods. An onboard missile computer stores digital terrain elevation data to enable terrain-following flight profiles used in approaches against high-value targets reminiscent of hardened command bunkers seen in scenarios involving Iraq and Syria.

Guidance and seekers enable automatic target recognition and re-attack capabilities with a warhead option of a high-explosive penetration charge or a unitary thermobaric option for complex urban structures. The missile's submunitions and fuze designs were tested in military ranges associated with DGA and QinetiQ trials. Integration kits allow carriage on aircraft pylons and interface with mission planning systems used by platforms such as the Panavia Tornado, Dassault Rafale, and Eurofighter Typhoon.

Operational History

Storm Shadow first entered service with the Royal Air Force and French Air Force in the early 2000s and has been employed in several conflicts. Notable deployments include strikes during operations over Iraq in the 2003 invasion and subsequent campaigns, missions in Libya during Operation Unified Protector where coalition assets coordinated strikes against regime targets, and strikes against high-value objectives in operations over Syria and Iraq targeting insurgent leadership infrastructure. The weapon has been used by air arms of nations engaged in coalitions coordinated through NATO command elements or ad hoc task forces.

Operational evaluations highlighted the missile's ability to engage deeply buried targets and to operate in contested environments with integrated suppression of enemy air defenses (SEAD) tasks provided by platforms equipped with systems like the SPEAR family or electronic-warfare assets. Losses and controversies regarding collateral damage prompted changes in rules of engagement and target-approval processes in operators such as the Royal Air Force and export customers, and led to iterative improvements in targeting software and battle damage assessment workflows employed by coalition intelligence centers.

Variants and Upgrades

Several variants and upgrade paths exist, including an export-restricted baseline and extended-range versions developed to meet requirements similar to those driving the SCALP EG program. Upgrades encompassed improved guidance with anti-jamming features compatible with newer GPS modernization signals and alternative navigation modes referencing GALILEO for European users. Warhead options expanded to include different penetration and blast profiles tested in collaboration with national test ranges like those used by DGA and QinetiQ. Integration packages were developed for newer platforms including the Dassault Rafale, Eurofighter Typhoon, and potential retrofit packages for legacy fleets such as the Panavia Tornado.

Ongoing modernization programs by MBDA addressed networked targeting interfaces, secure datalink upgrades for in-flight retargeting similar to concepts evaluated with NATO collaborative frameworks, and adaptations to comply with export control regimes coordinated among governments such as the United Kingdom and France.

Export and International Operators

Storm Shadow has been exported to a number of allied air forces under bilateral agreements with producing nations. Primary operators include the Royal Air Force, the Armée de l'air (France), and the Italian Air Force, with further sales to countries seeking long-range precision strike capability. Export approvals have been coordinated through intergovernmental arrangements reflecting concerns over range and payload, with destination states required to integrate the system with approved platforms like the Panavia Tornado, Dassault Rafale, and multirole fighters in inventories such as those of Greece, United Arab Emirates, and other partners. International use in coalition operations often involved combined mission planning conducted through NATO or coalition headquarters and adherence to national rules of engagement and export-control commitments.
