Soyuz-2 (rocket family)

Soyuz-2 (rocket family)
source
Name	Soyuz-2

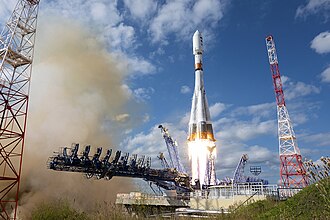

Caption	Soyuz-2.1a on the launch pad
Country	Russia
Manufacturer	Progress Rocket Space Centre
Family	R-7
Status	Active
First	2004-11-08
Mass	~308000 kg (Soyuz-2.1b)
Payload low	~8200 kg to LEO

Soyuz-2 (rocket family) is a modernized series of expendable launch vehicles derived from the R-7 R-7 lineage, developed by the Progress Rocket Space Centre and used by Roscosmos and commercial operators to deliver crewed spacecraft, satellites, and interplanetary probes. The family integrates digital avionics, uprated engines, and variants designed for multiple Baikonur, Plesetsk, Vostochny, and Guiana Space Centre launch sites, supporting missions for agencies such as Roscosmos, European Space Agency, Roscosmos State Corporation, Glonass, and commercial providers.

Overview and Development

Development of the modernized series built on experience from the Soyuz and Molniya designs, with project management by the Russian Space Agency and engineering by TsSKB-Progress and KB Progress. Initial conceptual work reflected lessons from the Mir program, International Space Station, and early GLONASS launches; the program advanced following directives in the post-Soviet aerospace reorganization involving Roskosmos and the consolidation of firms under the United Rocket and Space Corporation. Early flights used integration practices refined during Proton modernization and collaboration with partners like Arianespace for export variants, while safety upgrades responded to findings from mishaps involving heritage vehicles such as the Soyuz-U and Soyuz-FG.

Design and Technical Specifications

The family retains the R-7's core stage architecture: four strap-on boosters, a central core, and an upper stage, produced at facilities historically associated with Khimik and assembled by Progress Rocket Space Centre and TsSKB-Progress. Digital flight control systems replaced analog avionics similar to systems used on Angara prototypes, enhancing navigation referencing GLONASS and inertial units akin to those developed for Proton-M. Engines include RD-108A and RD-118 derivatives on boosters and core, with the third stage employing the RD-0124 on Soyuz-2.1b comparable to engines used in Soyuz-2-1v adaptations; propellants are kerosene and liquid oxygen as in many R-7 vehicles. Telemetry, range safety, and ground support systems interface with infrastructure at TsENKI centers and flight control at MCC Korolyov, while payload fairings accommodate satellites for Eutelsat, OneWeb, and national programs.

Variants and Upgrades

Main variants include Soyuz-2.1a, Soyuz-2.1b, and Soyuz-2.1v (light variant), reflecting incremental upgrades similar to variant strategies used in Atlas V and Falcon 9 families. Soyuz-2.1a introduced digital avionics and engine modifications paralleling modernizations seen in the Delta II lineage; Soyuz-2.1b added the high-performance RD-0124 third stage, improving performance analogous to upgrades on H-IIA; Soyuz-2.1v removed boosters for light-payload missions, echoing design choices from Zenit and Dnepr adaptations. Hybrid configurations for Soyuz-ST launches at Guiana Space Centre incorporated a restartable Fregat upper stage, enabling missions for Galileo and geostationary satellites, and were supported by European integration agreements with Arianespace.

Launch History and Notable Missions

Since the maiden flight in 2004, the family has supported crewed launches to the International Space Station, cargo missions like Progress resupply flights, and satellite deployments for GLONASS, Eutelsat, O3b, and commercial constellations such as OneWeb. Notable missions include flights carrying modules and crew elements tied to Soyuz crew transports, deployments of scientific payloads similar to those of the Luna and Mars probe programs, and commercial launches facilitated under contracts with Arianespace and commercial operators from Brazil and India for polar and equatorial orbits. The family also launched military payloads for organizations like the Russian Aerospace Forces and civil satellites for Roscosmos subsidiaries.

Manufacturing, Launch Sites, and Operations

Manufacturing involves historical facilities in Samara, Omsk, and Kaluga Oblast associated with core stage production, with final assembly at integration complexes at Baikonur Cosmodrome, Plesetsk Cosmodrome, Vostochny Cosmodrome, and the Guiana Space Centre site adapted for the family. Launch operations engage range services managed by TsENKI and flight control coordinated with MCC Korolyov, while supply chains include vendors formerly part of the Soviet NPO Energomash ecosystem and contemporary contractors supplying avionics and ground systems used on Angara and Proton-M programs. International coordination for Kourou operations involved agreements with the European Space Agency and French Guiana authorities.

Performance, Reliability, and Incidents

The family achieves payload capacities competitive with vehicles like Ariane 5 (for certain classes) and demonstrates performance improvements over Soyuz-U metrics due to the RD-0124 engine and digital guidance akin to modernized H-II avionics. Reliability has been generally high, echoing the R-7 heritage, though the program experienced anomalies prompting investigations by commissions involving Roscosmos and manufacturers comparable to inquiries following Proton-M failures. Incidents have informed iterative design fixes and operational changes, with safety oversight involving agencies such as Rostekhnadzor when mishaps occurred.

International Use and Export Customers

Export and international customers include Arianespace for flights from the Guiana Space Centre, commercial satellite operators like Eutelsat, OneWeb, and O3b Networks, and national customers in Kazakhstan, India, Brazil, and France for polar and equatorial launches. Partnerships extended to cooperative missions with the European Space Agency and payload integration for multinational projects similar to arrangements seen with International Space Station partners. The family remains a key export product in Russia’s space portfolio alongside vehicles such as Proton-M and Angara.
