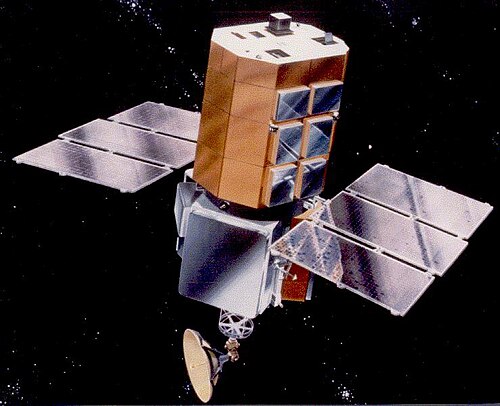

Solar Maximum Mission

Solar Maximum Mission
NASA Marshall Space Flight Center (NASA-MSFC) · Public domain · source
Name	Solar Maximum Mission
Acronym	SMM
Operator	National Aeronautics and Space Administration (NASA)
Launch date	1980-02-14
Launch vehicle	Delta 2914
Launch site	Vandenberg Air Force Base
Mass	359 kg
Orbit	Low Earth orbit
Perigee	513 km
Apogee	518 km
Inclination	37.6°

Solar Maximum Mission

The Solar Maximum Mission was a NASA spacecraft launched in 1980 to study solar activity during the peak of the Solar cycle. It carried instruments designed to observe solar flares, coronal mass ejections, and the solar atmosphere across multiple wavelengths. Supported by teams from the Goddard Space Flight Center, Lockheed Corporation, and multiple university groups, the mission combined imaging, spectroscopy, and particle detection to advance understanding of transient phenomena on the Sun.

Background and Development

Development began in the 1970s amid renewed interest in understanding the 11-year solar cycle and its impact on space weather observed by missions like Helios and Skylab. The program drew on heritage from projects such as Orbiting Solar Observatory and technologies demonstrated by the Atmospheric Explorer. The project involved collaborations between NASA, the High Altitude Observatory, the University of California, Berkeley, and the Center for Astrophysics Harvard & Smithsonian, with component contracts awarded to aerospace firms including Lockheed Martin and instrument builders from Stanford University and Cleveland Clinic research groups. Budgetary debates in the United States Congress and technical reviews by the National Research Council shaped the mission scope and payload selection.

Spacecraft Design and Instruments

The spacecraft bus was designed and built by Lockheed with guidance from the Goddard Space Flight Center. It carried a complement of instruments: the Coronagraph/Polarimeter for coronal studies, an X-ray Polychromator for flare spectroscopy, the Hard X-ray Imaging Spectrometer, the Ultraviolet Spectrometer, and an EUV Imaging Telescope. Principal investigators hailed from institutions such as University of California, Berkeley, Stanford University, Massachusetts Institute of Technology, and the University of Colorado Boulder. The imaging suite included a Flat Crystal Spectrometer derived from laboratory designs used at the Culham Centre for Fusion Energy and detector technology influenced by advances at Bell Labs and the Jet Propulsion Laboratory. Power, attitude control, and telemetry used components comparable to those on contemporary missions like International Ultraviolet Explorer.

Mission Operations and Timeline

Launched aboard a Delta 2914 from Vandenberg on 14 February 1980, the spacecraft entered a low Earth orbit and began routine observations during the rise toward solar maximum. Operations were coordinated by NASA flight controllers at the Goddard Space Flight Center with science planning involving teams at the High Altitude Observatory, the Solar Physics Division of the American Astronomical Society, and university partners. Early operations produced high-cadence data on active regions catalogued in coordination with the National Oceanic and Atmospheric Administration solar monitoring efforts. In late 1980, an attitude-control anomaly limited full pointing, prompting engineering analyses by teams from Lockheed Martin and the Jet Propulsion Laboratory. Continued data returned through 1981 and 1982 documented numerous flares contemporaneous with observations from GOES (satellite), ISEE-3, and ground observatories such as Mauna Loa Solar Observatory.

Recovery and Repair Mission

In 1984, following degraded pointing capability, NASA executed an unprecedented recovery mission using the Space Shuttle fleet. Astronauts aboard STS-41C captured the spacecraft using the shuttle's Remote Manipulator System operated by crew from the Johnson Space Center and Marshall Space Flight Center teams. The repair involved replacing a failed attitude control mechanism and restoring instrument functions, with extravehicular activities supported by procedures developed at the Neutral Buoyancy Laboratory and training at Kennedy Space Center. The repaired spacecraft was redeployed and continued operations, marking a landmark collaboration between robotic and human spaceflight exemplified by the Space Shuttle Challenger program crews and mission specialists trained in satellite servicing.

Scientific Results and Discoveries

Post-repair observations produced high-resolution spectroscopy and imaging that refined models of flare energy release and chromospheric evaporation first posited in work at the Harvard-Smithsonian Center for Astrophysics and University of Cambridge solar groups. The X-ray Polychromator data quantified temperature and density evolution in flare loops, supporting theoretical frameworks developed by researchers at Princeton University and University of Chicago. Coronagraph measurements provided insights into coronal mass ejection kinematics, corroborating in situ particle detections from ISEE-3 and influencing models from the Max Planck Institute for Solar System Research. Studies published by teams involving California Institute of Technology and University of Hawaii clarified the role of magnetic reconnection in eruptive events, connecting observations to laboratory plasma experiments at Los Alamos National Laboratory.

Legacy and Impact on Solar Physics

The mission influenced subsequent missions and facilities including Yohkoh, SOHO, Hinode, and the Solar Dynamics Observatory, and informed operational forecasting efforts at NOAA. Its successful on-orbit repair demonstrated the feasibility of spacecraft servicing, shaping policies at the National Aeronautics and Space Administration and design approaches at aerospace contractors such as Boeing and Northrop Grumman. Data archives at the National Space Science Data Center and continuity with ground networks like Global Oscillation Network Group ensured long-term availability for research by institutions including Cornell University and University College London. The mission's combined technological and scientific achievements remain cited in reviews by the American Geophysical Union and the Royal Astronomical Society as pivotal in advancing understanding of transient solar phenomena.
