Session Initiation Protocol

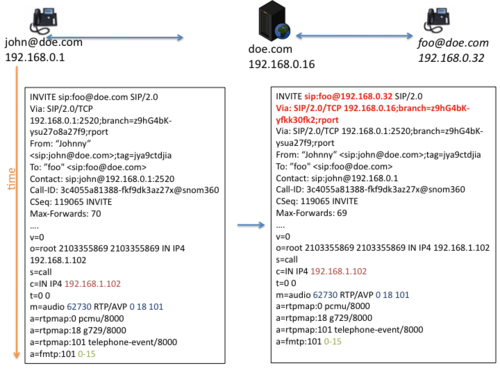

Session Initiation Protocol
Bbutscher · CC BY-SA 3.0 · source
Name	Session Initiation Protocol
Developer	Internet Engineering Task Force
Released	1996
Latest release	RFC 3261 et seq.
Programming languages	C, C++, Java, Python, Erlang
Operating system	Cross-platform
License	IETF standards / various open-source licenses

Session Initiation Protocol

Session Initiation Protocol is a signaling protocol for initiating, maintaining, modifying, and terminating real-time multimedia sessions such as voice, video, and messaging. It is specified in a suite of documents originating from the Internet Engineering Task Force and interacts with protocols and systems including RTP, SDP, and DNS. SIP is widely used in telecommunications, unified communications, Voice over IP deployments, and conferencing infrastructures.

Overview

SIP operates as a text-based request-response protocol modeled after protocols like Hypertext Transfer Protocol, Simple Mail Transfer Protocol, and Post Office Protocol 3. It enables endpoints such as IP telephony devices, softphones from vendors like Cisco Systems and Avaya, and multimedia applications from Microsoft and Skype to discover peers and negotiate session parameters. SIP messages carry session descriptions typically encoded with Session Description Protocol as defined by authors associated with the Internet Engineering Task Force and influenced by research from institutions such as Bell Labs and Xerox PARC. SIP’s design allows integration with addressing systems like the Domain Name System and directory services such as Lightweight Directory Access Protocol implementations.

History and Development

SIP was introduced in the mid-1990s by researchers at institutions including Mitel, Bell Labs, and academics who published early drafts within the IETF community. The protocol evolved through a series of IETF working groups and key documents culminating in a core specification authored under editorial stewardship of contributors like Henning Schulzrinne tied to the Columbia University research milieu and collaborators linked to AT&T research. Commercial adoption accelerated with standards bodies such as the European Telecommunications Standards Institute incorporating SIP into IP telephony frameworks developed by carriers including Verizon and BT Group. Over time, extensions were standardized addressing interoperability challenges encountered by vendors including Alcatel-Lucent, Siemens, and software projects hosted by Mozilla and Google.

Protocol Architecture and Components

SIP’s architecture distinguishes user agent clients and servers, proxy servers, redirect servers, and registrars—roles implemented by products from Asterisk (PBX), FreeSWITCH, and proprietary platforms developed by Avaya and Ericsson. Core identifiers include Uniform Resource Identifiers patterned after schemes used by World Wide Web Consortium specifications and interoperate with addressing managed by Internet Assigned Numbers Authority. SIP messages are transported over reliable and unreliable transports such as TCP, UDP, and TLS, leveraging cryptographic mechanisms standardized in documents authored by contributors affiliated with RSA Security and IETF TLS Working Group. Media streams negotiated via SIP commonly use RTP as defined by contributors associated with Cisco Systems and standards editors from Packet Video initiatives.

Message Types and Methods

SIP defines request methods including INVITE, ACK, BYE, CANCEL, OPTIONS, REGISTER, and INFO, concepts refined through input from telephony operators like AT&T and NTT Communications. Responses use three-digit status codes similar in concept to codes from Hypertext Transfer Protocol history, categorized into classes such as provisional, success, redirection, client error, server error, and global failure; these classes reflect design principles discussed in IETF meetings and whitepapers from entities like IAB. Method semantics underpin call features implemented in systems by Siemens Enterprise Communications and conferencing solutions integrated by vendors such as Polycom.

Signaling, Call Flow, and Examples

Common call flows demonstrate interaction among user agents, proxies, and registrars—examples referenced in educational materials from Columbia University and training resources produced by IEEE Communications Society. Typical INVITE-180/200-ACK-BYE sequences illustrate session establishment and teardown; middleware platforms from Oracle Communications and open-source projects like Kamailio demonstrate these flows in production. Advanced scenarios include forking proxies used by carriers such as Orange S.A. and call transfer features specified in SIP extensions advocated by working groups within the IETF.

Security and Authentication

SIP security encompasses transport-layer protections (TLS), message integrity and authentication (Digest, S/MIME), and network-level controls influenced by practices from Cisco Systems security teams and recommendations published by the IETF Security Area. Authentication mechanisms include HTTP Digest authentication derived from work by authors connected to Netscape Communications history, while identity and trust frameworks leverage certificates managed by certificate authorities such as DigiCert and protocols influenced by Public Key Infrastructure deployments spearheaded by industry consortia. Threats mitigated include toll fraud, SIP-based denial-of-service, and eavesdropping—topics examined in publications from SANS Institute and CERT Coordination Center.

Implementations, Extensions, and Interoperability

A rich ecosystem implements SIP: open-source projects like Asterisk, FreeSWITCH, Kamailio, and OpenSIPS coexist with commercial products from Cisco, Avaya, Ericsson, and Microsoft. Extensions standardized by the IETF—covering event notification, presence, call transfer, and instant messaging—are implemented variably by vendors and projects such as XMPP-integrated gateways and conferencing suites from Zoom Video Communications and Cisco Webex. Interoperability efforts involve test events organized by industry groups including the European Telecommunications Standards Institute plugtests and carrier interoperability trials run by operators like Deutsche Telekom and T-Mobile. Challenges remain around NAT traversal addressed by complementary protocols developed by authors linked to IETF STUN/TURN/ICE Working Groups.
