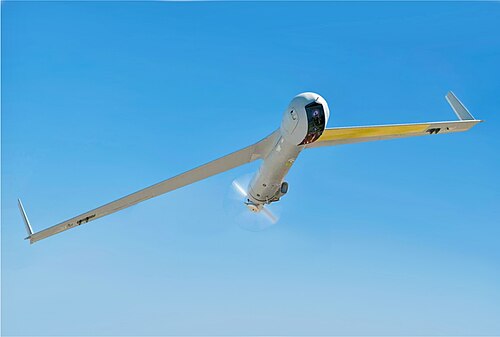

ScanEagle

ScanEagle
U.S. Navy photo /Released · Public domain · source
Name	ScanEagle
Caption	ScanEagle launching from a pneumatic catapult aboard a vessel
Manufacturer	Insitu
First flight	2002
Role	Unmanned reconnaissance
Status	In service

ScanEagle is a long-endurance, low-observable unmanned aerial vehicle developed for maritime and overland reconnaissance by Insitu, a subsidiary of Boeing. Designed for intelligence, surveillance, and reconnaissance missions, it has been employed by numerous armed forces, intelligence agencies, and civil organizations worldwide, supporting operations from littoral zones to landlocked theaters. The platform emphasizes shipboard launch and recovery, integrating with carrier systems and expeditionary units.

Development and Design

The platform originated from projects at Insitu in the late 1990s and early 2000s, influenced by concepts demonstrated in programs involving DARPA, Naval Air Systems Command, and partnerships with Boeing Phantom Works. Development leveraged technologies and lessons from experimental programs such as RQ-1 Predator prototypes, collaborations with NASA, and trials hosted by Naval Research Laboratory. Design priorities included endurance, low acoustic signature, and a recovery system compatible with small decks and austere sites, building on capture concepts trialed with STOL-class aircraft and shipborne aviation practices from USS Abraham Lincoln (CVN-72) operations.

The airframe combines composite materials and a pusher-propeller configuration derived from earlier unmanned systems developed by Insitu engineers, with avionics influenced by commercial navigation suppliers like Honeywell International Inc. and electro-optical/infrared sensors from firms such as Wescam and L3Harris Technologies. Launch and recovery use a compact pneumatic catapult and the patented "SkyHook" retrieval to an arresting wire mounted on masts or small decks, a concept tested alongside carrier-based recovery trials with crews from United States Navy and United States Marine Corps. The architecture supports modular payload bays, enabling integration with synthetic aperture radar, automatic identification system receivers, and signals intelligence suites from contractors including Raytheon Technologies and BAE Systems.

Specifications

Typical specifications reflect the maritime reconnaissance configuration fielded by expeditionary units and naval air wings. The airframe measures roughly 1.4 meters in length with a wingspan near 3.1 meters, and gross takeoff weights approximating 19 kilograms, tuned for endurance rather than speed. Propulsion uses a two-stroke piston engine paired with a composite propeller, supported by integrated fuel systems and telemetry radios supplied by companies such as Northrop Grumman and Thales Group.

Performance figures include endurance exceeding 20 hours under optimal payload and environmental conditions, operational ceilings in the 16,000-foot class, and cruise speeds optimized for stable imagery collection. Avionics suites provide autonomous waypoint navigation, automatic takeoff and landing sequences, datalinks compatible with satellite relay nodes and ground control stations used by U.S. Special Operations Command, with secure communications options conforming to standards adopted by organizations like NATO. Payload capacity supports multi-sensor configurations including electro-optical/infrared turrets, miniaturized radar, and signals intelligence modules.

Operational History

The system entered operational service in the early-to-mid 2000s supporting United States Navy and United States Marine Corps operations in maritime interdiction, littoral surveillance, and counter-piracy missions off coastlines like those adjacent to Horn of Africa. Deployments extended to overland campaigns during operations in Iraq War and War in Afghanistan (2001–2021), where tactical units used the platform for persistent overwatch, convoy protection, and target acquisition. Non-U.S. users introduced the platform into coalition operations alongside forces from United Kingdom Armed Forces, Australian Defence Force, Canadian Armed Forces, and NATO partner contingents during multinational exercises and stability operations.

Humanitarian and civil applications included maritime search-and-rescue coordination with agencies such as Australian Maritime Safety Authority and environmental monitoring programs involving institutions like NOAA and NASA research initiatives. Integration with ship classes from United States Navy and other navies, such as littoral combat ships and amphibious assault vessels, demonstrated interoperability with embarked aviation detachments and expeditionary units.

Variants and Modifications

Over time, manufacturers and contractors developed multiple variants and mission kits. Baseline small tactical variants were adapted into extended-range configurations with fuel and avionics upgrades, while maritime-focused blocks added corrosion-resistant coatings and datalink enhancements for shipboard operations. Sensor modifications produced hardened electro-optical/infrared packages, compact synthetic aperture radar pods, and signals intelligence suites created by vendors like Elbit Systems, Thales Group, and Leonardo S.p.A..

Integration packages allowed operation with airborne command systems, satellite communications terminals, and secure ground control stations fielded by units such as U.S. Special Operations Command and partner services. Civilianized modifications supported law enforcement and border agencies including units within Australian Border Force and European coastguards, incorporating identification friend-or-foe improvements and payloads tailored for maritime domain awareness.

Operators and Deployments

State and non-state actors operating the platform include branches of the United States Armed Forces, allied militaries such as United Kingdom Armed Forces, Australian Defence Force, Canadian Armed Forces, French Navy, and various NATO members. Export customers encompassed countries in Asia, Africa, and Europe, with deployments aboard frigates, corvettes, and patrol vessels belonging to navies of nations like Japan Maritime Self-Defense Force, Royal Norwegian Navy, and Brazilian Navy. Domestic agencies and civil organizations also employed the system for search-and-rescue and environmental monitoring, working with entities such as NOAA, Australian Maritime Safety Authority, and national coastguard services.

International exercises and operations showcased interoperability during events including RIMPAC, BALTOPS, and coalition counter-piracy patrols coordinated with task forces operating in the Gulf of Aden and along the Somali coastline.

Incidents and Losses

Throughout its service life, the platform experienced incidents including mishaps during maritime recovery attempts, hard landings in austere zones, loss due to enemy action in contested theaters, and occasional engine or avionics failures. Recorded losses occurred during operations in Iraq War and War in Afghanistan (2001–2021), as well as in maritime operations near the Horn of Africa and contested littorals. Investigations often led to procedural and hardware improvements adopted by Insitu and subcontractors, with updates to retrieval systems, corrosion mitigation, and redundant avionics packages to reduce recurrence.
