Sagittarius Arm

Sagittarius Arm

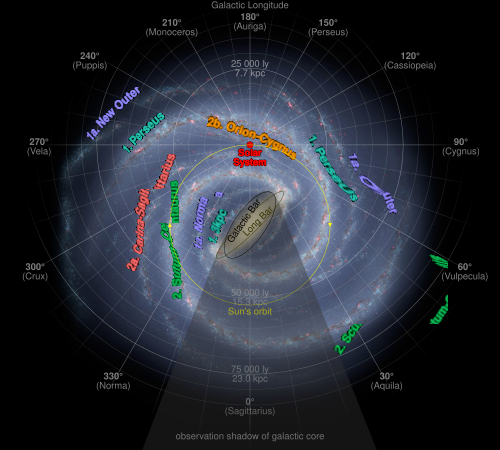

File:Artist’s impression of the Milky Way.jpg: NASA/JPL-Caltech/ESO/R. Hurt deri · Public domain · source
Name	Sagittarius Arm
Type	Spiral arm
Galaxy	Milky Way
Distance	~6000–9000 ly (from Solar System)
Length	~10,000–15,000 ly
Notable objects	Lagoon Nebula, Trifid Nebula, Omega Nebula, M25, M8, M20

Sagittarius Arm The Sagittarius Arm is a major spiral arm of the Milky Way hosting numerous star clusters, nebulae, H II regions and massive molecular cloud complexes. It lies interior to the Perseus Arm and exterior to the Norma Arm, intersecting sightlines toward the Galactic Center and dominating many optical, radio and infrared views of the southern constellations such as Sagittarius and Scutum. Observations from instruments like the Spitzer Space Telescope, Very Large Array, and Gaia have refined its mapped structure and content.

Overview

The arm contains rich sites of ongoing star formation and is prominent in surveys by the Two Micron All-Sky Survey, Infrared Astronomical Satellite, and radio surveys such as the Galactic Ring Survey. It is characterized by bright emission from hydrogen alpha and radio recombination lines seen toward objects catalogued in projects like the WISE Catalog of Galactic H II Regions and by concentrations of maser sources tracked by the Bar and Spiral Structure Legacy Survey (BeSSeL). The arm's stellar populations include massive O-type stars, young open clusters (e.g., NGC 6530, NGC 6523), and embedded protostars revealed by ALMA imaging.

Structure and Location

The Sagittarius Arm is commonly described as an inner arm or arm segment located between the Norma Arm (or Scutum–Centaurus Arm) and the Perseus Arm depending on morphological models by teams using data from Very Long Baseline Array parallaxes and kinematic maps from the CO (carbon monoxide) surveys. Its pitch angle and length estimates vary across models published by groups at institutions like the Harvard–Smithsonian Center for Astrophysics, Max Planck Institute for Radio Astronomy, and the National Radio Astronomy Observatory. The arm crosses lines of sight to constellations including Sagitta (constellation), Aquila (constellation), and Ophiuchus (constellation), and is mapped relative to the Solar System using distance ladders calibrated with Cepheid variables and trigonometric parallax measurements.

Star Formation and Nebulae

Regions within the arm host high-mass star formation traced by ultracompact H II regions, water maser emission, and infrared excesses cataloged by missions such as Spitzer Space Telescope and Herschel Space Observatory. Prominent emission nebulae like the Lagoon Nebula (M8), Trifid Nebula (M20), and the Omega Nebula (M17) exemplify triggered star formation influenced by massive stars and stellar winds from clusters such as NGC 6611. Giant molecular clouds like those in the Molecular Ring and cloud complexes catalogued by the Boston University–Five College Radio Astronomy Observatory Galactic Ring Survey are reservoirs for protostellar cores observed with Submillimeter Array and James Clerk Maxwell Telescope programs.

Notable Objects and Regions

The arm contains a concentration of Messier and NGC objects observed historically by astronomers including Charles Messier and William Herschel. Key landmarks include the Lagoon Nebula, Trifid Nebula, Omega Nebula, young clusters such as M25, and dark nebulae catalogued by Edward Emerson Barnard. Regions like the Eagle Nebula lie in adjacent arm segments but are frequently compared in surveys by teams at the European Southern Observatory and the Royal Astronomical Society. Radio and infrared catalogs list numerous H II regions, planetary nebulae, and supernova remnants identified by collaborations using the Australian Square Kilometre Array Pathfinder and the Arecibo Observatory legacy data.

Kinematics and Dynamics

Kinematic analysis uses radial velocities from CO and HI surveys together with proper motions from Gaia and VLBI parallax work by the BeSSeL Survey to model streaming motions, shear, and spiral density wave signatures. Models developed by researchers at institutions like the Max Planck Institute for Radio Astronomy, University of Tokyo, and University of California, Berkeley explore whether the arm is a long-lived density wave or a transient, flocculent feature related to galactic rotation and perturbations from the Galactic bar. Studies of maser kinematics in regions such as the W43 complex provide constraints on pattern speed and local gravitational potential.

Observational History and Discovery

Sightlines through the arm were noted in early radio and optical surveys; historical cataloguing by observers such as Heinrich d'Arrest and John Herschel recorded nebulae later associated with the arm. The identification of the arm as a coherent spiral feature progressed with 20th-century radio astronomy using facilities like the Parkes Observatory and the Green Bank Observatory, and was refined by VLBI parallax programs and infrared mapping from COBE and IRAS. Modern delineation relies on combined datasets from Gaia, Spitzer Space Telescope, and VLBI networks coordinated by consortia including the International Astronomical Union working groups.
