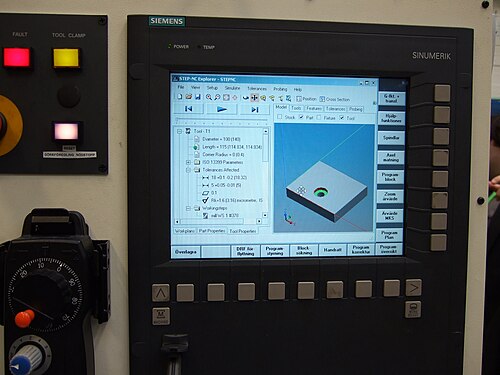

Loffredo · CC BY-SA 4.0 · source
Name	STEP-NC
Introduced	2000s
Type	Manufacturing data standard
Developer	ISO TC 184/SC 1, PDES, Inc.
Related	STEP, ISO 10303, G-code, MTConnect

STEP-NC STEP-NC is an initiative to replace legacy machine control languages with a data-rich, object-oriented neutral file format for numerically controlled machining. It extends the ISO 10303 STEP family to represent manufacturing features, toolpaths, and process plans with semantic information that links design and production. The project connects standards bodies, research institutions, and manufacturing companies to enable model-based definition, process planning, and closed-loop manufacturing.

Overview and History

The concept emerged from collaborations among ISO, ANSI, PDES, Inc., and research groups at institutions such as MIT, NIST, Carnegie Mellon University, and Penn State. Early demonstrations involved industrial partners including Caterpillar Inc., General Electric, Siemens, FANUC, and LIA labs. Influences include the broader ISO 10303 (STEP) series, prior numerical control standards like G-code and RS-274, and initiatives such as MTConnect and OPC UA. Milestones include publication of application protocols and experimental implementations across academic labs and companies, showcased at events like IMTS and Hannover Messe.

Technical Architecture and Data Model

STEP-NC builds on the EXPRESS data modeling language from ISO 10303 to represent entities such as machined features, cutting conditions, tools, and operations. The architecture links product definition data from systems like CATIA, NX, SolidWorks, and PTC Creo to process-planning systems and CNC controllers. Key elements map to entities found in ISO 14649 and other ISO application protocols, enabling exchange of geometric tolerance data from ASME Y14.5 style systems and material specifications traceable to standards bodies such as ASTM International. The model supports parametric representations, feature-based manufacturing, and associations to CAM outputs from vendors like Mastercam, Esprit, and PowerMill.

Implementation and Standards Integration

Implementations integrate with enterprise systems including SAP (software), Siemens Teamcenter, PLM solutions from Dassault Systèmes, and MES platforms used by Rockwell Automation and Siemens. STEP-NC interacts with metrology frameworks from Hexagon AB and ZEISS for feedback and inspection. Standards coordination involves ISO/TC 184/SC 1, ISO/TC 184/SC 4, and national bodies such as ANSI and BSI to harmonize STEP application protocols with control standards like IEC 61131 and industrial communication stacks exemplified by PROFINET and EtherCAT.

Applications and Industry Adoption

Use cases span aerospace firms like Boeing and Airbus, automotive manufacturers including Toyota Motor Corporation and Ford Motor Company, and precision suppliers serving NASA and European Space Agency. Applications include adaptive machining, feature-based process planning, digital twins leveraged by Siemens Digital Industries, and in-line inspection workflows used by Honeywell and Lockheed Martin. Research demonstrations have shown integration with additive-subtractive hybrid systems developed at Oak Ridge National Laboratory and laboratories at ETH Zurich and TU Delft.

Benefits and Challenges

Benefits claimed by adopters include reduced CAM-to-CNC translation errors for companies such as ABB and Mitsubishi Heavy Industries, improved traceability demanded by FAA and EASA, and support for model-based definition advocated by ASME and ISO. Challenges include achieving controller vendor support from firms like Fanuc and Siemens AG, aligning with existing legacy ecosystems entrenched by Mazak and Hurco, and ensuring interoperability with PLM and ERP systems from Oracle Corporation and SAP SE. Organizational adoption hurdles involve standards governance across bodies like ISO, IEC, and industry consortia.

Software and Tools

Academic and commercial toolchains implementing STEP-NC concepts include research platforms from NIST and Carnegie Mellon University, CAM integrations by Autodesk and PTC, and controller-side prototypes developed by Siemens and open-source projects hosted by universities and consortia. Metrology and simulation tools from MSC Software, ANSYS, and Dassault Systèmes have been used to validate process plans encoded in STEP-NC. Interoperability testing has been performed at trade shows and technical events organized by SME and ASTM International committees.

Future Developments and Research

Ongoing research explores coupling STEP-NC with digital thread initiatives championed by National Institute of Standards and Technology and industrial digitalization platforms from GE Digital and Siemens. Topics include integration with digital twin ecosystems, real-time sensor feedback via MTConnect and OPC UA, and machine learning for adaptive process planning researched at MIT CSAIL and ETH Zurich. Continued standardization work involves coordination among ISO/TC 184, IEC, and industry consortia to promote wider adoption across supply chains used by Boeing, Airbus, and tier-one suppliers.
