Rolling Airframe Missile

Rolling Airframe Missile

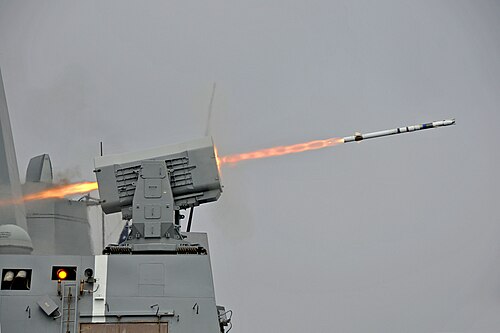

U.S. Navy photo by Mass Communication Specialist 2nd Class Gary Granger Jr. · Public domain · source
Name	Rolling Airframe Missile
Origin	United States / Germany
Type	Close-in weapon system, surface-to-air missile
Used by	See Operators and deployment
Manufacturer	See Variants and upgrades
Unit cost	See Variants and upgrades
Production date	1976–present
Service	1981–present

Rolling Airframe Missile The Rolling Airframe Missile is a shipboard, short-range, point-defense missile system developed to protect naval vessels from anti-ship missiles and aircraft. Conceived through multinational cooperation, it integrates missile aerodynamics, warhead technology, fire-control integration, and launcher engineering to provide rapid-reaction interception capability for surface combatants. The system has been adapted across classes of frigates, destroyers, corvettes, and auxiliary ships operated by several navies.

Development

The program originated from a cooperative effort between the United States Navy, German Navy, and industrial contractors during the Cold War era, following studies by Naval Sea Systems Command, Office of Naval Research, and German procurement agencies. Early development drew on research at Naval Air Systems Command, design input from General Dynamics, and missile expertise from Diehl Defence and other European firms, culminating in flight tests at ranges monitored by Patuxent River Naval Air Station and German test ranges. Program milestones intersected with doctrinal shifts after incidents such as the Operation Praying Mantis and lessons from the Yom Kippur War, prompting accelerated integration into new ship designs and retrofit programs.

Design and components

The system couples a compact, gyro-stabilized launcher, a guided missile with folding control surfaces, and an onboard fire-control interface compatible with ship combat systems such as those developed by Raytheon, Lockheed Martin, and Northrop Grumman. The missile airframe uses a canard-fin configuration enabling high maneuverability derived from aerodynamic research at Naval Research Laboratory and industrial wind-tunnel testing. Primary components include a lightweight rocket motor, an optical seeker package, an RF receiver for datalink updates, a blast-fragmentation warhead with proximity and impact initiation, and a launcher magazine with wraparound deckhouse integration tested on classes like Oliver Hazard Perry-class frigate and Korean KDX variants.

Guidance and sensor systems

Guidance architecture combined passive homing with command uplink capabilities, leveraging passive radio-frequency guidance derived from shipboard sensors such as Aegis Combat System radars and electro-optical trackers from suppliers like Thales Group and MBDA. Early blocks emphasized passive RF homing against anti-ship missile emissions, while subsequent configurations incorporated infrared seekers informed by developments at Infrared Imaging Systems laboratories and optical countermeasure resistance techniques evaluated against threats studied by Defense Advanced Research Projects Agency. Fire-control integration allowed cueing from phased-array radars and close-in suites including collaborations with SPY-1 family installations and national combat management centers.

Variants and upgrades

Initial production models were followed by incremental upgrades including Block I, Block II, and RAM Block 2, with each increment introducing seeker improvements, larger rocket motors, and expanded magazine compatibility. International industrial partnerships produced licensed variants manufactured by contractors such as Rheinmetall, MBDA Deutschland, and Hensoldt, while retrofit programs for legacy vessels were managed by shipyards like Bath Iron Works and ThyssenKrupp Marine Systems. Upgrades addressed evolving threats cataloged by analysts at Jane's and procurement bodies in NATO, featuring enhanced electronic counter-countermeasures, extended engagement envelopes, and integration with vertical launch systems adopted by navies including Japan Maritime Self-Defense Force modernization programs.

Operational history

The missile entered operational service in the early 1980s and saw fleet adoption during the late Cold War, participating in live-fire evaluations during multinational exercises such as RIMPAC and NATO maneuvers. Operational deployments included escort duties in high-threat littorals, fleet air defense during transits connected to Operation Enduring Freedom and Operation Iraqi Freedom task groups, and maritime security patrols supporting carrier strike groups and amphibious ready groups. Service reports and after-action reviews from commands like U.S. Fleet Forces Command documented successful intercepts in test scenarios and informed tactics, techniques, and procedures for littoral air defense.

Operators and deployment

Current and former operators include the United States Navy, German Navy, Royal Norwegian Navy, Hellenic Navy, Korean Navy, Turkish Navy, Royal Thai Navy, and several other NATO and partner navies that fitted the system to frigates, corvettes, destroyers, and logistics vessels. Deployments have ranged from Atlantic convoy escorts under Allied Command Atlantic to Indo-Pacific patrols coordinated with United States Indo-Pacific Command and multinational task groups participating in exercises hosted by Australian Defence Force and regional partners. Training, sustainment, and spares support often involves cooperative logistics arrangements among participating shipbuilding and defense companies and national procurement agencies.

Performance and specifications

Performance parameters evolved by variant but typically cited engagement ranges of several kilometers, speeds exceeding Mach 1, high off-boresight agility, and a high probability of kill against small, fast anti-ship missiles modeled in threat assessments by RAND Corporation and Center for Naval Analyses. Typical specifications include compact missile length to fit low-signature launchers, quick reaction time to shuttered threat windows analyzed by Naval Postgraduate School researchers, and magazine capacities scaled to ship class. Exact values vary by block and export configuration as documented in procurement records of national ministries such as those of United States Department of Defense, Bundeswehr, and allied defense staffs.
