Ranger 6

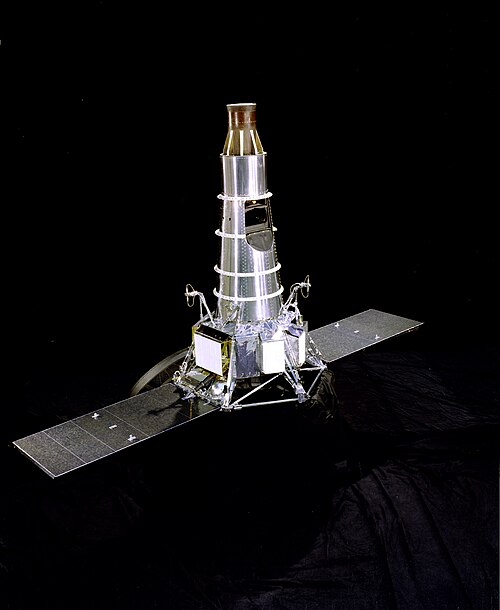

Ranger 6
NASA Headquarters - GReatest Images of NASA (NASA-HQ-GRIN) · Public domain · source
Name	Ranger 6
Mission type	Lunar impactor
Operator	Jet Propulsion Laboratory
Manufacturer	Jet Propulsion Laboratory
Launch date	October 30, 1964
Launch vehicle	Atlas LV-3 Agena-B
Launch site	Cape Canaveral Air Force Station
Landing	Impacted Moon (planned)
Programme	Ranger program

Ranger 6

Ranger 6 was an unmanned NASA lunar impactor spacecraft built by the Jet Propulsion Laboratory as part of the Ranger program aimed at obtaining high-resolution lunar exploration imagery prior to the Surveyor program and Apollo program. The mission sought to bridge data between earlier Ranger 4 and Ranger 5 flights and to support planning for the NASA Marshall Space Flight Center and Manned Spacecraft Center activities by returning television images during descent.

Mission overview

The mission objective mirrored objectives from the Ranger program sequence to transmit high-resolution still and motion images of the Moon during terminal descent and to hard-impact the lunar surface to validate impact targeting techniques used by subsequent Surveyor program and Apollo program missions. The programmatic context included coordination among NASA, the Department of Defense, and contractors such as Agena teams and the Convair division, with flight operations staged from Cape Canaveral Air Force Station and mission control directed by the Jet Propulsion Laboratory in Pasadena.

Spacecraft design

The block I/II heritage frame used a conical hexagonal structure common to earlier Ranger program craft, integrating systems developed at Jet Propulsion Laboratory, including a propulsion module, guidance electronics, and a science payload. The spacecraft carried a television camera system designed by teams with ties to Bell Telephone Laboratories and electronics suppliers who had worked on Project Echo and Telstar communications, plus solar panels, batteries, and a solid-propellant midcourse motor derived from technologies tested on Atlas upper stages and Agena vehicles. Attitude control used star sensors and gyroscopes influenced by designs from MIT instrumentation groups and the Johns Hopkins University Applied Physics Laboratory heritage.

Launch and trajectory

Launched on October 30, 1964, from Cape Canaveral Air Force Station atop an Atlas LV-3 Agena-B stack, the ascent profile followed trajectories developed for earlier Ranger program launches with staging events coordinated with Range Safety and tracking by the Eastern Test Range. The injection into translunar trajectory used the Agena stage burn, with midcourse corrections planned by Jet Propulsion Laboratory navigators employing Deep Space Network support from stations in Goldstone, Canberra, and Madrid to refine targeting toward a planned impact near the Mare Tranquillitatis region of the Moon.

Imaging system and experiments

The science payload centered on a television imaging system intended to produce thousands of pictures during the final minutes before impact, a capability designed to inform site selection for the Surveyor program and to provide reconnaissance for the Apollo program. Camera subsystems were derived from concepts developed at Bell Telephone Laboratories and used electronics techniques similar to those in Mariner program instruments and Explorer program sensors; additional experiments included radiation detectors influenced by instrumentation from Explorer 1 and charged-particle studies akin to those on Pioneer program spacecraft.

Anomalies and mission failure

During translunar flight a telemetry anomaly occurred that prevented the television cameras from operating; subsequent investigations implicated an electrical power or switching fault in the spacecraft's power distribution system influenced by design choices traced back to heritage components used on earlier Ranger program missions. Ground teams at Jet Propulsion Laboratory and contractors such as Hughes Aircraft Company and Convair conducted fault isolation using telemetry from the Deep Space Network but were unable to recover camera operation prior to lunar impact, resulting in the loss of the primary science return.

Aftermath and lessons learned

Following the failure, NASA and the Jet Propulsion Laboratory performed a comprehensive failure review board that led to design changes in power switching, redundancy architecture, and preflight testing procedures; these modifications were applied to subsequent Ranger program flights and informed engineering practice for the Surveyor program and early Mariner program missions. Institutional lessons affected interactions among Jet Propulsion Laboratory, Ames Research Center, and industrial partners including Martin Marietta and Hughes Aircraft Company, emphasizing improved spacecraft integration, telemetry validation, and systems engineering processes.

Legacy and historical significance

Although the mission failed to return its primary imaging data, the event contributed to the maturation of unmanned lunar exploration techniques and risk management procedures that supported the success of later Ranger program missions and the achievement of the Surveyor program landings and the Apollo program crewed lunar landings. The lessons fed into the development of Deep Space Network operations and hardware improvements across NASA centers and contractors, influencing the trajectory of American robotic and crewed lunar exploration during the 1960s and beyond.
