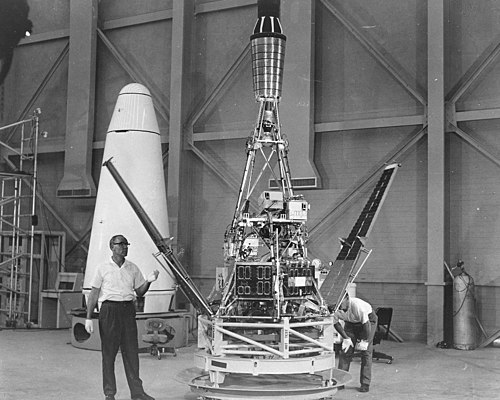

Ranger 1

Ranger 1
NASA Glenn Research Center (NASA-GRC) · Public domain · source
Name	Ranger 1
Mission type	Technology demonstration
Operator	NASA
Cospar id	1961-016A
Satcat	182
Mission duration	1 week (planned)
Launch mass	100.2 kg
Launch date	1961-08-23
Launch rocket	Atlas LV-3 Agena-B
Launch site	Cape Canaveral Air Force Station Launch Complex 12
Orbit reference	Highly elliptical Geocentric
Decay date	Failed to attain lunar trajectory

Ranger 1 was the first flight in the early Ranger program series of unmanned probes developed by the Jet Propulsion Laboratory and managed by the National Aeronautics and Space Administration to test technologies for planetary and lunar exploration. The mission aimed to validate launch vehicle performance, spacecraft systems, and deep-space tracking techniques supporting future encounters with the Moon, while also engaging engineering teams from the Army Ballistic Missile Agency and contractors such as Convair and Hughes Aircraft. Launched during the rapid expansion of United States space efforts, the flight contributed operational experience to later missions like those that reached the Moon and influenced designs used in the Surveyor program and Apollo program.

Background and Mission Objectives

Ranger 1 originated within a post-Sputnik era effort to create a series of spacecraft for close lunar reconnaissance and impact studies coordinated by NASA's Office of Space Flight and executed by the Jet Propulsion Laboratory under contracts involving NASA Ames Research Center advisors. Objectives included validating the modified Atlas LV-3 Agena-B launch stack integration developed by the Manned Spaceflight Office teams and testing spacecraft subsystems such as telemetry, command, and attitude control to support later missions like Ranger 3 and Ranger 4. The mission also sought to exercise deep-space tracking capabilities of the Deep Space Network and to provide practice in mission operations at facilities including Cape Canaveral Air Force Station. Management hoped data would inform designs for the Surveyor soft-lander series and the crewed Apollo program.

Spacecraft Design and Instrumentation

The spacecraft was a blocky, instrumented probe built by the Jet Propulsion Laboratory with heritage from earlier engineering models produced for the Army Ballistic Missile Agency and contractors such as Space Technology Laboratories. Power was provided by primary batteries and deployed systems, while attitude and spin stabilization used cold gas thrusters and gyroscopes developed by industrial partners including Hughes Aircraft. Telemetry and tracking relied on transmitters compatible with the Deep Space Network stations at Goldstone Deep Space Communications Complex, Canberra Deep Space Communications Complex, and Madrid Deep Space Communications Complex; command reception used S-band receivers tuned for operations common to contemporary Explorer and Mariner missions. Scientific payloads were minimal, focusing on engineering sensors: temperature gauges, radiation detectors similar to instruments used on Explorer 1, and telemetry for subsystem performance to inform later science payloads like those on Ranger 7.

Launch and Flight Profile

Ranger 1 launched from Cape Canaveral Air Force Station Launch Complex 12 atop an Atlas LV-3 Agena-B stack provided by Convair with upper-stage integration by teams experienced from the Mercury program. The planned profile called for a parking orbit followed by an Agena burn to place the probe onto a translunar injection trajectory akin to profiles used by subsequent Ranger and Mariner flights. Ground controllers at Cape Canaveral Air Force Station worked with the Jet Propulsion Laboratory mission control to perform staging, telemetry acquisition, and orbit determination using tracking data from the Merritt Island and Goldstone facilities. Launch operations paralleled procedures developed for Atlas-Agena flights supporting reconnaissance and scientific missions.

Anomalies and Mission Outcome

A sequence of anomalies during the ascent and early orbit phases prevented the spacecraft from achieving its translunar trajectory. The Agena-B upper stage failed to perform the necessary burn due to a guidance and control problem traced to an attitude error within the stage's control system—an issue reminiscent of earlier difficulties encountered in Atlas-Agena integration flights. As a result, the probe remained in a low Earth orbit rather than being sent toward the Moon, and mission planners in Pasadena and Cape Canaveral terminated planned translunar operations. Although telemetry was obtained for several orbits, command and control limitations curtailed the acquisition of comprehensive subsystem performance data. The partial success provided important fault reports to contractors including Convair and Hughes Aircraft and to program managers at NASA Headquarters.

Scientific Results and Legacy

Despite failing to reach a lunar trajectory, the flight yielded engineering data on spacecraft subsystem behavior, thermal performance, and telemetry chain operations that informed corrective actions in subsequent Ranger missions and contributed to improvements adopted in the Surveyor program and the Apollo program's unmanned test series. Lessons about Atlas LV-3 Agena-B reliability, stage guidance, and ground-support coordination influenced contractor modifications at Convair and procedural changes at the Jet Propulsion Laboratory and NASA mission operations. The mission's legacy includes its role in the maturation of the Deep Space Network's operational routines and the institutional learning that helped enable later successes such as Ranger 7's lunar imaging, the Lunar Orbiter mapping campaigns, and ultimately the crewed Apollo 11 landing.
