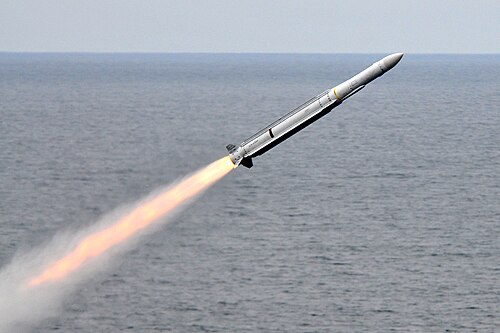

U.S. Navy photo by Mass Communication Specialist Seaman Matthew J. Haran · Public domain · source
Name	RIM-162 Evolved Sea Sparrow Missile
Origin	United States
Type	shipboard surface-to-air missile
Service	1998–present
Used by	see Operators and Export
Designer	Raytheon
Manufacturer	Raytheon
Production date	1995–present
Weight	see Specifications and Performance
Length	see Specifications and Performance
Diameter	see Specifications and Performance
Speed	see Specifications and Performance
Vehicle range	see Specifications and Performance
Filling	see Specifications and Performance
Guidance	see Guidance, Propulsion, and Warhead
Launch platform	see Deployment and Platforms

RIM-162 Evolved Sea Sparrow Missile is a ship-launched, radar-guided medium-range surface-to-air missile developed to provide point and local area defense against anti-ship cruise missiles, aircraft, and asymmetric threats. Conceived as an upgrade to the earlier MIM-23 Hawk derivative Sea Sparrow family, the missile integrates advances in Raytheon seeker, aerodynamics, and propulsion to meet littoral and blue-water air defense requirements for navies such as those of the United States Navy, Royal Australian Navy, and Royal Netherlands Navy. It complements layered air defense architectures that include systems like the Aegis Combat System, Phalanx CIWS, and the RIM-174 Standard ERAM.

Development and Design

The program began in the late 1980s as a multinational effort involving stakeholders from United States Navy, Royal Australian Navy, Royal Netherlands Navy, and other NATO partners to modernize the legacy Sea Sparrow. The design objective emphasized improved kinematics, expanded no-escape zones, and integration with modern combat systems such as Aegis Combat System, Mk 99 Fire Control System, and SPY-1 radar. Raytheon led engineering, drawing on experience from programs including the Patriot (missile system) upgrade and the AMRAAM family. The missile adopted a semi-active radar homing approach combined with mid-course datalink updates, evolved airframe control surfaces, and a more powerful rocket motor to meet engagement profiles against high-diving, sea-skimming, and maneuvering threats encountered in scenarios like the Falklands War lessons and post-Cold War littoral operations.

Variants and Upgrades

Fielded variants include initial baseline blocks, the Block 1 with improved guidance, and the Block 2/ESSM Block 2 featuring active or semi-active seekers and enhanced proximity fuzing; national upgrade programs produced tailored versions for operators such as Canada, Spain, and Italy. A ship-launched quad-pack adapter compatible with vertical launch systems drew upon work for the Mk 41 Vertical Launching System and enabled four missiles per Sylver or Mk 41 cell, influencing procurement choices by the Royal Navy and navies operating MEKO and Type 45 destroyer classes. Incremental software and hardware refreshes incorporated elements from programs like Standard Missile 2 avionics, and integration efforts addressed interoperability with combat management suites such as Sirius Combat Management System and CMS 330.

Guidance, Propulsion, and Warhead

Guidance employs semi-active radar homing in terminal flight with mid-course guidance via inertial navigation systems and datalink updates from ship sensors including AN/SPY-1, APAR, and SMART-L. Later variants explored active seeker options based on developments from the AIM-120 AMRAAM project to reduce dependence on continuous illumination by shipboard radars. Propulsion uses a solid-fuel rocket motor derived from advanced rocket grains and nozzle designs tested in programs like TOW (missile) propulsion research to produce high thrust-to-weight ratios and burn profiles optimized for intercept geometry. The warhead is a high-explosive fragmentation type with a proximity fuze calibrated to defeat both subsonic cruise missiles and supersonic targets, informed by lethality modeling employed in the Joint Strike Fighter survivability studies.

Operational History

First deployed in the late 1990s, the missile has operated in multinational task groups during operations associated with Operation Enduring Freedom, Operation Iraqi Freedom, and routine NATO maritime patrols in the Mediterranean Sea and Persian Gulf. It has participated in live-fire exercises alongside allied platforms such as USS Cole (DDG-67), HMAS Hobart (DDG 39), and HNLMS De Zeven Provinciën (F802), demonstrating interception capabilities in cooperative engagements against target drones and simulated anti-ship missiles. The system’s integration with layered defenses and networked sensors has been exercised in multinational wargames including RIMPAC and BALTOPS.

Deployment and Platforms

Designed for compatibility with vertical launch cells and existing launcher interfaces, the missile is deployed on destroyers, frigates, corvettes, and aircraft carriers across fleets including Arleigh Burke-class destroyer, Type 45 destroyer, FREMM frigate, and Anzac-class frigate. The quad-packing capability for Mk 41 Vertical Launching System cells increased missile capacity on platforms such as Ticonderoga-class cruiser and influenced refit programs on older vessels including Oliver Hazard Perry-class frigate replacements. Integration has required coordination with combat systems like Aegis, CORTEX, and national fire control suites.

Operators and Export

Primary operators include the United States Navy, Royal Australian Navy, Royal Netherlands Navy, Royal Norwegian Navy, and other NATO and allied navies such as Canada, Spain, Italy, and Greece. Export agreements and cooperative development involved multinational procurement arrangements and technology transfer agreements among ministries of defense in countries participating in the original development consortium and subsequent foreign military sales administered by United States Department of Defense processes.

Specifications and Performance

Typical specifications for the missile family (varies by block): - Length: approximately 3.66 m (source variant dependent) - Diameter: approximately 254 mm - Weight: roughly 280–315 kg - Speed: in excess of Mach 4 (engagement-dependent) - Range: tactical effective ranges up to 50+ km in variant- and launch-geometry-dependent profiles - Guidance: semi-active radar homing with inertial mid-course guidance and datalink; later blocks explore active seekers - Warhead: fragmentation high explosive with proximity fuze
