R36 (New York City Subway car)

R36 (New York City Subway car)

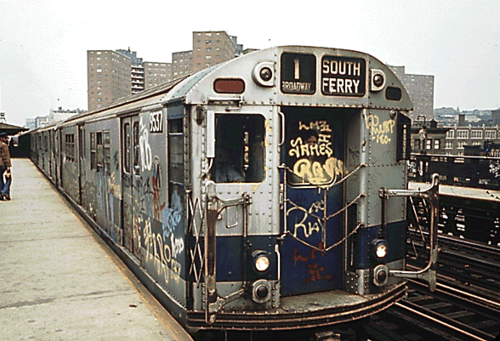

Erik Calonius · Public domain · source
Name	R36
Caption	New York City Subway R36
Service	1963–2009
Manufacturer	St. Louis Car Company
Family	SMEE
Yearconstruction	1963–1964
Numberbuilt	424 (212 married pairs)
Formation	Married pairs
Capacity	44–52 seated
Carbody	Carbon steel
Carlength	60 ft
Width	10 ft
Height	12 ft
Maxspeed	55 mph
Traction	Westinghouse ABF or General Electric 17KG192A1
Brakes	SMEE
Operator	New York City Transit Authority
Lines	Various IRT services
Gauge	4 ft 8+1⁄2 in

R36 (New York City Subway car) was a class of New York City Transit Authority subway cars built in the early 1960s for the Interborough Rapid Transit Company (IRT) division of the New York City Subway. Introduced during the tenure of the Robert Moses era of urban infrastructure growth and commissioned under the administration of the Metropolitan Transportation Authority, the fleet served through multiple eras of transit policy, labor actions, and capital programs until final retirement in 2009. The R36 cars are notable for their married-pair configuration, stainless steel exterior treatments on some sets, and their long service life spanning the administrations of several New York City mayors and transit chiefs.

Design and Specifications

The R36 design continued the SMEE (Straight air, Motor car Electric, Emergency) braking lineage used by prior IRT models and incorporated traction equipment by either Westinghouse Electric Corporation or General Electric Company (GE). Each married pair consisted of a motor car and a trailer or motor-MCT electrical pairing, with a 60-foot carbody modeled after earlier 1950s and 1960s IRT standards. Bodies were constructed from carbon steel, with stainless steel sheathing applied to a subset of cars designated the "World's Fair" cars that entered service for the 1964 New York World's Fair; these stainless sets featured fluted side panels and distinctive exterior rollsigns. Interior fittings included longitudinal seating, incandescent lighting initially, and air-operated doors. The electrical control systems interfaced with the IRT third rail power distribution used across numbered services, and braking relied on the proven SMEE package integrated with dynamic and friction braking. Performance parameters were typical for IRT equipment with a maximum service speed around 55 mph and acceleration characteristics tuned for the rapid station spacing of numbered lines.

Production and Delivery

The R36 order was manufactured by the St. Louis Car Company at its plants during 1963–1964, following contracts awarded by the New York City Transit Authority amid postwar expansion and fleet modernization efforts. A total of 424 cars were built as 212 married pairs, split between Westinghouse- and General Electric-equipped sets to diversify supplier risk and maintenance regimes. Delivery schedules coincided with preparations for the 1964 New York World's Fair; stainless steel "World's Fair" R36 pairs were allotted to services projected to carry fair patrons, with the Transit Authority coordinating allocation across the IRT network. Acceptance trials involved representatives from the Transit Authority, technical staff from St. Louis Car, and city officials tasked with ensuring compliance with the original contract specifications.

Service History

R36 pairs entered passenger service on numbered IRT lines and rotated among services throughout their career, serving routes that included rush-hour shuttles and extended runs across the Broadway–Seventh Avenue Line, the Lexington Avenue Line, and other IRT trackage. They operated during major events that affected transit operations such as the New York City blackout of 1977, labor negotiations involving Transport Workers Union of America (TWU) locals, and capital improvement initiatives under the Metropolitan Transportation Authority regimes of the 1970s and 1980s. The stainless steel World's Fair cars became an iconic visual element in official transit publicity and appeared in media coverage involving mayors such as John Lindsay and Ed Koch. Over decades the R36 fleet adapted to timetable changes, service restructurings, and evolving maintenance practices at yards including Amsterdam Depot and Coney Island Yard.

Refurbishment and Overhauls

Several R36 cars underwent mid-life overhauls under programs initiated by the New York City Transit Authority and later by the Metropolitan Transportation Authority aimed at improving reliability and passenger comfort. Refurbishment work encompassed traction motor rebuilds, brake system renewals, interior reupholstering, upgraded lighting, and repainting schemes that reflected changing branding under different transit chiefs. Some pairs received updated signage systems replacing rollsigns with newer displays, while others were outfitted with modifications for improved crew ergonomics. Overhauls were performed at Transit Authority shops and subcontracted facilities, coordinated with spare-parts supply chains involving Westinghouse and GE vendors and overseen by engineering managers appointed by the Transit Authority.

Accidents and Incidents

During their service life, R36 sets were involved in several notable incidents that prompted safety reviews and operational changes. These included collisions during signal failures, derailments during yard movements, and equipment fires that triggered investigations by Transit Authority safety units and municipal agencies. Specific high-profile events required fleet-wide inspections and temporary service adjustments on affected IRT routes, engaging labor representatives from TWU and legal counsel retained by the Transit Authority. Post-incident remedial actions often resulted in revised maintenance protocols and targeted component replacements across the remaining R36 fleet.

Preservation and Disposition

As the R142 and R142A classes entered service in the early 2000s under capital procurement programs, the R36 fleet was gradually retired and dispositioned. Many cars were scrapped following decommissioning, with a subset preserved by museums and historical groups including the New York Transit Museum and private preservation societies. Preserved pairs are maintained for excursion service, static display, and educational outreach, occasionally appearing at events involving municipal officials and transportation historians. Remaining retired cars were recycled or used for non-revenue purposes such as training at transit yards before final disposal under Transit Authority asset management processes.
