Name	R1

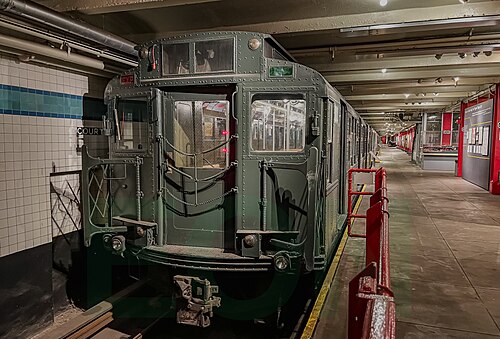

Caption	R1 car on display
Manufacturer	American Car and Foundry
Yearconstruction	1930–1931
Yearservice	1931
Numberbuilt	300
Formation	married pairs
Capacity	56 seated
Carbody	Carbon steel
Carlength	67 ft
Width	10 ft
Height	12 ft
Maxspeed	55 mph
Traction	Westinghouse or General Electric
Poweroutput	200 hp per traction motor

R1 (New York City Subway car) The R1 was a class of New York City Subway rolling stock built for the Independent Subway System in 1930–1931 by American Car and Foundry for operation on the IND Eighth Avenue Line, IND Queens Boulevard Line, and related routes. Designed during the Great Depression era and introduced under the leadership of Moses H. Cone-era municipal transit planners and the Board of Transportation of the City of New York, the fleet represented an early standardized steel-electric unit for the expanding Independent Subway System (IND). The R1 set standards later followed by the R4, R6, and R7/A contracts and influenced procurement for the New York City Transit Authority.

Introduction

The R1 order responded to expansion of the Independent Subway System and the need to equip the new IND Eighth Avenue Line, IND Sixth Avenue Line, and later IND Queens Boulevard Line; procurement involved New York City agencies including the Board of Transportation of the City of New York and contractors such as American Car and Foundry, with design input reflecting practices from the Brooklyn–Manhattan Transit Corporation and the Interborough Rapid Transit Company. Political context included debates in City Hall and oversight by officials associated with Fiorello H. La Guardia's administration and infrastructure priorities tied to municipal projects and federal programs during the Great Depression.

Design and Specifications

R1 cars used welded and riveted carbon steel car bodies similar to contemporaneous fleets ordered by the Interborough Rapid Transit Company and the Brooklyn–Manhattan Transit Corporation; dimensions matched IND clearances and tunnels on the Eighth Avenue Line and the Queens Boulevard Line. Each married pair featured two 200 hp traction motors from either Westinghouse Electric Corporation or General Electric Company (GE), with braking systems based on Westinghouse Air Brake Company designs and multiple-unit control derived from standards used by the Interborough Rapid Transit Company and Long Island Rail Road electrics. Interiors followed IND aesthetic policies influenced by Robert Moses planning, with leatherette seating arrangements, 8 sets of side doors per car for rapid egress at busy stations such as Times Square–42nd Street and 34th Street–Penn Station, and lighting schemes compatible with tunnel ventilation standards used in New York City Subway construction.

Production and Delivery

American Car and Foundry produced 300 cars under the R1 contract during 1930–1931 at facilities that supplied rolling stock to operators like the Chicago Transit Authority and the Philadelphia Transportation Company; components were sourced from industrial suppliers including Westinghouse Electric Corporation, General Electric Company (GE), and Pullman Company subcontractors. Delivery schedules coordinated with IND opening milestones such as the 1932 sections of the Eighth Avenue Line and the Queens Boulevard Line expansions, and car commissioning involved testing at yards connected to the Concourse Yard and Coney Island Yard systems managed by the Board of Transportation and later the New York City Transit Authority.

Service History

R1 cars entered service on IND routes including the Eighth Avenue Line and Queens Boulevard Line, operating from terminals such as Inwood–207th Street and Jamaica–179th Street during extensions; they frequently ran in consists alongside later IND-standard cars like the R4 and R6 types. During their career R1s saw operation through major events affecting New York City transit such as wartime mobilization in the World War II period, postwar ridership booms tied to suburbanization patterns, and system reorganizations under the New York City Transit Authority and Metropolitan Transportation Authority oversight.

Modifications and Rebuilds

Throughout service the R1 fleet underwent upgrades reflecting technological advances and regulatory requirements from agencies including the New York City Transit Authority and federally influenced safety programs. Modifications included traction equipment overhauls performed with parts from Westinghouse Electric Corporation and General Electric Company (GE), brake system refurbishments referencing Westinghouse Air Brake Company standards, and interior refits responding to changing passenger flow at hubs such as Herald Square, Union Square, and Grand Central–42nd Street. Some cars were renumbered and paired with later equipment as maintenance practices evolved under procurement policies influenced by the Port Authority of New York and New Jersey era planning.

Incidents and Withdrawals

Incidents affecting R1 cars included collisions and derailments investigated by municipal agencies and transit safety bodies during the mid-20th century, with reports handled by entities such as the Board of Transportation of the City of New York and later the New York City Transit Authority; specific accidents at locations like Jay Street–MetroTech and Rockaway Park spurs prompted mechanical inspections and public scrutiny involving officials from City Hall and state legislators. Withdrawals proceeded as newer models like the R40 and R46 entered service and as the Metropolitan Transportation Authority pursued fleet modernization; retirements accelerated during the 1960s and 1970s with many cars scrapped or cannibalized for parts used by successor fleets.

Preservation and Legacy

A limited number of R1 cars were preserved by museums and organizations including the New York Transit Museum and private rail preservation groups with ties to enthusiasts from institutions such as the Railway and Locomotive Historical Society and the Electric Railroaders' Association. Preserved examples have been displayed at locations like the New York Transit Museum's Brooklyn facility and at rail heritage events coordinated with entities such as the National Railway Historical Society; the R1 influenced subsequent IND specifications and is cited in histories by authors connected to institutions like Columbia University and New York University urban studies programs studying Robert Moses-era infrastructure. Category:New York City Subway rolling stock
