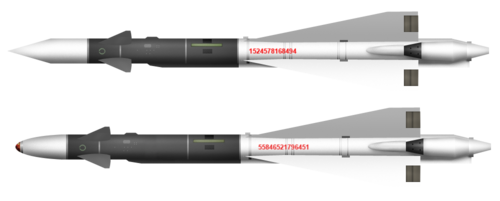

R-40 (missile)

R-40 (missile)
F l a n k e r · Public domain · source
Name	R-40
Origin	Soviet Union
Type	air-to-air missile
Service	1963–1998
Used by	Soviet Air Forces, Soviet Air Defense Forces, Russian Air Force, Indian Air Force, Egyptian Air Force, Syrian Air Force, Cuban Air Force
Production date	1961–1980s
Weight	360 kg (approx.)
Length	4.0 m (approx.)
Diameter	0.38 m (approx.)
Wingspan	1.05 m (approx.)
Speed	Mach 3–4
Range	30–50 km (variants)
Guidance	semi-active radar homing, infrared homing
Warhead	high-explosive fragmentation

R-40 (missile) The R-40 was a long-range Soviet air-to-air missile developed for high-altitude, high-speed interceptor operations during the Cold War. Designed to arm interceptors such as the Mikoyan-Gurevich MiG-25, the R-40 combined heavy warhead mass, extended range, and two distinct seeker types to engage strategic reconnaissance aircraft, B-52-type bombers, and SR-71-class targets. The weapon influenced interceptor tactics across the Warsaw Pact, Middle East air forces, and non-aligned states acquiring Soviet hardware.

Design and Development

Development began in response to requirements from the Soviet Air Defense Forces and Soviet Air Forces to counter growing threats posed by USAF strategic aviation and reconnaissance platforms. The design bureau led by V. A. Chelomey and later design work by teams affiliated with MKB Raduga and associated ministries produced a missile with large aerodynamics and dual seeker options. Requirements were driven by lessons from engagements involving platforms like the Boeing B-47 Stratojet and concept studies influenced by encounters during the Korean War and early Vietnam War reconnaissance operations. Trials involved test ranges at Sary Shagan and instrumented flights from Akhtubinsk and coordination with interceptor flight testing at Zhukovsky (airfield). The integration with the Mikoyan-Gurevich MiG-25 airframe demanded compatible pylons, power interfaces, and seeker cooling derived from cryogenic systems developed for other projects overseen by the Ministry of Aviation Industry (Soviet Union).

Technical Specifications

The R-40 family featured semi-active radar homing (SARH) and infrared (IR) seekers, developed with sensor contributions from institutes such as NIIP and research inputs from Tikhomirov Scientific Research Institute of Instrument Design. Propulsion employed a solid-fuel rocket motor similar in concept to motors used on the Vympel R-27 and earlier K-13 developments, optimized for boost-phase acceleration to intercept at Mach 3–4. Aerodynamic design incorporated cruciform fins and a canard arrangement to manage high-speed stability, drawing on wind-tunnel data from TsAGI. Warhead and fuze engineering used fragmentation and proximity sensors akin to those fielded on the S-200 surface-to-air system. Typical specifications included weights around 360 kg, lengths near 4.0 m, diameters about 0.38 m, and engagement envelopes reaching 30–50 km depending on launch parameters and seeker variant.

Operational History

Fielding began in the mid-1960s aboard the Mikoyan-Gurevich MiG-25PD and later MiG-25 variants assigned to interceptor regiments within the PVO Strany structure. The missile entered service alongside radar platforms such as the Sukhoi Su-15 and support from ground-based networks including P-14 (radar) and P-18 (radar) stations. Soviet air defense doctrine emphasized standoff interception of high-altitude platforms like the Lockheed U-2 and strategic bombers, and the R-40 contributed to layered interception strategies combined with MiG-23 and Su-27 patrols during later periods. Exported units equipped air arms of the Indian Air Force, Egyptian Air Force, Syrian Arab Air Force, and Cuban Revolutionary Air and Air Defense Force, where they served into the late 20th century.

Variants

The R-40 family included SARH and IR seeker versions designated for specific roles: initial SARH types optimized for head-on engagements, IR seekers tuned for tail-chase scenarios. Production and upgrade paths mirrored practices seen on the R-73 (missile) and R-27 (missile) programs, with electronics improvements, seeker sensitivity upgrades, and motor modifications introduced over time. Specialized export variants matched compatibility requirements for platforms such as the MiG-23BN and export MiG-25 versions supplied to client states. Incremental improvements addressed countermeasure resistance, seeker cooling efficiency, and fuzing reliability, reflecting advances from institutes linked to TsNIIMash and other aerospace research centers.

Operators and Deployment

Primary operators included the Soviet Air Forces and Soviet Air Defense Forces until post-Soviet reorganization led to continued use by the Russian Air Force. Export customers encompassed the Indian Air Force, Egyptian Air Force, Syrian Arab Air Force, Cuban Revolutionary Air and Air Defense Force, and several other allied air arms that purchased Mikoyan-Gurevich MiG-25 or compatible interceptors. Deployment patterns followed strategic air defense sectors across the European Soviet Union, Central Asia, and allied regions in the Middle East and Africa, integrated with command and control assets such as the Senezh data links and regional radar nets.

Combat Use and Incidents

Combat records attribute several air combat and interception incidents to R-40 launches during Arab–Israeli conflicts, Indo-Pakistani conflicts, and regional air engagements involving Syrian and Egyptian forces, though confirmed kills are subject to historical debate among analysts referencing archives from the Ministry of Defense of the Russian Federation and declassified records from Central Intelligence Agency. Notable incidents include attempts against reconnaissance platforms similar to the Lockheed SR-71 Blackbird and contested engagements during the Yom Kippur War era where Soviet-supplied interceptors armed with R-40s flew defensive patrols. Peacetime accidents, weapon malfunctions, and friendly-fire events were investigated by military commissions in client states and Soviet authorities, prompting procedural changes in weapons handling and seeker maintenance consistent with responses seen after incidents involving MiG-21 and Su-22 operations.
