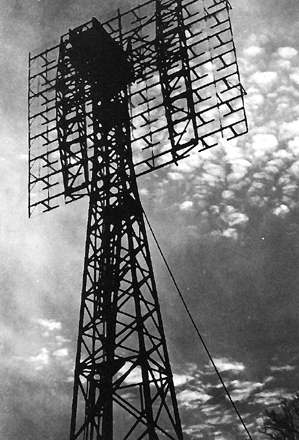

Caption	Radar array used in early microwave experiments
Established	1946
Location	Camp Evans, Fort Monmouth, New Jersey
Field	Radar, radio communication, atmospheric science
Director	D. H. Sweet

Project Diana was a 1946 United States Army Signal Corps experiment that achieved the first successful ground-to-space radio echo by bouncing radar signals off the Moon. The initiative combined personnel and equipment from Camp Evans, Fort Monmouth, and collaborators from Bell Labs, producing results that influenced postwar radar development, early spaceflight planning, and the birth of radio astronomy and planetary radar techniques. The experiment demonstrated that high-frequency microwave transmissions could penetrate the ionosphere and return useful echoes, validating theoretical work by contemporaries in radio propagation and ionospheric physics.

Background

The project grew out of wartime advances in radar research at institutions including MIT's Radiation Laboratory, Bell Labs, and military centers such as Aberdeen Proving Ground and Watertown Arsenal. After World War II, the United States Army Signal Corps sought practical demonstrations of new capabilities developed by scientists like D. H. Sweet, engineers from Western Electric, and researchers associated with Harvard University and Princeton University. Interest in long-range radio reflection, inspired by experiments in ionospheric sounding and theories from Edward Appleton and Bertil T. Nordqvist, led to proposals to use the Moon as a passive reflector to test concepts relevant to over-the-horizon radar and transcontinental communication.

Objectives

The explicit objectives included proving that pulsed microwave transmissions could traverse the ionosphere without unacceptable dispersion, return detectable echoes from the Lunar Reconnaissance scale reflector, and provide data on signal attenuation, Doppler shift, and timing for range measurement. The program aimed to validate techniques relevant to battlefield communications, long-distance telecommunications, and nascent space exploration concepts promoted by advocates at NACA and within the Department of Defense. Ancillary goals encompassed training specialists from Signal Corps School and establishing methodologies to inform projects at Jet Propulsion Laboratory and Langley Research Center.

Equipment and Methods

Engineers adapted a modified SCR-271 radar transmitter and a large receiving antenna array at Camp Evans, integrating vacuum-tube transmitters, high-gain reflectors, and synchronization equipment derived from microwave systems developed at MIT Radiation Laboratory. Timing used precision instruments traceable to standards at National Bureau of Standards, while frequency management referenced work at Bell Labs and Columbia University. The team employed pulse modulation, matched filters, and echo integration methods influenced by research at Harvard and Ohio State University. Observation schedules referenced ephemerides from United States Naval Observatory and coordination with astronomers at Yerkes Observatory.

Results and Findings

On 10 January 1946 the team transmitted short pulses toward the Moon and received echoes approximately 2.5 seconds later, confirming round-trip range consistent with orbital mechanics calculated using methods from Albert Einstein-era celestial mechanics and databases maintained by United States Naval Observatory. Data provided measurements of echo strength, round-trip delay, and Doppler shift, corroborating predictions from Maxwell-based propagation models and informing subsequent work at Bell Labs and Jet Propulsion Laboratory. The experiment yielded practical parameters for signal-to-noise improvement, antenna gain requirements, and frequency selection later applied in programs at Harwell and Royal Radar Establishment.

Technical Challenges and Innovations

Challenges included overcoming transmitter power limitations, receiver noise dominated by vacuum-tube amplifiers, precise aiming of large antennas, and compensating for ionospheric dispersion described in studies by Edward Appleton and Sydney Chapman. Innovations encompassed improved pulse compression, frequency stability techniques influenced by oscillators developed at Raytheon and General Electric, and early use of coherent detection strategies that presaged later developments at Lincoln Laboratory. Mechanical and electronic stabilizing methods for large parabolic arrays influenced antenna engineering at MIT and Harwell.

Personnel and Organization

The core team comprised Signal Corps officers and civilian engineers from Camp Evans, technicians trained at Signal Corps School, and collaborators from Bell Telephone Laboratories and the Western Electric Company. Key figures included officers experienced with wartime radar projects and civilian scientists familiar with microwave technologies from MIT Radiation Laboratory and Bell Labs. Organizationally, the project reported within the United States Army Signal Corps chain and maintained liaison with scientific centers such as National Bureau of Standards and Smithsonian Astrophysical Observatory.

Legacy and Impact on Radar and Space Communication

The successful lunar echo demonstrated feasibility of ground-based microwave reflection experiments and directly influenced the evolution of radar astronomy, prompting further experiments at Arecibo Observatory, Goldstone Deep Space Communications Complex, and Jodrell Bank Observatory. Techniques refined during the work informed design of deep-space tracking systems developed by Jet Propulsion Laboratory, NASA, and the Deep Space Network. The experiment helped catalyze programs in satellite tracking and communication pursued by Vanguard teams and later by Explorer projects, and it contributed to theoretical and practical advances embraced by institutions such as Caltech and Stanford University in the emergent space age.
