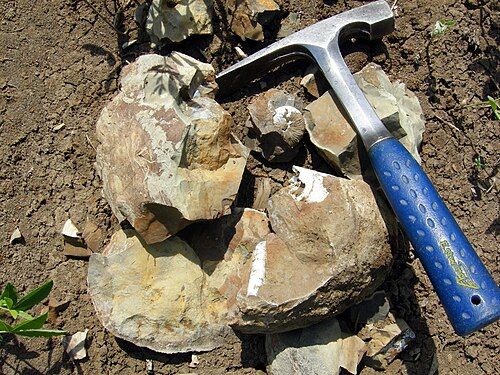

Pierre Shale

Pierre Shale
Wilson44691 · Public domain · source
Name	Pierre Shale
Type	Formation
Age	Late Cretaceous (Campanian–Maastrichtian)
Period	Cretaceous
Primary lithology	Shale
Otherlithology	Sandstone, Siltstone, Bentonite, Limestone
Namedfor	Pierre Shale (name derived from Pierre, South Dakota)
Region	Western Interior Basin
Country	United States, Canada
Underlies	Fox Hills Sandstone, Hell Creek Formation
Overlies	Niobrara Formation, Carlile Shale

Pierre Shale is a widespread Upper Cretaceous marine formation of the Western Interior Seaway preserved across the Great Plains of North America. The unit is notable for its predominantly dark, carbonaceous shale interbedded with bentonitic ash layers and occasional calcareous horizons, and for preserving a rich assemblage of ammonites, mosasaurs, and microfossils that constrain Late Cretaceous biostratigraphy. The formation has been studied in contexts ranging from regional stratigraphy and paleoceanography to hydrocarbon and mineral resource assessments.

Description and Lithology

The Pierre Shale consists chiefly of fissile, organic-rich shale with subordinate silty siltstone, fine-grained sandstone tongues, thin limestone concretions, and abundant bentonite beds derived from volcanic ash of contemporaneous eruptions linked to the Western Interior volcanism of the Laramide Orogeny precursor events. Macroscopically, many exposures show black to dark gray color due to high preserved organic carbon and sulfide minerals associated with euxinic bottom-water conditions inferred from comparisons to the Niobrara Formation and Green River Formation analogs. Mineralogically, the unit contains clay minerals including illite, smectite, and locally diagenetic calcite, with accessory pyrite and glauconite comparable to other Campanian–Maastrichtian marine successions such as the Mancos Shale and Mooreville Chalk.

Stratigraphy and Age

Biostratigraphic control is provided by ammonite zonation, inoceramid bivalves, and planktonic foraminifera that place most of the Pierre Shale within the Campanian to Maastrichtian stages of the Late Cretaceous. Chemostratigraphic markers, including carbon isotope excursions correlated with the Santana Formation and regional bentonite sequences correlated to dated tuffs near Denver Basin localities, have refined chronostratigraphic frameworks. The unit commonly overlies the Niobrara Formation or Carlile Shale and is overlain by the Fox Hills Sandstone or Hell Creek Formation in eastern sections, reflecting a regressive sequence linked to retreat of the Western Interior Seaway and the late Cretaceous transgressive-regressive cycles observed in the Western Canada Sedimentary Basin and Colorado Plateau.

Geographic Distribution and Thickness

The Pierre Shale extends from Saskatchewan and Alberta in Canada southward through Montana, Wyoming, North Dakota, South Dakota, Nebraska, Colorado, Kansas, and into New Mexico and Texas in the United States, occupying a broad part of the Western Interior Basin. Thickness varies markedly: in central areas of maximum deposition, the unit reaches several hundred meters, while at basin margins it pinches out or grades laterally into coarser clastics such as the Fox Hills Sandstone and shoreface deposits correlated with the Mesaverde Group. Lateral facies changes mirror paleobathymetric gradients documented in cores and outcrops across the Black Hills and Badlands National Park regions.

Paleontology and Fossil Content

The Pierre Shale yields abundant marine macro- and microfossils, including diverse ammonites such as representatives comparable to those cited from the Western Interior, bivalves including inoceramids, gastropods, echinoids, and occasional shark teeth attributable to taxa known from the Niobrara Chalk and Carlile Shale. Vertebrate fossils include articulated and fragmentary mosasaur skeletons, pleurosternid turtles analogous to finds in the Hell Creek Formation, and rarer remains of plesiosaurs and elasmobranch dentitions correlated with Late Cretaceous faunas from Pierre, South Dakota collections. Microfossils—planktonic and benthic foraminifera, ostracods, dinoflagellate cysts, and radiolarians—are important for paleoenvironmental reconstructions and correlation with global records, such as those from the Balkans and North Atlantic Cretaceous successions.

Depositional Environment and Sedimentology

Sedimentological and geochemical evidence indicates deposition in an outer-shelf to slope setting of the Western Interior Seaway under predominantly low-oxygen to euxinic bottom waters, punctuated by episodes of increased oxygenation and siliciclastic influx related to proximal deltaic systems like those that produced the Fox Hills Sandstone and Graneros Shale-equivalent units. Interbedded bentonites record explosive volcanic input contemporaneous with arc volcanism along Cordilleran arcs tied to the evolving Laramide orogeny; these ash layers provide chronological tie-points used in sequence-stratigraphic models that align Pierre Shale facies with global sea-level curves and regional tectonic events documented in the Cordilleran Foreland Basin.

Economic Uses and Resource Potential

The Pierre Shale has hydrocarbon source-rock potential due to its organic-carbon richness, with mature zones evaluated in the Williston Basin and Denver Basin for unconventional gas and oil plays analogous to development in the Mancos Shale and Bakken Formation. The unit's bentonite beds are mined locally for industrial applications similar to deposits exploited in Wyoming and Montana. Additionally, calcareous concretions and phosphate concentrations have been examined for mineral resources, while outcrops at sites such as Badlands National Park and Pine Ridge provide paleontological and recreational value. Category:Geologic formations of North America
