Picatinny rail

Picatinny rail

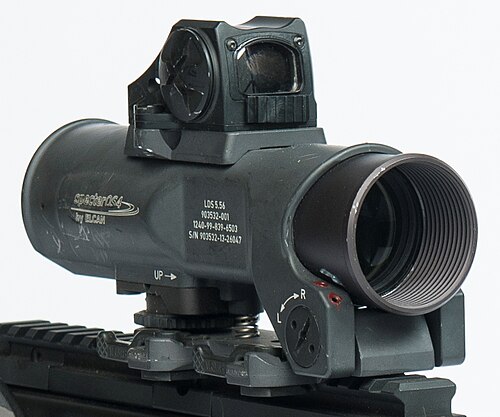

Original Ministry of Defence photograph by Stuart Hill, rotation and cropping by · OGL 3 · source
Name	Picatinny rail
Caption	Standardized accessory rail on a firearm
Origin	United States
Service	1995–present
Designer	United States Army Armament Research, Development and Engineering Center
Type	Accessory mounting rail

Picatinny rail is a standardized mounting platform for firearm accessories developed for small arms. It provides a repeatable, robust interface for attaching sights, optics, grips, lights, lasers, and other devices to rifles, shotguns, and handguns. The rail's adoption influenced procurement and design decisions across armed forces, law enforcement agencies, commercial manufacturers, and competitive shooting organizations.

History

The rail emerged from efforts by United States Army Armament Research, Development and Engineering Center engineers to improve accessory interchangeability after experiences in conflicts like the Gulf War and equipment evaluations following the Persian Gulf War. Development and formalization involved trials with stakeholders including Ordnance Corps (United States Army), testers at Aberdeen Proving Ground, and industry partners such as Colt's Manufacturing Company and Remington Arms. Formal standardization was achieved with a military specification issued by United States Department of Defense acquisition channels, and the rail became widespread through adoption by programs like the M4 carbine upgrades and procurement by NATO partners. Civilian adoption accelerated through collaborations with manufacturers serving Federal Bureau of Investigation contracts, sporting events run by International Practical Shooting Confederation, and retail offerings from firms like Magpul Industries.

Design and specifications

The rail's geometry specifies transverse slot dimensions, spacing, and tolerances to ensure repeatable mounting; these details were codified into a technical drawing used by ArmaLite and other contractors. Key features include a fixed-width bearing surface, indexed recoil shoulders, and uniformly spaced transverse slots that accept standardized clamps. Engineers referenced metrology labs such as National Institute of Standards and Technology for measurement practices and quality control. The specification influenced materials choices among manufacturers including Stainless steel producers and forged receivers from companies like FN Herstal and SIG Sauer. Tolerances affect repeatability under recoil cycles observed in testing protocols used at facilities like Picatinny Arsenal.

Mounting and compatibility

Mounting uses clamping hardware, cross-bolts, or dedicated rail sections attached to receivers produced by firms such as Colt's Manufacturing Company, Heckler & Koch, Smith & Wesson, and Daniel Defense. Compatibility considerations include receiver geometry on platforms like the AR-15, AR-10, AK-47 derivatives, and proprietary systems from Steyr Mannlicher. Adapter interfaces enable integration with optics from makers such as Trijicon, Aimpoint, EOTech, and Leupold, and with night-vision devices supplied by FLIR Systems and BAE Systems. Standards bodies and procurement offices at organizations like NATO and United States Special Operations Command evaluate interoperability across platforms and accessories.

Accessories and applications

Accessories designed for the rail span sighting systems (red dots, holographic sights, magnified scopes), illumination devices, vertical foregrips, bipods, sling mounts, and training tools. Notable manufacturers producing compatible gear include Vortex Optics, Nightforce Optics, SureFire, and Streamlight. Applications extend beyond military use into law enforcement units such as Los Angeles Police Department units, sporting disciplines overseen by United States Practical Shooting Association, and civilian hunting with rifles from Browning Arms Company and Winchester Repeating Arms Company. Special-purpose mounts are used for cameras and sensors in projects by research institutions such as MIT Lincoln Laboratory and NASA field trials.

Advantages and limitations

Advantages include standardized interchangeability promoted by procurement offices like those at Department of Defense programs, robust repeatability for zero retention with optics from Schmidt & Bender and durable attachment under recoil tested at laboratories like Sandia National Laboratories. Limitations involve added weight and profile affecting handling characteristics on platforms such as the HK416 and some hunting rifles from Ruger, potential compatibility issues with legacy proprietary mounts from Savage Arms or Browning, and the need for proper torque and maintenance to avoid shear or loosening under sustained use reported by law enforcement agencies including New York Police Department units. Ergonomic debates have influenced later accessory-interface innovations promoted by industry associations like the National Shooting Sports Foundation.

Variants and related standards

Several variants and competing standards exist. NATO pursued harmonization efforts under agencies including NATO Standardization Office, while commercial alternatives such as those developed by Weaver (company) and proprietary mounting systems from Picatinny Arsenal contractors offered different slot patterns and clamping methods. Other standardized interfaces include designs influenced by European manufacturers such as Steyr Mannlicher and by accessory makers like MAGPUL Industries producing polymer mounts. Later interface families and low-profile rail formats emerged in response to demands from special operations programs like United States Special Operations Command procurement and sporting innovators affiliated with International Practical Shooting Confederation events.

Category:Firearm components
