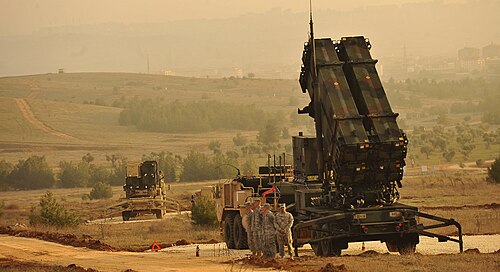

DoD Photo By Glenn Fawcett · Public domain · source
Name	Patriot missile system
Country	United States
Type	Surface-to-air missile
Service	1984–present
Designer	Raytheon
Manufacturer	Raytheon

Patriot missile system is a long-range, surface-to-air missile system developed and produced in the United States for air and missile defense. Originally designed during the Cold War to counter aircraft and cruise missiles, it was adapted into an anti-ballistic missile role during the late 20th century and has been used by multiple countries in conflicts from the Gulf War to the Syrian Civil War. The system integrates radar, command-and-control, launchers, and guided interceptors to protect fixed and maneuvering forces and critical infrastructure.

Development and Design

Development began under the auspices of the United States Army to replace the MIM-23 Hawk and to meet requirements emerging from the Yom Kippur War and evolving Soviet threats such as the Sukhoi Su-24 and cruise missiles like the Kh-55. Initial programs were managed by the U.S. Department of Defense and contractor teams led by Raytheon Technologies and subcontractors including General Dynamics and Lockheed Martin for subsystems. The program formalized in the 1970s with participation from testing facilities such as White Sands Missile Range and modeling efforts linked to the RAND Corporation. Design choices emphasized a phased-array radar derived from research at MIT Lincoln Laboratory, digital command-and-control inspired by architectures used in SAGE and networking approaches comparable to those developed at DARPA. Political and budgetary debates in the United States Congress and procurement oversight by the Government Accountability Office influenced scope and export policy. Technical milestones included the transition from analog guidance to track-via-missile techniques and the incorporation of track-while-scan capability proven in trials against targets resembling the Mikoyan MiG-25 and cruise threats encountered during Operation Desert Storm.

Components and Variants

The system architecture unites the AN/MPQ-65 or earlier AN/MPQ-53 radar, an Engagement Control Station derived from Army command posts, M901 launching stations carrying MIM-104 Patriot missiles, and maintenance trucks patterned after logistics vehicles from Boeing and Oshkosh Corporation. Warhead and seeker variants evolved into the PAC-2 and PAC-3 families: PAC-2 used blast-fragmentation warheads and semi-active homing sensors, while PAC-3 introduced hit-to-kill kinetic interceptors and active radar seekers developed with assistance from Aerojet Rocketdyne. Launcher modifications produced towed and mobile configurations interoperable with tactical units such as III Corps and brigade combat teams modeled on U.S. Army Forces Command doctrines. Export-oriented versions incorporated Identification Friend or Foe transponders interoperable with systems fielded by partners like NATO and command interfaces compatible with the Link 16 tactical data network.

Operational History and Deployments

Patriot batteries deployed during major operations including Operation Desert Storm (1991), Operation Iraqi Freedom (2003), and in defense of allies during tensions involving Kingdom of Saudi Arabia and State of Israel. Nations operating the system positioned batteries to protect installations near theaters such as Kuwait City, Baghdad International Airport, Tel Aviv, and bases in Germany and Japan. Deployments were coordinated with coalition air defenses under command structures influenced by the North Atlantic Treaty Organization and bilateral security agreements like the U.S.–Japan Security Treaty and foreign military sales administered by the Defense Security Cooperation Agency. Training and live-fire events have occurred at ranges including White Sands Missile Range and Nellis Air Force Base where interoperability exercises incorporated aircraft such as the F-15 Eagle and electronic-warfare assets like the EA-6B Prowler.

Combat Performance and Effectiveness

Combat assessments have been contentious, with analyses from the Department of Defense, independent researchers at RAND Corporation, and investigative journalists offering differing kill-rate estimates during Gulf War (1991) engagements against Scud missile variants and related launchers. Early systems achieved interceptions against cruise missiles and aircraft, while PAC-3 demonstrated enhanced lethality against short-range ballistic threats in later conflicts including engagements claimed during the Iraq War and incidents in Saudi Arabia and Israel. Critics cited challenges from degraded radar signatures, countermeasures such as swarm tactics and radar jamming developed by programs in the Russian Armed Forces and Islamic Revolutionary Guard Corps Aerospace Force, and the fog of war in attribution of specific intercepts. Empirical studies used telemetry from tests at White Sands Missile Range and after-action reports from units like the 32nd Army Air and Missile Defense Command to refine engagement doctrines and probabilistic models.

Export, Operators, and Procurement

The system was exported through Foreign Military Sales and direct commercial agreements to countries including Germany, Japan, Israel, Saudi Arabia, Netherlands, Spain, Greece, Poland, Qatar, Taiwan, and United Arab Emirates. Procurement cycles were influenced by geopolitics such as regional tensions with Iran and accession to alliances like NATO. Domestic contractors and host-nation integrators negotiated offsets and local production arrangements; procurement controversies occasionally involved reviews by the Congressional Research Service and debates over interoperability with indigenous air defenses such as S-300 or S-400 systems procured by potential buyers like Turkey and India.

Upgrades, Modernization, and Countermeasures

Modernization programs integrated digital signal processors, gallium nitride (GaN) radar transmit/receive modules, and software-defined datalinks aligning with network-centric concepts championed by United States Cyber Command and U.S. Northern Command. Raytheon-led upgrades produced the PAC-3 MSE interceptor with extended range, enhanced divert-and-attitude-control systems developed with Aerojet Rocketdyne, and improved radars anti-jam capabilities tested with partners at Sandia National Laboratories. Counter-countermeasure efforts addressed electronic attack and stealthy cruise threats, incorporating lessons from exercises with Israeli Defense Forces and feedback from engagements during operations like Operation Inherent Resolve. Future roadmaps consider integration with theater systems such as Aegis Combat System and layered defenses using interceptors like the THAAD and collaboration under multinational initiatives including NATO Air and Missile Defence.
