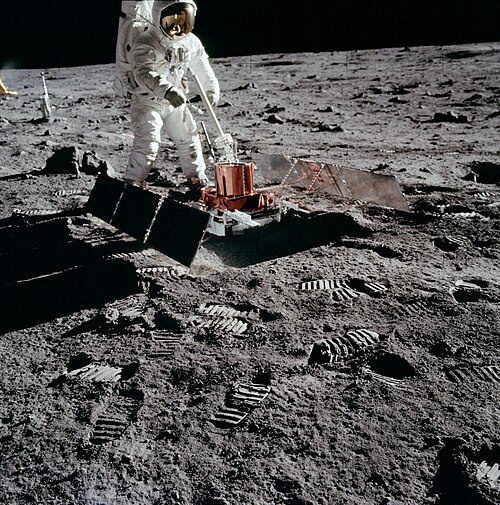

NASA/Neil Armstrong · Public domain · source
Name	Passive Seismic Experiment Package
Mission	Apollo 11 Apollo 12 Apollo 14 Apollo 15 Apollo 16 Apollo 17
Operator	National Aeronautics and Space Administration
Manufacturer	Jet Propulsion Laboratory Massachusetts Institute of Technology Bellcomm
Launch	1969–1972
Type	planetary seismometer
Country	United States

Passive Seismic Experiment Package The Passive Seismic Experiment Package was a suite of seismometers deployed on the Moon during the Apollo program to record lunar seismicity and meteoroid impacts, providing foundational data for lunar geophysics, internal structure, and tectonics. Deployed across multiple Apollo 11, Apollo 12, Apollo 14, Apollo 15, Apollo 16, and Apollo 17 missions, the experiment influenced subsequent instruments used by agencies such as the European Space Agency and the Russian Federal Space Agency. Principal investigators and supporting institutions included teams from the Massachusetts Institute of Technology, the Jet Propulsion Laboratory, and contractors like Raytheon and Bellcomm.

Introduction

The experiment originated in proposals influenced by earlier terrestrial seismology at institutions like Caltech and Lamont–Doherty Earth Observatory, and by lunar exploration priorities defined in reports from the National Academy of Sciences and the President's Science Advisory Committee. Under direction from NASA and program management by the Manned Spacecraft Center and the Marshall Space Flight Center, engineers adapted seismometer technology to the lunar environment, drawing on expertise from MIT, JPL, and industrial partners including Grumman and Northrop Corporation.

Design and Components

The package housed three main sensor types: long-period vertical, long-period horizontal, and short-period vertical geophones, designed by teams at MIT and tested at facilities such as Jet Propulsion Laboratory testbeds and SRI International. Components included a low-noise seismometer assembly, a thermal control system informed by work at NASA Ames Research Center, electronics built to withstand vacuum and temperature extremes, and a data telemetry interface compatible with the Apollo Lunar Surface Experiments Package ALSEP central station. Power systems relied on radioisotope heater units and electrical supplies coordinated with the ALSEP power subsystem. Mechanical design and packaging drew on heritage from contractors including Raytheon and Hughes Aircraft Company.

Deployment and Operations

Astronaut crews including Neil Armstrong, Buzz Aldrin, Pete Conrad, Alan Bean, Alan Shepard, Edgar Mitchell, Dave Scott, Jim Irwin, John Young, Charlie Duke, Gene Cernan, and Harrison Schmitt deployed the instruments on the lunar surface following procedures rehearsed at Johnson Space Center simulators and the Manned Spacecraft Center training programs. Deployment required leveling, coupling to regolith, and connection to the ALSEP central station for power and telemetry; operations were monitored by ground teams at facilities like Goldstone Deep Space Communications Complex and the Canberra Deep Space Communications Complex. Data downlinks were relayed via the Deep Space Network, processed at JPL and archived in repositories coordinated with the National Space Science Data Center.

Scientific Objectives and Methods

Primary scientific objectives targeted determination of lunar crustal thickness, mantle properties, core existence, and seismicity rates, informed by theories developed by researchers at Caltech and MIT and geophysical models from the U.S. Geological Survey. Methods combined time-series analysis, arrival-time picks for P-waves and S-waves, spectral analysis, and seismic tomography approaches pioneered in terrestrial studies at institutions like Lamont–Doherty Earth Observatory and Scripps Institution of Oceanography. Event classification separated shallow meteoroid impacts, deep moonquakes associated with tidal stresses linked to Earth–Moon system dynamics, and thermal quakes related to diurnal temperature cycles studied in collaborations with the National Oceanic and Atmospheric Administration. Calibration used controlled impact events and comparison with terrestrial analogs from Alaska and the San Andreas Fault studies.

Results and Findings

The experiment recorded thousands of events, revealing a layered lunar structure with a crust, an overlying megaregolith, a partially molten or solid mantle, and evidence for a small core—findings discussed in publications by D. E. Latham, H. H. Hess, and teams at MIT and JPL. Data indicated that moonquakes are less frequent but longer-duration than many terrestrial quakes, and that meteoroid bombardment produced identifiable seismic signatures similar to atmospheric impact records analyzed by Smithsonian Astrophysical Observatory. Analyses constrained crustal thickness variations beneath basins such as the Mare Imbrium and Mare Serenitatis, and provided evidence for seismic wave scattering in a highly fractured megaregolith, corroborating gravity and topography studies by Wilhelms and teams associated with the USGS. Results informed debates about lunar thermal evolution advanced by researchers from California Institute of Technology and Harvard University.

Legacy and Impact on Planetary Seismology

The Passive Seismic Experiment Package established a paradigm for planetary seismology that influenced instruments on missions such as ESA's InSight to Mars and seismometers proposed for Europa Clipper and Ganymede missions. Data archives continue to be mined by scientists at Brown University, University of California, Berkeley, Stanford University, and international groups in Japan and France. The experiment's methodology shaped seismic network design, coupling techniques with regolith, and processing algorithms later adapted by teams at JPL, ESA, and the Russian Academy of Sciences. Its legacy endures in modern studies of planetary interiors, comparative planetology curricula at MIT and Caltech, and in instrumentation development at industrial partners including Honeywell and Thales Group.
