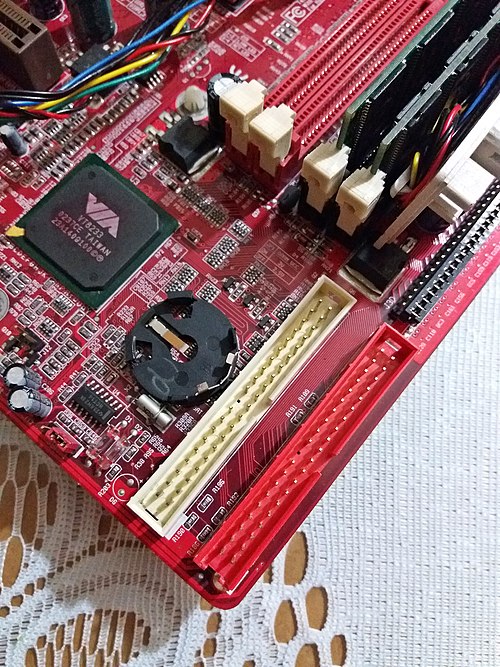

JulianVilla26 · CC BY-SA 4.0 · source
Name	Parallel ATA
Introduced	1986
Developer	Western Digital, Compaq, IBM
Superseded by	Serial ATA
Interface	Parallel bus
Connectors	40-pin IDC, 44-pin for laptops
Standards	ANSI X3.221-1994, ATA-2, ATA-3, ATA/ATAPI-4, ATA/ATAPI-6
Speed	up to 133 MB/s (ATA/133)

Parallel ATA is a legacy computer bus interface for connecting storage devices such as hard disk drives and optical drives to host systems. Developed during the 1980s, it became the dominant desktop storage interface through the 1990s and early 2000s and influenced later interfaces and storage ecosystems. The technology intersects with numerous hardware vendors and standards bodies that guided personal computing, enterprise servers, and consumer electronics during its active lifetime.

History

Parallel ATA originated from collaborative engineering among companies including Western Digital, Compaq, and IBM to standardize disk interfaces used in personal computers. Early market adoption tied it to platforms from IBM PC/AT era manufacturers and expansion by vendors such as Seagate and Maxtor. Standards development moved through industry organizations and standards bodies like ANSI and committees that produced revisions such as ANSI X3.221-1994 and later ATA revisions. The emergence of desktop ecosystems built around vendors including Intel, Microsoft-aligned PC architectures, and OEMs such as Dell cemented its ubiquity. Competing and complementary storage technologies—including the Small Computer System Interface and proprietary controller designs from companies like Promise Technology—coexisted while Parallel ATA evolved through incremental extensions.

Technical specifications

Parallel ATA is specified as a 16-bit parallel bus that transmits command, control, and data signals between a host controller and up to two devices per channel. Electrical and timing characteristics were formalized across ATA-2, ATA-3, ATA/ATAPI-4, ATA/ATAPI-6 and subsequent amendments overseen by industry and standards organizations. The protocol defined register sets, command codes, and taskfile semantics used by controllers implemented by chipset vendors such as Intel and third-party companies including Adaptec and VIA Technologies. Early PIO (Programmed Input/Output) modes required significant CPU involvement; later DMA extensions including Multiword DMA and Ultra DMA were introduced to reduce processor load and improve throughput. The interface accommodated both hard disk drives and ATAPI devices like CD-ROM and DVD drives produced by manufacturers such as Sony and Toshiba.

Connectors and cabling

Parallel ATA used a 40-pin edge connector on desktop devices and a 44-pin connector for 2.5-inch laptop drives that combined power and data signals. Ribbon cables with 40-conductor or 40-pin IDC connectors—often manufactured by companies like 3M and Molex—were standard; the 80-conductor cable variant added grounded wires to support higher Ultra DMA rates and was promoted by chipset makers including Intel for ATA/66 and above. Cable length restrictions (typically 18 inches for 40-conductor cables) constrained system layouts used by OEMs such as HP and Lenovo. Drive bays and backplane designs in servers and storage arrays by vendors like Sun Microsystems and HP Enterprise used mounting and cable routing schemes optimized for the Parallel ATA form factor.

Modes and performance

Performance modes evolved from PIO Modes 0–4 to Multiword DMA and then Ultra DMA (UDMA) modes 0–6, with theoretical peak rates culminating at ATA/133 (UDMA/133). Controller and device implementations by chipset vendors such as Intel, VIA, and SiS determined practical throughput and CPU utilization across operating systems including Microsoft Windows NT, Linux, and FreeBSD. Benchmarks from hardware publications compared Parallel ATA devices from Western Digital, Seagate, and Hitachi Global Storage Technologies across modes; UDMA modes required 80-conductor cables to maintain signal integrity at higher frequencies. Thermal, head positioning, and rotational latency characteristics from spinning media vendors influenced real-world performance compared to later solid-state devices introduced by companies like Samsung and Intel.

Device configuration and master/slave

Parallel ATA supported up to two devices per cable and used master/slave or device 0/device 1 jumper-based configuration schemes and cable-select mechanisms. Jumper settings were specified by drive manufacturers including Maxtor and Quantum; some systems relied on cable-select signaling introduced to simplify user configuration. BIOS implementations from vendors like Award Software and Phoenix Technologies exposed drive ordering and translation modes; operating systems then enumerated devices presented by controller chipsets. Enterprise systems and RAID controllers from companies such as 3ware and Adaptec often bypassed legacy master/slave constraints by providing dedicated channels or using SCSI/SAS alternatives for multi-drive topologies.

Compatibility and interoperability

Backward and forward compatibility were emphasized through ATA standards and vendor interoperability testing among manufacturers such as Western Digital, Seagate, Toshiba, and controller vendors including Adaptec and Promise Technology. Host controllers integrated into motherboards by Intel and add-in cards conformed to signaling and register-level compatibility, but mixing devices with disparate capabilities could trigger mode downgrades or require BIOS updates distributed by OEMs like Dell and Acer. ATA Packet Interface (ATAPI) allowed optical drives from Sony, LG Electronics, and Pioneer Corporation to operate over the same channel. Adapters and converters enabled Parallel ATA devices to be used with interfaces like USB and FireWire through bridges manufactured by companies such as JMicron.

Decline and legacy impact

The decline of Parallel ATA accelerated with the introduction of Serial ATA by the Serial ATA Working Group and adoption by vendors including Intel and Dell; SATA offered point-to-point links, thinner cabling, hot-plugging, and higher scalable transfer rates. Major storage suppliers and OEMs migrated product lines, while legacy systems and archival hardware continued to use Parallel ATA drives. Its design influenced command sets, device discovery, and backward compatibility philosophies in later standards and in enterprise interfaces such as Serial Attached SCSI and protocols standardized by organizations including T10 and INCITS. Collectors, refurbishment services, and retrocomputing communities still reference Parallel ATA drives from manufacturers like Western Digital and Seagate for legacy restoration and historical study.
