Panama Canal locks

Panama Canal locks
Thoroe · CC BY-SA 2.0 · source
Name	Panama Canal locks
Caption	Locks at Miraflores in the Panama Canal
Location	Panama
Coordinates	9.2833° N, 79.9167° W
Opened	1914
Owner	Panama Canal Authority
Length	variable
Width	variable
Status	operative

Panama Canal locks The Panama Canal locks are a system of lock chambers that enable maritime transit across the Isthmus of Panama by raising and lowering vessels between sea level and the artificial Gatun Lake. Conceived in the late 19th century, constructed across projects led by Ferdinand de Lesseps and later by the United States under engineers including John Frank Stevens and George Washington Goethals, the locks have been central to global maritime trade and strategic transit since opening in 1914. Administration of the canal and its locks transferred to the Panama Canal Authority following the Torrijos–Carter Treaties.

History and construction

Initial attempts to create an interoceanic passage across the Isthmus of Panama trace to proposals by Balboa era explorers and 19th-century projects by Ferdinand de Lesseps, whose failed effort under the Compagnie universelle du canal interocéanique collapsed amid disease and financial scandal. After de Lesseps’s collapse, the United States acquired rights and assets, beginning a new construction campaign in 1904 guided by John Frank Stevens and later overseen by George Washington Goethals, who applied lessons from the Panama Railroad and tropical public health efforts led by William C. Gorgas to control yellow fever and malaria. Major civil works included excavation of the Culebra Cut, construction of the Gatun Dam, and creation of the lock complexes at Miraflores and Pedro Miguel, culminating in the canal opening in 1914 with the transit of the SS Ancon.

Design and engineering

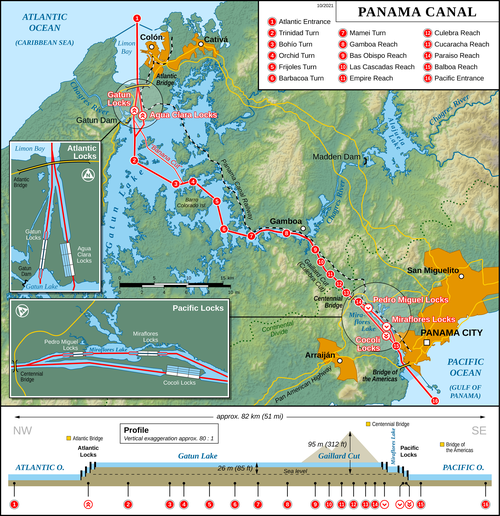

The locks employ a set of concrete lock chambers and hydraulically-controlled culverts, originally conceived to exploit water-saving gravity feed between Gatun Lake and the Pacific and Atlantic approaches. Each lock complex—Gatun Locks, Miraflores Locks, and Pedro Miguel Locks—was designed with chamber dimensions to accommodate ships of the early 20th century, known as Panamax vessels, with later standards evolving into Neopanamax for newer locks. Key engineering innovations included large electrically-driven lock machinery, massive lock gates fabricated with steelworks techniques from firms in the United States Steel Corporation era, and an approach relying on fresh-water basins rather than sea-level navigation, a principle also found in projects like the Suez Canal (contrasting tidal designs).

Operation and transit procedure

A vessel transiting the canal is assigned a transit slot managed by the Panama Canal Authority, marshaled by canal pilots drawn from the Authority’s cadre and supported by locomotives called "mules" for lateral stabilization within chambers. Typical transit uses a stepwise sequence: approach, entry into a lower chamber, closure of gates, filling via culverts to raise the vessel to the next level, or conversely draining to lower, with intermediate passages through Gatun Lake and the Culebra Cut. Coordination involves tugboats, pilots, and scheduling systems similar to operations in major ports like Los Angeles and Rotterdam to optimize tonnage flow and reduce congestion for bulk carriers, container ships, and naval vessels.

Expansion and modernization

In response to changing global shipping following the rise of larger container ships and carriers operated by companies such as Maersk and Mediterranean Shipping Company, the canal underwent a major expansion project completed in 2016 that added a new set of locks and water-saving basins to accommodate Neopanamax vessels. The project, delivered by contractors and consortia with oversight by the Panama Canal Authority and financed through toll reforms, incorporated new gate designs, rolling-lift systems, and improvements in hydraulic efficiency inspired by contemporary megaprojects like the expansion of the Suez Canal. Modernization efforts also included digital traffic control upgrades and dredging programs coordinated with international maritime organizations such as the International Maritime Organization.

Environmental and economic impacts

The locks and canal have had profound environmental and economic effects across the Isthmus of Panama and global shipping lanes. Creation of Gatun Lake transformed local ecosystems, displaced communities, and altered hydrology, while facilitating transoceanic trade routes that reshaped patterns for ports in Hong Kong, Singapore, Rotterdam, and New York. Economic benefits include lowered freight costs and growth of logistics sectors tied to shipping lines like CMA CGM, but environmental concerns remain: altered habitats affecting species noted by researchers from institutions such as the Smithsonian Tropical Research Institute, freshwater resource demands for lock operations, and greenhouse gas considerations in maritime emissions regulated by the International Maritime Organization.

Maintenance, safety, and incidents

Maintenance of the locks is continuous, requiring concrete rehabilitation, gate refurbishment, and mechanical overhauls performed by teams coordinated by the Panama Canal Authority, contractors, and international specialists. Safety incidents have included collisions, grounding events in the Culebra Cut, and rare gate failures, prompting investigations often involving maritime insurers and authorities like the United States Coast Guard when flagged vessels from countries such as Liberia or Panama are involved. Historic incidents—ranging from construction-era disease mortality during the de Lesseps period to 20th-century operational collisions—have driven the development of improved training programs, pilotage standards, and emergency response protocols modeled on best practices from major shipping centers including Hamburg and Antwerp.
