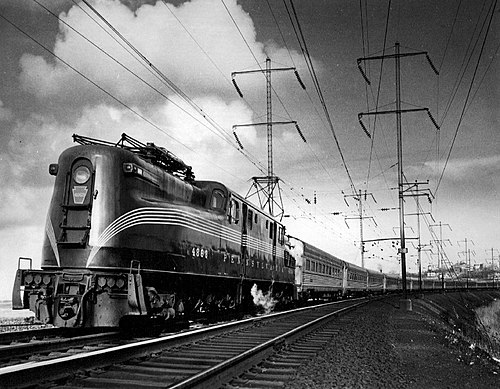

PRR GG1
Association of American Railroads (railroad trade organization)-photo is from th · Public domain · source
Name	GG1
Powertype	Electric
Builder	General Electric; Westinghouse
Builddate	1934–1943
Totalproduction	139
Operator	Pennsylvania Railroad, Penn Central, Conrail, New Jersey Transit
Wheelarrangement	2-C+C-2 (Whyte: 4-6-6-4)
Disposition	Most preserved; some scrapped

PRR GG1 is a class of electric passenger and freight locomotives developed in the 1930s for the Pennsylvania Railroad electrification program, notable for its distinctive streamlined body and long service life. Designed through collaboration among Raymond Loewy, Baldwin Locomotive Works, General Electric, and Westinghouse, the locomotives served major Northeastern corridors including Penn Station, 30th Street Station, and the New York–Washington Line. The class became an icon of American rail transportation and influenced later designs used by Amtrak, New Jersey Transit, and freight operators.

Design and development

The GG1 originated from electrification plans led by the Pennsylvania Railroad under executives like Alfred E. Perlman and engineers linked to earlier projects such as the Hudson & Manhattan Railroad and the Baltimore and Ohio Railroad electrification studies. A competition between designs from Westinghouse and General Electric produced the twin-motored, 2-C+C-2 arrangement that synthesized concepts from the FF1 prototype and the E44. Industrial designer Raymond Loewy refined the exterior with a welded body influenced by Streamline Moderne aesthetics seen in work for Studebaker, International Harvester, and Lucky Strike branding. Construction involved Baldwin Locomotive Works for final assembly and coordination with signaling standards from the Interstate Commerce Commission and substations based on Westinghouse transformer technology.

Technical specifications

Each unit used twelve 385 hp traction motors, transformers, and rectifiers supplied by General Electric and control equipment from Westinghouse, enabling continuous power collection from 11 kV, 25 Hz overhead catenary systems used on the Pennsylvania Railroad main line. The articulated 2-C+C-2 wheel arrangement distributed weight for low axle load suitable for vintage bridges on routes such as the Baldwin Locomotive Works-built lines to Harrisburg Transportation Center and the Philadelphia commuter network. Braking systems integrated Westinghouse pneumatic brakes and multiple-unit control compatible with ALCo freight consists and later EMD-hauled trains during Penn Central operations. Performance figures included top speeds exceeding 100 mph for express service on the New York-Pittsburgh Main Line and tractive effort appropriate for mail, passenger, and occasional heavy freight duties.

Service history

First delivered in 1934, the locomotives entered service on electrified corridors including the New York–Washington Line, Main Line to Harrisburg, and commuter routes radiating from Philadelphia. Units were heavily employed through wartime traffic coordination with the United States Railroad Administration and later operated under consolidation moves into Penn Central in 1968 and Conrail in 1976. They hauled named trains such as the Broadway Limited, Federal, and Congressional between New York City and Washington, D.C., and continued in secondary roles after the creation of Amtrak and the transfer of passenger services. Reliability issues were periodically addressed by rebuilds at PRR Altoona Works and modifications influenced by standards from the Association of American Railroads.

Preservation and legacy

Following retirements through the 1970s and 1980s, multiple units were preserved by institutions including the Smithsonian Institution, Museum of Transport (St. Louis), National Railroad Museum (Green Bay), and the Pennsylvania State Museum. Preserved examples appear at sites such as Baltimore and Ohio Railroad Museum, Railroad Museum of Pennsylvania, and Illinois Railway Museum, where restoration efforts reference documentation from General Electric and archive material from Pennsylvania Railroad Historical and Technical Society. The design influenced later electric locomotives produced by General Electric and Electro-Motive Division, and remains a subject in studies at University of Pennsylvania engineering programs and railway preservation conferences held by Historic American Engineering Record enthusiasts.

Cultural impact and models

The locomotives became visual icons appearing in photography collections by Ansel Adams-style railroad photographers, transit posters commissioned by Raymond Loewy-era design houses, and popular culture references in films set in New York City and Washington, D.C.. Scale models have been produced by Lionel Corporation, Athearn, Bowser, MTH Electric Trains, Bachmann Industries, and Kato, with collectors represented by groups such as the National Model Railroad Association and exhibits at the Toy Train Museum (Strasburg). Preservation societies and modelers study blueprints archived with the Smithsonian Institution and the Pennsylvania State Archives to recreate liveries from the Pennsylvania Railroad era through Conrail and New Jersey Transit use.
