Nitrocellulose

Nitrocellulose
Public domain · source
Name	Nitrocellulose
Other names	Cellulose nitrate; Collodion; Pyroxylin
Formula	variable (C6H7O2(OH)3−x(ONO2)x)n
Cas number	9004-70-0
Appearance	white to pale yellow fibrous solid or film

Nitrocellulose is a nitrated derivative of Cellulose produced by esterification of hydroxyl groups with Nitric acid and nitrogen oxides in the presence of Sulfuric acid. It forms a family of materials including low- and high-nitrate esters used as film-formers, propellants, lacquers, and explosives, with properties dependent on the degree of nitration and polymer chain length. Nitrocellulose has played roles in chemistry, Industrial Revolution, American Civil War, World War I, and World War II era technologies and continues to be relevant to Conservation and restoration science, Museum practice, and Forensics.

Composition and Chemical Structure

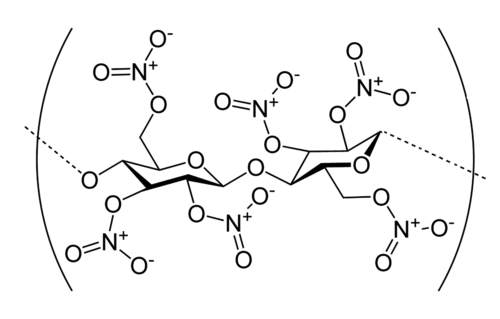

Nitrocellulose consists of a polysaccharide backbone derived from Cellulose in which one or more hydroxyl groups on the anhydroglucose unit are converted to nitrate esters (–ONO2), producing mono-, di-, and tri-nitrate substitution patterns related to the degree of substitution and impacting properties such as solubility and energetic performance. The macromolecular backbone retains the β-(1→4) glycosidic bond linkages found in native Cellulose, and the distribution of nitrate groups along the polymeric chain determines crystallinity and interaction with plasticizers like Camphor and Dibutyl phthalate. Analytical characterization typically employs Infrared spectroscopy, Nuclear magnetic resonance, X-ray diffraction, and Gel permeation chromatography to assess nitrate content, molecular weight, and conformation.

Synthesis and Manufacturing Processes

Industrial preparation follows controlled nitration of purified Cellulose from sources such as Cotton linters, Wood pulp, or Bacterial cellulose using mixtures of Nitric acid and Sulfuric acid as catalyst and dehydrating agent under temperature-controlled conditions. Processes include batch and continuous nitration reactors, quenching with cold water or Alcohol, washing to remove residual acids, neutralization with Sodium carbonate or Sodium hydroxide, and stabilization via leaching or chemical additives to remove acidic residues and metal ions such as iron and copper that catalyze decomposition. Variants include production of soluble collodion-grade nitrocellulose and insoluble gun-cotton grades for propellant manufacture; optimization is informed by standards from bodies like International Organization for Standardization and industrial practices in firms historically such as DuPont and Rohm and Haas.

Physical and Chemical Properties

Properties vary with nitrogen content (typically 10–14% for lacquer grades and up to ~13.6% for gun-cotton); higher nitrate content increases density, lowers hydrogen-bonding and elevates sensitivity to heat and shock, and reduces solubility in many organic solvents. Nitrocellulose films exhibit high gloss, good optical clarity, and rapid solvent release, while fibrous gun-cotton shows high tensile strength and rapid gas generation upon decomposition relevant to Propellant performance. Thermal decomposition pathways produce Nitrogen dioxide, Nitric oxide, and Carbon monoxide; sensitivity parameters include impact, friction, and electrostatic discharge thresholds regulated in standards from agencies such as United Nations Recommendations on the Transport of Dangerous Goods.

Historical Development and Uses

Early nitration experiments date to chemists such as Henri Braconnot and Christian Friedrich Schönbein in the early 19th century; Schönbein is credited with early discovery of flammable cotton nitrates, leading to the term gun-cotton. The material influenced developments in photography with inventors including Louis Daguerre and practitioners of Wet plate collodion process and later contributed to motion picture film manufacture used by companies like Eastman Kodak and Pathé. Military adoption for artillery propellants and small-arms cartridges occurred in the 19th century, precipitating organizational and industrial shifts during conflicts such as the Crimean War, American Civil War, and the two World Wars. Civilian applications expanded into lacquers, varnishes, nail polish, and early plastics (e.g., Celluloid), affecting industries from Automotive industry coachwork to Musical instrument finishes.

Applications (Military, Industrial, and Consumer)

Military uses include solid propellant components in small-arms and artillery charges, triple-base and double-base propellant formulations combined with Nitroglycerin and stabilizers; explosives applications leverage fast deflagration and detonation properties in munitions production by arsenals like Royal Ordnance and firms such as Allied Chemical. Industrial applications span nitrocellulose-based lacquers for Automobile finishes, wood varnishes, printing inks used by publishers including HarperCollins and Penguin Books in manufacturing contexts, adhesive formulations, and membrane filters in Laboratory apparatus. Consumer products historically included photographic collodion plates, early Motion picture film stock by Vitagraph Company of America and Metro-Goldwyn-Mayer, and novelty items; contemporary uses persist in specialty lacquers, restoration coatings in museums such as The British Museum, and model rocketry propellants developed by hobbyist communities and organizations like National Association of Rocketry.

Safety, Hazards, and Handling

Nitrocellulose is flammable and, depending on nitrate content, can be an explosive with sensitivity to heat, shock, and friction; safe handling follows guidance from Occupational Safety and Health Administration, National Institute for Occupational Safety and Health, and European Chemicals Agency with controls including grounding, bonding, temperature control, and elimination of ignition sources. Storage requires cool, dry, and well-ventilated facilities away from reducing agents and metal salts; decomposition may be autocatalytic and is mitigated by inhibitors and proper neutralization of residual acids. Waste from manufacturing and decommissioned film stock often requires controlled incineration, alkaline hydrolysis, or transfer to licensed facilities under regulations such as those enforced by the Environmental Protection Agency and national transport rules by Department of Transportation authorities.

Environmental Impact and Degradation

Environmental concerns include release of nitrate and nitrite species, acidic effluents, and volatile organic compounds during manufacture and film deterioration; aquatic impacts involve eutrophication risks mediated by nitrate runoff regulated by agencies such as United States Geological Survey and European Environment Agency. Biodegradation of nitrate esters is limited; photolytic and hydrolytic pathways lead to depolymerization and liberation of nitrogen oxides, requiring remediation strategies that may use advanced oxidation, bioremediation research involving microorganisms studied by institutions like Max Planck Society and World Health Organization guidance on pollutants. Historic nitrate film archives in institutions including the Library of Congress and British Film Institute pose long-term conservation challenges, driving digitization and chemical stabilization programs.
