Nicol prism

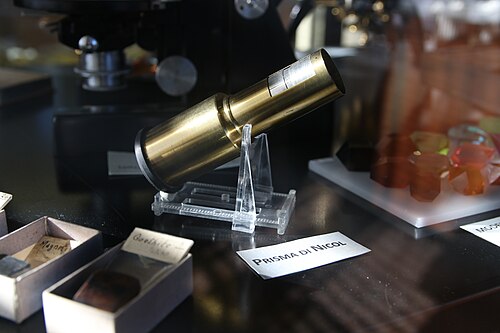

Nicol prism
Patafisik · CC BY-SA 4.0 · source
Name	Nicol prism
Inventor	William Nicol
Introduced	19th century
Application	polarization of light, polarimeter instruments
Materials	calcite, Canada balsam, glass
Country	Scotland

Nicol prism

The Nicol prism is an optical polarizer invented in 1828 by William Nicol that produced plane-polarized light for laboratory and field use. It became a foundational component in 19th-century optical instruments used by investigators associated with Royal Society, British Association for the Advancement of Science, and institutions such as University of Edinburgh and King's College London. The device played a central role in experimental work by figures like David Brewster, Augustin-Jean Fresnel, Michael Faraday, and influenced developments at establishments including Kew Observatory and industrial optics workshops in London.

History and development

The prism emerged amid competing approaches to polarization studied by Étienne-Louis Malus, Jean-Baptiste Biot, Thomas Young, and Augustin-Jean Fresnel during investigations into the nature of light. William Nicol devised the prism while working in Edinburgh to address limitations of earlier polarizers like the tourmaline plate used by Jean-Baptiste Biot and the pile of thin plates advocated by David Brewster. The Nicol prism rapidly gained adoption in precision apparatus such as instruments at Royal Institution and in gas analysis apparatus used by scientists associated with Lavoisierian chemical traditions. Debates over the interpretation of birefringence and double refraction involved experimentalists at École Polytechnique and researchers exchanging correspondence between Paris and London, where the prism's performance underpinned arguments about the corpuscular and wave theories of light.

Construction and components

A Nicol prism is built from a single crystal of calcite (Iceland spar) that is diagonally split, treated with a layer of Canada balsam, and cemented back together to form a rhomboid geometry. Crafting such prisms required suppliers of optical crystals in Iceland and cutting workshops in Glasgow and London, with instrument makers like those at R. & J. Beck and Troughton & Simms producing standardized units for laboratories and observatories. The principal components are the calcite crystal faces, the internal Canada balsam layer, and the external mounting of the rhomboid block in a rotatable holder compatible with microscopes, polarimeters by J. H. L. Vogt-style mounting, and spectrometers used in chemical analysis at institutions such as Royal Society of Chemistry-affiliated labs. Surface polishing and optical contact demanded skills similar to those practiced at Harvard College Observatory and other research observatories procuring precision optics.

Optical principles and operation

Operation rests on birefringence discovered in Iceland spar by Christiaan Huygens and analyzed further by Georges Cuvier-era experimentalists and later by Augustin-Jean Fresnel. When unpolarized light enters the crystal, it splits into an ordinary ray and an extraordinary ray traveling at different velocities and refracted differently according to the crystal's optic axis. The angled interface coated with Canada balsam (refractive index close to one of the rays) causes total internal reflection of the ordinary ray while transmitting the extraordinary ray; the reflected component is absorbed or ejected from the optical path. This yields emergent light that is plane-polarized, a property exploited in experiments by Michael Faraday on magneto-optic rotation and by Jean-Baptiste Biot in studies of optical activity. The prism's geometry enforces beam displacement and polarization purity governed by Snell’s law as applied to anisotropic media, as treated theoretically in correspondence between Fresnel and contemporaries at Académie des Sciences.

Applications and use in polarimetry

Nicol prisms were integral to polarimeters used for measuring optical rotation in samples investigated by chemists at Royal Institution and manufacturers of chemical reagents supplying Bayer-era industry. They served as analyzers in polariscopes for mineral identification at institutions such as British Geological Survey and as components in spectrometers operated at observatories including Kew Observatory and Greenwich Observatory. In laboratories conducting stereochemistry and sugar analysis—fields advanced by researchers at University of Glasgow and University of Strasbourg—the prism enabled precise determinations of specific rotation. Major experimentalists, including Louis Pasteur in crystallography contexts and Jacobus Henricus van 't Hoff in stereochemistry, relied on polarized light tools stemming from the Nicol design. The prism also found use in microscopy within collections at museums like Victoria and Albert Museum and in educational apparatus produced for Royal Society demonstrations.

Variants and modern alternatives

Later developments produced alternatives such as the Glan–Thompson prism, Wollaston prism, Glan–Taylor prism, and Polaroid sheet polarizers developed from materials researched at Polaroid Corporation and laboratories affiliated with MIT and Bell Labs. These designs use different crystal cuts, air gaps, or synthetic polarizing films and have been adopted in institutions like NASA and CERN for specialized optical systems. Advances in crystal growth at establishments like Rochester-area suppliers and anti-reflection coatings from industrial optics firms replaced many Nicol prisms where higher extinction ratios, broader spectral ranges, or more rugged housings were required. Research groups at Stanford University and Max Planck Institute for the Science of Light continue to develop polarization components building on principles first exploited in Nicol’s device.

Limitations and practical considerations

Nicol prisms have spectral, mechanical, and thermal constraints: calcite's birefringence varies with wavelength, limiting ultraviolet and infrared performance, and Canada balsam softens under heat or solvents—issues noted by technicians at Royal Observatory Greenwich and instrument shops in 19th-century London. The prisms can be bulky, fragile, and sensitive to alignment compared with modern thin-film polarizers used in industrial optics at firms like Thorlabs and research facilities such as Lawrence Berkeley National Laboratory. For historical instruments housed at museums like Science Museum, London preservation requires humidity and temperature control consistent with conservation practices by curators at British Museum and National Museums Scotland to prevent delamination and crystal damage.
