Name	Nakajima A4N

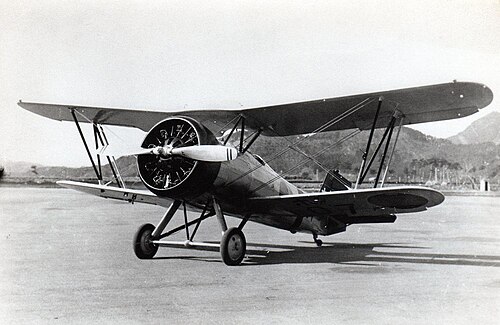

Caption	Nakajima A4N prototype in 1935
Type	Carrier-based fighter
Manufacturer	Nakajima Aircraft Company
First flight	1934
Introduced	1936
Retired	1940s
Primary user	Imperial Japanese Navy Air Service
Length	7.6 m
Wingspan	11.0 m
Height	3.2 m
Wing area	28.5 m²
Powerplant	1 × Nakajima Kotobuki radial engine
Max speed	375 km/h
Range	750 km
Service ceiling	10,000 m
Armament	2 × 7.7 mm machine guns, up to 60 kg bombs

Nakajima A4N The Nakajima A4N was a Japanese carrier-based biplane fighter developed in the mid-1930s by the Nakajima Aircraft Company for the Imperial Japanese Navy Air Service. Designed to succeed earlier types, the A4N combined a radial engine, robust airframe, and improved pilot visibility to meet Imperial Japanese Navy specifications influenced by experiences from the Shanghai Incident and evolving carrier doctrine aboard ships like Akagi and Kaga. Though quickly superseded by monoplanes such as the Mitsubishi A5M and Nakajima A6M lineage developments, the A4N represented an evolutionary step in Japanese naval aviation between the Nakajima A2N and later fighters.

Design and Development

Nakajima initiated the A4N program in response to a 1933 Imperial Japanese Navy specification calling for a single-seat carrier fighter capable of improved climb and maneuverability compared with the Nakajima A2N and contemporary types like the Hiro H1H derivatives. The prototype incorporated lessons from engagements during the First Shanghai Incident and the Second Sino-Japanese War precursors, emphasizing robustness for carrier deck operations on carriers including Hiryū and Sōryū. Designers selected the air-cooled Nakajima Kotobuki radial engine, already used in successful types such as the Nakajima A2N and Nakajima E4N, to balance reliability and maintainability compared with liquid-cooled engines employed by European designs like the Bristol Bulldog and Gloster Gladiator. Structural choices—staggered single-bay biplane wings with N-struts and duralumin spars—drew from contemporaneous practices at Supermarine and Hawker while addressing corrosive maritime conditions encountered by units based at Yokosuka Naval Air Technical Arsenal and operated from carriers like Akagi. Armament integration accommodated two synchronized 7.7 mm machine guns derived from types used on the Mitsubishi A5M prototypes and provisions for light bombs to support Second Sino-Japanese War carrier strikes.

Variants

Nakajima produced a small family of A4N variants to refine carrier suitability and performance. The A4N1 served as the initial production batch tailored for fleet service aboard carrier Akagi and Kaga alongside contemporaries like the Type 95 Ha-Go in reconnaissance support roles. Subsequent subvariants incorporated minor aerodynamic refinements influenced by feedback from frontline units at 12th Air Squadron and testing at Kasumigaura Airfield, including revised cowling and reinforced arrestor hook installations for operations on Hōshō and Kisarazu. Prototype conversions experimented with alternative propeller configurations inspired by propulsive studies at Tokyo Imperial University and engine uprates compatible with developments used later on the Nakajima Ki-27. Several A4N airframes were modified as trainers and liaison aircraft for bases at Rabaul and Truk before withdrawal.

Operational History

Entering service in 1936, the A4N equipped several carrier fighter units and port-based naval air groups including the 12th Air Fleet components assigned to the China theater around bases such as Shanghai and Nanking. Pilots who flew the A4N included veterans trained at Kasumigaura and instructors from the Imperial Japanese Naval Academy who noted its favorable maneuverability compared with earlier biplanes like the Gloster Gauntlet deployed by foreign operators in the region. The type saw limited combat in skirmishes during the Second Sino-Japanese War and provided convoy escort and fleet air defense while carriers transitioned to monoplanes such as the Mitsubishi A5M. By the late 1930s, modernization programs and escalating carrier requirements driven by developments around fleets commanded by admirals like Isoroku Yamamoto accelerated the A4N's replacement. Withdrawals from frontline carrier service occurred as units re-equipped aboard Sōryū and Hiryū with faster, higher-performance fighters; remaining A4Ns were relegated to training and second-line duties until scrapping and obsolescence by early Pacific War years.

Technical Specifications

The A4N combined conventional biplane features with a reliable Nakajima Kotobuki radial delivering approximately 580–700 hp depending on tuning, similar to powerplants used in contemporaries like the Nakajima B5N prototypes. The aircraft measured roughly 7.6 m in length with an 11.0 m wingspan and wing area near 28.5 m², enabling a service ceiling near 10,000 m and a maximum speed around 375 km/h—performance adequate against early 1930s threats such as the Gloster Gladiator but outclassed by late-decade monoplanes including the Brewster Buffalo and Curtiss Hawk 75. Operational range of about 750 km suited fleet defense and short-range interception over sea lanes between bases like Truk and Rabaul. Defensive and offensive fit comprised two synchronized 7.7 mm machine guns and light bomb loads up to 60 kg for strike missions against riverine and coastal targets, reflecting ordnance practices seen in Imperial Japanese Navy tactical doctrine manuals of the period.

Surviving Aircraft and Legacy

No complete Nakajima A4N airframes are known to survive in museum collections; remnants and parts occasionally surface in archives associated with storage facilities at former Kasumigaura and wreckage recoveries from coastal sites near Yokosuka. The A4N's principal legacy lies in its role as a transitional design informing later Nakajima and Mitsubishi fighters; aerodynamic lessons and carrier adaptation techniques influenced successors such as the Nakajima Ki-27 and early development lines that culminated in fighters operating during the Pacific War. Historians at institutions like the National Institute for Defense Studies (Japan) and curators at the Yokosuka Museum of Artillery and Naval Aviation reference the A4N when tracing Japanese naval aviation evolution from biplanes to carrier monoplanes. Category:Nakajima aircraft
