NK-33

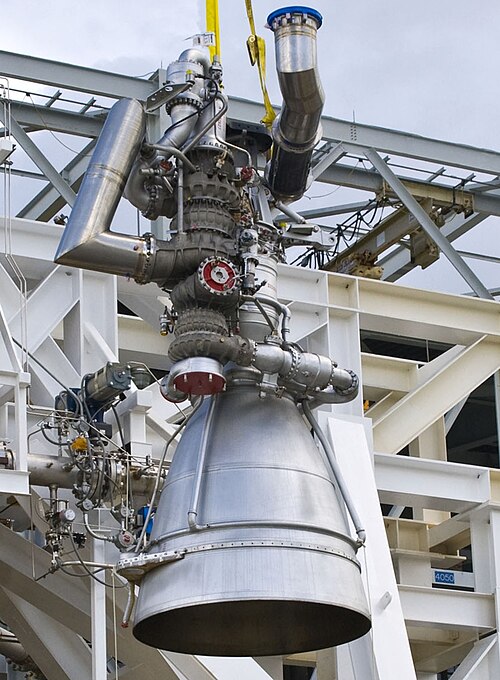

NK-33
NASA · Public domain · source
Name	NK-33
Country	Soviet Union
Designer	Nikolai Kuznetsov
First fire	1965
Type	Liquid rocket engine
Oxidiser	Liquid oxygen
Fuel	Kerosene
Cycle	Closed-cycle staged combustion
Thrust vac	1,500 kN
Isp vac	331 s
Status	Historic

NK-33 The NK-33 is a Soviet-era liquid-propellant rocket engine developed during the 1960s for the proposed N-1 super-heavy launch vehicle. It became notable for its high thrust-to-weight ratio, advanced staged combustion design, and later influence on Western launch vehicles through adaptation and reuse. The engine's development intersects with prominent figures and institutions in aerospace such as Sergei Korolev, Vladimir Chelomey, Alexei Tupolev, Khrushchev Thaw, and the design bureau led by Nikolai Kuznetsov.

Development

Development began within the Soviet aerospace industry amid competition between design bureaus including OKB-1 and OKB-456. The project executive was the Kuznetsov Design Bureau, led by Nikolai Kuznetsov, responding to requirements from the Ministry of Medium Machine Building and the strategic ambitions of the Soviet space program. Engineers pursued a closed-cycle ox-rich staged combustion approach inspired by contemporary work at institutions like TsAGI and lessons from earlier engines such as the RD-107. Political pressures from leadership figures including Leonid Brezhnev and program managers from NPO Energia influenced allocation of resources amid parallel projects like Soyuz and the lunar program overseen by Sergei Korolev's successors. The engine's development continued in secrecy as the N-1 encountered programmatic and launch failures, affecting production decisions.

Design and Specifications

The NK-33 used liquid oxygen and kerosene propellants in an ox-rich staged combustion cycle, producing approximately 1,500 kN of vacuum thrust and specific impulse around 331 s. Key components included a high-pressure combustion chamber, turbopumps with single-shaft arrangements, and regenerative cooling similar to designs from Energomash. The engine incorporated an integrated injector head influenced by research at MAI and materials technology from institutes such as TsNIIKhIMMASH. Structural design paralleled practices seen in RD-170 family work at NPO Energomash while maintaining distinct features like a compact powerhead and lightweight turbine blades developed with input from Moscow Aviation Institute researchers. Control interfaces were compatible with clustered installation, reflecting planning for the first stage of the N-1.

Operational History

Although designed for the N-1 lunar booster, the engine never flew in its original program because of the N-1's cancellation after multiple launch failures. A large stockpile of engines and unfinished units remained at production sites linked to Kuibyshev Oblast facilities and archives maintained by the Soviet space program. Decades later, several engines were recovered and evaluated by organizations including Aerojet-affiliated groups and Western aerospace companies during the post-Cold War era when access to Soviet hardware expanded. The engines saw practical use after integration into modernized launchers derived by entities such as Sea Launch partners and small launch companies pursuing heritage hardware.

Modifications and Derivatives

Western firms and Russian bureaus adapted the design into derivatives: notable are the US-marketed adaptations produced as part of cooperative ventures involving Arianespace-era suppliers and Rocketdyne-adjacent firms. The NK-33 formed the technological ancestor of the AJ26 conversion performed by Orbital Sciences Corporation for use on the Antares first stage. Other derivatives incorporated reworked turbopumps, updated control electronics from suppliers with heritage at Thales Alenia Space, and material upgrades informed by testing at Keldysh Research Center. Comparative development traces link to engines such as the RD-180 and RD-170 families in pursuing high-efficiency staged combustion and clustering strategies.

Manufacturing and Supply

Initial manufacturing occurred at plants in the Soviet Union industrial network, including fabrication hubs in Samara and machine-building facilities coordinated by the Ministry of General Machine Building. Production relied on high-precision casting and metallurgy available through foundries in Magnitogorsk and component suppliers associated with UralVagonZavod-era enterprises. After the dissolution of the Soviet Union, supply chains fragmented; inventory and documentation surfaced in export channels that engaged companies like Yuzhnoye-affiliated brokers and Western integrators. Legal and contractual disputes over ownership and export compliance involved agencies such as Roscosmos-successor organizations and private aerospace firms negotiating vintage hardware procurement.

Performance and Testing

Ground test articles underwent static firing at test ranges managed by institutions like NIP-10 and research centers under TsNIIMash. Test campaigns validated chamber pressure, turbopump performance, and ignition sequences developed by the design bureau. Reported performance metrics compared favorably to contemporary engines such as the F-1 and RS-68 in thrust-to-weight ratio, though longevity and restart capability required refinement for modern operational profiles. Post-recovery testing by Western partners included hot-fire campaigns at facilities associated with Stennis Space Center collaborators and independent test sites in Florida and Ukraine to certify adapted variants for commercial use.

Legacy and Influence on Rocketry

The engine's advanced staged-combustion approach and compact powerhead influenced later developments across organizations including NPO Energomash, SpaceX-adjacent research communities, and European design groups at Delft University of Technology. Its revival and adaptation informed the practice of repurposing legacy hardware for new launchers, analogous to repackaging heritage components seen with Delta II-era work and medium-lift strategies championed by companies like Orbital Sciences Corporation and Blue Origin. The NK-33 remains a case study in cross-cultural technology transfer, illustrating interactions among institutions including Kuznetsov Design Bureau, Roscosmos, and Western aerospace integrators, and continues to appear in archival analyses, museum exhibits, and technical curricula at universities such as Moscow State University and Massachusetts Institute of Technology.

Category:Rocket engines
