| NISAR | |
|---|---|
 NASA/JPL-Caltech · Public domain · source | |
| Name | NISAR |
| Operator | National Aeronautics and Space Administration / Indian Space Research Organisation |
| Mission type | Earth observation |
| Spacecraft bus | ISRO-derived platform |
| Launch mass | ~2,800 kg |
| Power | ~3.5 kW |
| Launch date | 2024-??-?? |
| Launch vehicle | Polar Satellite Launch Vehicle / Falcon 9 (contingency) |
| Launch site | Satish Dhawan Space Centre / Vandenberg Space Force Base |
| Orbit | Sun-synchronous orbit |
| Instruments | L-band radar; S-band radar |
NISAR is a cooperative Earth-observing satellite mission developed by National Aeronautics and Space Administration and Indian Space Research Organisation to provide high-resolution, repeat-pass radar imaging of Earth's surface. The mission combines expertise from Jet Propulsion Laboratory, NASA Goddard Space Flight Center, and multiple international research centers to monitor crustal deformation, ecosystem dynamics, and cryospheric change. Designed as a polar, sun-synchronous observatory, the project draws on decades of radar experience from missions such as Shuttle Radar Topography Mission, ERS-1, RADARSAT-2, ALOS-2, and Sentinel-1A.
Overview
NISAR is a dual-frequency synthetic aperture radar observatory that combines an L-band radar developed by Jet Propulsion Laboratory with an S-band radar provided by Indian Space Research Organisation. The platform capitalizes on heritage from Aqua (satellite), Landsat 8, Jason-3, ICESat-2, and Envisat teams for instrument calibration and mission operations. Positioned in a near-polar, sun-synchronous orbit, the mission follows precedents set by Terra (satellite) and NOAA-20 for regular repeat coverage and long-term data continuity. International science and application partners, including European Space Agency, Canadian Space Agency, and numerous universities and national laboratories, participate in algorithm development and validation.
Mission Objectives
Primary objectives target measurement of Earth's changing surface deformation, biomass, ice dynamics, and hazards. Specific aims include mapping crustal motion to inform studies linked to San Andreas Fault, Himalaya, Andes, and other tectonic provinces; quantifying forest biomass informed by prior work at Amazon Rainforest, Congo Basin, and Boreal Forests; tracking glacier mass balance exemplified by studies at Greenland Ice Sheet and Antarctic Peninsula; and monitoring surface water and wetland inundation in regions such as Ganges Delta and Mississippi River Basin. Objectives align with science priorities articulated in reports from National Research Council and strategies from Committee on Earth Observation Satellites. The mission supports hazard-response objectives important to stakeholders including United States Geological Survey, India Meteorological Department, and international disaster response agencies.
Spacecraft and Instruments

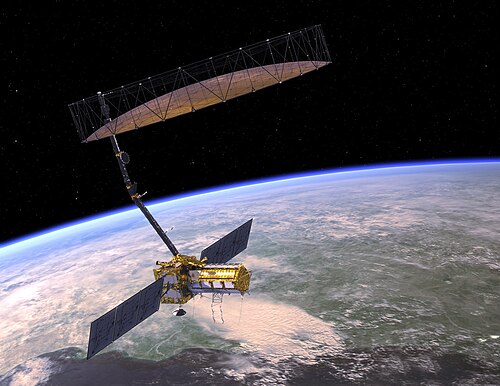

The spacecraft hosts a deployable L-band radar antenna and an S-band phased-array antenna, with radar electronics and a precision pointing and stabilization system. The L-band instrument, led by Jet Propulsion Laboratory, uses a large mesh reflector enabling longer wavelength sensitivity to vegetation structure and ground penetration akin to systems on PALSAR and ALOS. The S-band instrument, delivered by Indian Space Research Organisation, offers higher-frequency complementary observations with heritage traceable to RISAT family radar payloads. Subsystems integrate avionics developed with contributions from NASA Goddard Space Flight Center, thermal designs influenced by James Webb Space Telescope engineering practices, and radio-frequency mitigation strategies used in COSMO-SkyMed and TerraSAR-X. The payload suite includes precise orbit determination and attitude sensors informed by techniques from GRACE and GOCE missions.
Science Operations and Data Products
Science operations are coordinated through joint centers at Jet Propulsion Laboratory and Indian Space Research Organisation with contributions from science teams at institutions such as University of California, Berkeley, Massachusetts Institute of Technology, Indian Institute of Science, and California Institute of Technology. The mission will produce calibrated Level 0 through Level 4 radar data, interferometric products for deformation mapping, polarimetric datasets for vegetation structure, and time-series mosaics for cryosphere and hydrology applications. Derived products will build on algorithms developed for InSAR studies at Hayward Fault and Alaska Subduction Zone, biomass retrieval methods tested in Borneo and Yucatán Peninsula, and ice-shelf change metrics applied to Pine Island Glacier and Thwaites Glacier. Data services emulate distribution models from Earth Observing System Data and Information System and Copernicus Programme to support open access for research, operational agencies, and commercial partners.
Launch and Mission Timeline
The launch schedule targets deployment into a sun-synchronous orbit with approximately 12-day and 24-day interferometric baselines for global coverage strategies used in missions like Sentinel-1 and RADARSAT Constellation Mission. Commissioning follows a multi-month checkout period modeled after Landsat and ICESat commissioning timelines, transitioning to routine operations with planned overlaps to enable cross-calibration with Sentinel-1A, SMAP, and GRACE-FO. The nominal mission duration supports multi-year time series essential for trend detection, and contingency plans reflect launch architectures historically used by Polar Satellite Launch Vehicle and Falcon 9 launch providers.
Applications and Impact
NISAR's data are intended to impact disciplines and stakeholders by advancing monitoring of seismic hazards relevant to Alaska and Nepal, improving carbon stock estimates in regions such as Amazon Rainforest and Siberia, and enhancing flood mapping in deltas like Mekong Delta and Ganges Delta. Operational applications are expected for agencies including United States Geological Survey, Indian Space Research Organisation, National Oceanic and Atmospheric Administration, and international programs like Global Forest Observations Initiative. The mission will support scientific investigations tied to reports from Intergovernmental Panel on Climate Change and contribute to policy-relevant assessments informing multinational agreements and conservation initiatives.
