NIRCam

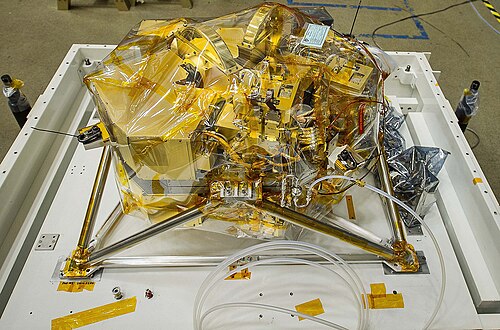

NIRCam
nasa GODDARD · Public domain · source
Name	NIRCam
Operator	NASA, STScI
Telescope type	Near‑infrared imaging
Wavelength	0.6–5.0 μm
Platform	James Webb Space Telescope
Launch	2021
Instruments	Coronagraphs, Grisms
Detectors	HgCdTe
Resolution	Diffraction-limited at 2 μm

NIRCam is the near‑infrared imaging and wavefront sensing instrument on the James Webb Space Telescope, designed to deliver high‑resolution imaging and coronagraphic observations across 0.6–5.0 μm. It was developed through a partnership led by University of Arizona with contributions from Lockheed Martin, Teledyne Technologies, and NASA Goddard Space Flight Center, and it plays a central role in the observatory's science programs organized by Space Telescope Science Institute. NIRCam provides both scientific images and observatory wavefront data used by JWST's commissioning, enabling programs proposed by teams associated with European Space Agency and Canadian Space Agency investigators.

Overview

NIRCam operates as two identical modules covering the short‑wave (0.6–2.3 μm) and long‑wave (2.4–5.0 μm) channels, each with independent optics and detector arrays. The instrument performs high‑contrast imaging for exoplanet studies with coronagraphs and supports deep extragalactic surveys targeting objects first identified in surveys like Hubble Ultra Deep Field and Spitzer Space Telescope legacy fields. NIRCam's wavefront sensing capability was decisive during the telescope alignment process involving teams from Ball Aerospace, Northrop Grumman, and Space Telescope Science Institute. Its detector technology derives from HgCdTe arrays similar to those used on Hubble Space Telescope's later instruments and builds on heritage from Kepler and WISE detectors.

Design and Instruments

The optical design uses a cold, passively cooled bench integrated with the James Webb Space Telescope's ISIM structure and includes a suite of filters, pupil masks, and grisms. Each module contains short‑wave cameras with four 2048×2048 HgCdTe detectors and a long‑wave detector; detectors were fabricated by Teledyne Technologies using processes influenced by work for JWST's NIRSpec and WFIRST concepts. Coronagraphic masks include Lyot and phase‑mask elements optimized for inner working angles comparable to separations in systems studied by observers from California Institute of Technology and University of California, Berkeley. The instrument also houses weak lenses and internal calibration lamps supplied by teams at NASA Goddard Space Flight Center and electronics designed by Lockheed Martin.

Observing Modes and Capabilities

NIRCam supports imaging, slitless spectroscopy using grisms, coronagraphy, and wavefront sensing modes used during deployment and routine checks. Imaging modes enable wide, medium, and narrowband observations suitable for programs led by proposers from Harvard–Smithsonian Center for Astrophysics, Max Planck Institute for Astronomy, and Institute for Astronomy, University of Hawaii. The grism time‑series mode has been used in transit observations conducted by teams from Massachusetts Institute of Technology and Carnegie Institution for Science. Coronagraphic performance has enabled direct imaging campaigns targeting nearby stars studied by groups at European Southern Observatory and University of Cambridge.

Calibration and Data Processing

Calibration pipelines for NIRCam data are maintained by Space Telescope Science Institute and incorporate flat‑fielding, dark current subtraction, nonlinearity correction, and detector artifact mitigation developed in collaboration with STScI instrument scientists and the NIRCam team at University of Arizona. Wavefront sensing analysis uses phase retrieval algorithms and models referenced to Optical Telescope Element alignment matrices and metrology results provided during JWST commissioning. Data reduction software interoperates with community tools used by researchers at NASA Ames Research Center, Princeton University, and European Space Agency science centers, enabling high‑level products delivered to archives accessed by investigators from Johns Hopkins University and Yale University.

Scientific Objectives and Results

NIRCam's primary science goals include detecting first‑light galaxies, characterizing stellar populations in nearby galaxies, and imaging exoplanets and circumstellar disks. Early results highlighted contributions to surveys probing formation epochs studied by groups linked to Carnegie Mellon University and University of Oxford, high‑redshift candidate confirmations complementing spectroscopy from Keck Observatory and Very Large Telescope, and coronagraphic detections complementing adaptive optics campaigns at Palomar Observatory. NIRCam observations have been integral to programs exploring reionization epoch candidates related to work by researchers at Princeton University and Columbia University, and to exoplanet atmosphere constraints coordinated with investigators at University of Toronto and University of Arizona.

Mission Operations and Integration

Operational planning for NIRCam is integrated into JWST mission schedules managed by Space Telescope Science Institute and flight operations teams at NASA Goddard Space Flight Center. Target acquisition, dither strategies, and time‑series observing modes are coordinated with community science planning involving proposers from European Space Agency, Canadian Space Agency, and multiple U.S. institutions such as University of California, Santa Cruz and University of Michigan. The instrument communicates with the observatory via the ISIM and was part of end‑to‑end tests incorporating facilities at Marshall Space Flight Center and integration efforts at Northrop Grumman.

Development and Testing

NIRCam's development spanned design, fabrication, and verification phases with cryogenic testing at chambers provided by Lockheed Martin and calibration work at facilities run by University of Arizona and NASA Goddard Space Flight Center. Subsystem teams included optical designers from Ball Aerospace and detector engineering from Teledyne Technologies, with program management involving NASA's Science Mission Directorate and partnership oversight by Space Telescope Science Institute. Environmental and performance testing verified thermal stability, optical alignment, and coronagraphic contrast, producing heritage used in future mission concepts pursued by NASA Jet Propulsion Laboratory and research groups at Stanford University.

Category:Instruments on the James Webb Space Telescope
