Matsushima-class cruiser

Matsushima-class cruiser
Public domain · source
Name	Matsushima-class cruiser

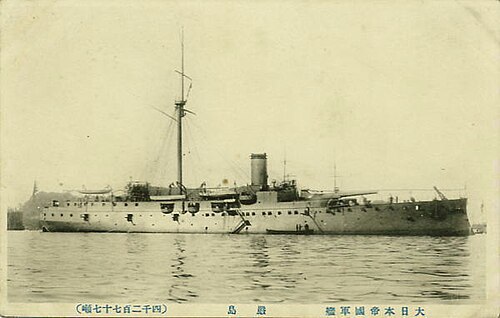

Caption	Matsushima in early service
Country	Empire of Japan
Class	Matsushima class
Type	Protected cruiser
Built	1888–1892
In service	1890s–1920s
Displacement	≈3,700–4,000 long tons
Length	126–138 m
Beam	16–18 m
Propulsion	2–3 triple-expansion engines; boilers; 2 shafts
Speed	16.5–18.8 kn (design)
Complement	up to 420 officers and men
Armament	1 × 320 mm Canet gun, 10–12 × 4.7 in guns, light guns, torpedo tubes
Armor	Deck 38–63 mm; conning tower 76 mm

Matsushima-class cruiser The Matsushima-class cruiser was a class of three protected cruisers built for the Imperial Japanese Navy in the late 1880s and early 1890s. Designed to embody the Jeune École naval doctrine advocated by some European naval thinkers, the class emphasized a single very large gun paired with high speed and numerous smaller weapons. The ships played significant roles in the First Sino-Japanese War, later served in the Russo-Japanese War era, and influenced subsequent Imperial Japanese Navy shipbuilding and strategic debates.

Design and development

The Matsushima-class arose from Japanese naval procurement led by statesmen and naval figures including Ōyama Iwao, Admiral Itō Sukeyuki, and naval engineers who negotiated with foreign yards and designers such as Émile Bertin and the French firm of Société Nouvelle des Forges et Chantiers. Seeking to implement ideas from the Jeune École and the advisory influence of Émile Bertin and other French naval architects, the Imperial Japanese Navy ordered three ships from French yards and domestic builders after tensions with the Qing dynasty over Korea increased. The design emphasized a single heavy-caliber 320 mm Canet/M1887 gun mounted forward, combined with a relatively light protective deck and high freeboard to enable commerce-raiding and decisive torpedo or artillery action, reflecting debates between proponents of Alfred Thayer Mahan-style capital ships and Jeune École advocates. Budgetary constraints, political lobbying in the Meiji government, and lessons from contemporaneous cruiser programs such as the Chiyoda-class shaped the final configuration.

Technical specifications

The Matsushima-class measured roughly 100–120 meters between perpendiculars with overall lengths of about 126–138 meters, beams of 16–18 meters, and drafts suited to East Asian operations. Displacement varied between sources but was approximately 3,700–4,000 long tons fully loaded. Propulsion comprised coal-fired boilers supplying two to three vertical triple-expansion engines driving two shafts, producing designed speeds in the 16.5–18.8 knot range, though actual performance fluctuated during trials. Electrical generation, steam auxiliaries, and coal stowage reflected late 19th-century French engineering practices, while accommodations and ship systems were adapted to operations in waters ranging from the Yellow Sea to the East China Sea and the Seto Inland Sea.

Armament and armor

The principal armament centered on a single 320 mm (12.6 inch) Canet gun in a forward barbette, supplemented by a secondary battery of 4.7-inch (120 mm) and 3-pounder/6-pounder quick-firing guns for anti-torpedo-boat defense. The ships also carried above-water torpedo tubes and small-caliber Nordenfelt or Hotchkiss guns. Armor protection relied on a protective deck with thickness varying from about 38 to 63 mm and a conning tower protected by up to 76 mm of iron or compound armor; however, the belt armor was minimal to conserve displacement for the heavy gun and speed. The concentration on a single heavy piece made the ships unique among contemporaries such as Elswick-built cruisers and contrasted with Royal Navy protected cruiser designs of the same era.

Construction and career

Three units—built by French yards and domestic facilities—entered service in the early 1890s under names tied to Japanese geography and tradition. Construction involved foreign technical assistance, shipyard work in Tōkyō and Saint-Nazaire, and commissioning ceremonies influenced by officials including Yamagata Aritomo and naval officers from both the Imperial Japanese Navy and foreign advisory staffs. The ships were assigned to the Combined Fleet and coastal squadrons, undertaking patrols, training cruises, and presence missions that reflected Japan’s expanding maritime posture after the Treaty of Shimonoseki and during the scramble for influence in Korea and Manchuria.

Operational history

During the First Sino-Japanese War (1894–1895) the Matsushima-class ships saw action in fleet engagements such as the Battle of the Yalu River and blockades of Port Arthur and other Liaodong Peninsula ports. The effectiveness of their heavy Canet gun proved mixed: it delivered powerful single shots but suffered from slow rate of fire, mechanical issues, and accuracy challenges under combat conditions, influencing outcomes at sea and in shore bombardment operations. In the intervening decades, the cruisers performed patrol, escort, and training duties through periods of modernization, participating in exercises with fleets commanded by admirals like Tōgō Heihachirō and deployments tied to Japanese interests during incidents involving China, Korea, and Russian expansions prior to the Russo-Japanese War.

Modifications and refits

Throughout their careers the Matsushima-class underwent multiple refits to address stability, gunnery, and machinery shortcomings. Modifications included replacement or reboring of secondary guns, changes to ammunition stowage and handling arrangements for the Canet mount, reinforcement of deck structures, and boiler and engine upgrades influenced by British and French naval engineering firms including John Brown & Company and Ateliers et Chantiers. Some ships received additional light quick-firing artillery and altered superstructures to improve command visibility and fire control, reflecting rapid technological change seen in contemporaneous refits of Chiyoda, Yoshino, and later Takachiho-class vessels.

Legacy and assessments

Naval historians debate the Matsushima-class’s legacy. Advocates of the Jeune École point to their conceptual boldness, influence on Japanese cruiser doctrine, and operational utility during the First Sino-Japanese War, while critics cite design compromises, limited seaworthiness, and the impracticality of a single large gun under modern fire-control conditions. The class informed subsequent Imperial Japanese Navy design shifts toward balanced armament and better armor, contributing to lessons that shaped later pre-dreadnought and armored cruiser programs. Assessments by scholars referencing figures such as Julian Corbett and naval analyses in periodicals of the pre-World War I era place the Matsushima-class as important transitional designs in East Asian naval history.
