Mastcam-Z

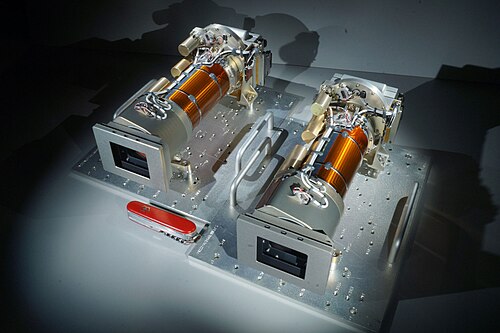

Mastcam-Z
Malin Space Science Systems · Public domain · source
Name	Mastcam-Z
Mission	Mars 2020 / Perseverance
Operator	NASA / Jet Propulsion Laboratory
Type	Panoramic imaging camera with zoom
Launch	30 July 2020
Spacecraft	Perseverance (rover)
Website	NASA Mars 2020

Mastcam-Z Mastcam-Z is a multispectral, zoomable stereo camera system aboard the Perseverance (rover) on the Mars 2020 mission. Designed and built by teams at the Malin Space Science Systems in collaboration with the Jet Propulsion Laboratory and funded by NASA, Mastcam-Z extends imaging heritage from previous instruments such as the Mastcam on Curiosity (rover) and the Mars Reconnaissance Orbiter's cameras. The instrument supports geological, atmospheric, and astrobiological investigations and contributes to target selection for the Sample Collection and Caching System.

Overview

Mastcam-Z consists of two synchronized zoom cameras mounted on the rover mast to provide stereoscopic, color, and multispectral imaging for Perseverance (rover), enabling rangefinding, terrain mapping, and context for sampling operations. The development involved partnerships among Malin Space Science Systems, Arizona State University, University of Arizona, and the Jet Propulsion Laboratory, with science goals aligned to objectives set by the Mars Exploration Program. Mastcam-Z operates in concert with instruments such as SuperCam, SHERLOC, and PIXL to provide complementary visible-light context for correlative studies.

Instrument Design and Specifications

The Mastcam-Z instrument comprises two camera heads with variable focal length optics, each containing CCD detectors, filter wheels, and electronics derived from designs used on Curiosity (rover) and heritage instruments flown on Mars Pathfinder and Mars Global Surveyor. Specifications include stereoscopic baselines tuned for topographic reconstruction, a zoom range enabling field-of-view adjustment from wide-angle to narrow-angle imaging, and multiple narrowband filters covering visible to near-infrared wavelengths. The optical train, mechanical mounts, and thermal control systems were engineered to meet requirements imposed by the Atlas V 541 launch and Martian ambient conditions, and the instrument passed integration and testing at facilities including the Jet Propulsion Laboratory and Malin Space Science Systems labs.

Imaging Capabilities and Science Objectives

Mastcam-Z provides high-resolution color imaging, multispectral narrowband imaging for mineralogic discrimination, time-lapse sequences for atmospheric studies, and stereo pairs for digital elevation model production. Science objectives draw on priorities from the Mars Exploration Program Analysis Group, enabling studies of sedimentary stratigraphy, volcanic textures, and alteration minerals linked to past aqueous processes relevant to astrobiology. The instrument's spectral filters target features used in comparisons with datasets from orbital platforms such as Mars Reconnaissance Orbiter, Mars Odyssey, and MAVEN, and with landed instruments like Curiosity (rover)'s Mastcam and Perseverance (rover)'s other payload elements.

Calibration and Operations

Preflight calibration used facilities at Malin Space Science Systems and the Jet Propulsion Laboratory including radiometric, geometric, and spectral tests against standards traceable to National Institute of Standards and Technology protocols. In-flight calibration employs views of onboard targets, observations of Phobos and Deimos occultations, and sky-flat sequences to monitor detector response, pointing, and vignetting. Operations are coordinated by the Mission Operations Center at Jet Propulsion Laboratory with science planning inputs from teams at Arizona State University, Smithsonian Astrophysical Observatory, and other partner institutions. Mastcam-Z command sequences integrate with rover navigation, arm operations, and sampling timelines overseen by the Mars 2020 Science Team.

Mission Role on Mars 2020 (Perseverance)

On Perseverance (rover), Mastcam-Z provides context imaging for site reconnaissance, support for selecting caching locations for the Mars Sample Return architecture, and documentation of sample sites and drilling activities. It contributes to landing-site assessment tied to Jezero Crater exploration, participates in coordinated campaigns with SuperCam for remote geochemical inference, and aids helicopter operations for Ingenuity (helicopter) by supplying surface characterization and terrain models. Mastcam-Z data support cross-instrument calibration and long-term monitoring relevant to goals articulated by NASA and participating science institutions.

Data Products and Processing

Mastcam-Z produces raw image frames, radiometrically corrected images, stereo-derived digital elevation models, multispectral reflectance products, and mosaics for context mapping. Data are processed through pipelines at the Planetary Data System nodes, with level products adapted for use by the Mars 2020 Science Team, community scientists at institutions such as University of Arizona and Arizona State University, and public archives hosted by NASA. Processing steps include bias/dark subtraction, flat-fielding, geometric correction, photometric normalization, and georeferencing tied to rover localization products from Rover Localization and Mapping efforts.

Results and Discoveries

Mastcam-Z has yielded high-fidelity color panoramas and stereophotogrammetric maps revealing stratigraphic architectures, cross-bedding, and sedimentary structures within Jezero Crater, informing hypotheses about ancient fluvial and lacustrine environments and potential biosignature preservation. Combined analyses with SHERLOC, PIXL, and SuperCam have identified alteration signatures and candidate sampling targets, refined depositional models, and constrained paleohydrologic scenarios. Atmospheric observations from Mastcam-Z have characterized dust opacity, cloud episodes, and diurnal aerosol cycles contributing to comparative studies with InSight and MAVEN atmospheric datasets. Continued operations promise expanded contributions to the Mars Sample Return campaign and to comparative planetology studies coordinated among NASA, international partners, and the wider planetary science community.
