| Mark 54 Lightweight Torpedo | |
|---|---|
 U.S. Navy photo by Mass Communication Specialist Seaman Cory Rose · Public domain · source | |
| Name | Mark 54 Lightweight Torpedo |

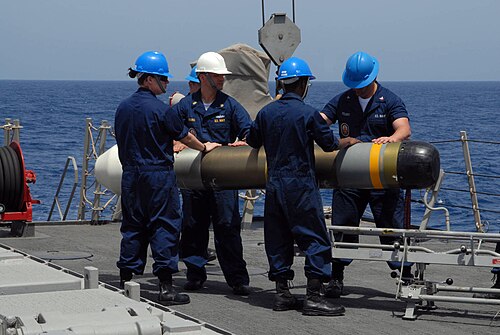

| Caption | Mk 54 torpedo being loaded |
| Origin | United States |
| Type | Lightweight anti-submarine torpedo |
| Used by | United States Navy; allied navies |
| Manufacturer | Raytheon Technologies |
| Weight | 276 lb (125 kg) |
| Length | 8 ft 6 in (2.6 m) |
| Diameter | 12.75 in (324 mm) |
| Warhead | 96.8 lb (43.9 kg) blast-fragmentation |
| Engine | Otto fuel II; reciprocating external combustion |
| Guidance | Active/passive acoustic homing; digital signal processor |
| Range | >10,000 yd (9,144 m) |
| Speed | >30 kn |
| Service | 2004–present |
Mark 54 Lightweight Torpedo
The Mark 54 Lightweight Torpedo is an American 12.75-inch anti-submarine weapon developed for use from surface ships, helicopters, and fixed-wing aircraft. It integrates technologies from legacy Mark 46 torpedo and Mark 50 torpedo programs to address modern threats posed by conventional and nuclear-powered submarines, unmanned underwater vehicles, and littoral noise environments. Designed to operate with platforms such as the MH-60R Seahawk, P-8A Poseidon, and frigates of NATO navies, the torpedo emphasizes modularity, affordability, and interoperability with allied systems.
Development and Design
Development began in the late 1990s to replace aging stocks of Mark 46 torpedo inventories and to incorporate signal processing advances from the Mark 50 torpedo program. The program office at the Naval Sea Systems Command coordinated with contractors including Raytheon Technologies and earlier prime AlliedSignal/Hughes Aircraft Company elements. Integration efforts aligned with doctrine from United States Navy antisubmarine warfare units and interoperability requirements set by NATO maritime committees.
Design objectives emphasized acoustic counter-noise performance in littoral zones like the Persian Gulf and South China Sea, reduced lifecycle costs, and compatibility with legacy launchers such as the Mark 32 Surface Vessel Torpedo Tubes and aerial sonobuoy interfaces used by Patrol Squadron (VP) assets. The Mk 54’s modular acoustic head and signal processing unit allowed reuse of the Mark 46 warhead and propulsion while incorporating the high-frequency transducers and digital processing inspired by the Mark 50 system. Sea trials involved the Naval Undersea Warfare Center and test ranges off Point Loma and Patuxent River.
Specifications
The torpedo measures approximately 8 ft 6 in in length with a 12.75-inch diameter to fit standard lightweight torpedo tubes and physical handling equipment aboard Arleigh Burke-class destroyer derivatives and small craft. It weighs roughly 276 lb and carries a 96.8 lb blast-fragmentation explosive comparable to earlier lightweight designs. Propulsion uses Otto fuel II-fed piston or reciprocating external combustion technology derived from legacy designs. Performance parameters include speeds exceeding 30 knots and effective engagement ranges over 10,000 yards in optimal conditions, subject to acoustic environment and target maneuvers. The guidance suite integrates active sonar, passive acoustic homing, and onboard signal processing algorithms validated by Naval Research Laboratory simulations and sea tests.
Operational History
Operational deployment began in the early 2000s with the United States Navy fielding Mk 54s aboard Arleigh Burke-class destroyer, Ticonderoga-class cruiser, and Littoral Combat Ship platforms, and embarked on SH-60 Seahawk and MH-60R Seahawk helicopters. The torpedo saw use in multinational exercises such as RIMPAC and NATO antisubmarine drills in the North Atlantic Treaty Organization area of operations. Export and cooperative logistics enabled allied services including navies of Australia, United Kingdom, and Japan to integrate Mk 54 stocks with their aviation assets and frigate classes. Reports from fleet units highlight performance improvements against quiet diesel-electric submarines operating in shallow water near archipelagic regions such as the East China Sea and Mediterranean Sea.
Guidance and Countermeasures
The Mk 54’s guidance mixes active pinging and passive acoustic detection to classify and home on targets in reverberant littoral environments, leveraging digital signal processing techniques advanced in Naval Research Laboratory and modeling from Stennis Space Center datasets. Operators can utilize variable-depth strategies and coordinate with sonobuoy patterns deployed by P-8A Poseidon and rotary-wing platforms. Defeating countermeasures such as noise-makers, decoys, and hull-mounted masking systems used by modern submarines—seen in inventories of forces like Russian Navy and People's Liberation Army Navy units—relies on adaptive algorithms, signal discrimination, and salvo tactics coordinated with surface sonar and magnetic anomaly detection from allied aircraft. Hard-kill testing informed tactics published in Joint Publication exercises and fleet tactical doctrine.
Variants and Modifications
Incremental improvements produced software and hardware updates to the Mk 54’s seeker, battery, and guidance processor. Block upgrades addressed reliability, battery life, and acoustic sensitivity driven by combatant command feedback from U.S. Pacific Fleet and U.S. Fleet Forces Command deployments. Integration packages were developed for specific platforms: helicopter-launched pylons for MH-60R, internal bay modifications for P-8A Poseidon, and launcher adaptors for allied frigate classes such as Anzac-class frigate and FREMM variants. Research efforts explored hybrid propulsion and improved insensitive munitions warheads in cooperation with Defense Advanced Research Projects Agency and defense laboratories.
Operators and Deployment
Primary operator remains the United States Navy, with secondary operators including the navies of Australia, United Kingdom, Japan, Netherlands, and other NATO members through Foreign Military Sales and cooperative logistics agreements. Deployment modes include ship-launched from lightweight torpedo tubes, airborne release from MH-60R, and fixed-wing employment from P-8A Poseidon. Global basing locations with reported Mk 54 inventories encompass facilities at Naval Station Norfolk, Naval Air Station Whidbey Island, HMAS Albatross, and allied forward operating sites in the Indo-Pacific and Mediterranean theaters.
Procurement and Production
Procurement handled through Defense Logistics Agency contracting and program management by Program Executive Office, Unmanned and Small Combatants elements in coordination with Naval Sea Systems Command. Prime contractor production transitioned to Raytheon Technologies following predecessor company consolidations. Contracts emphasized recurring buys to replace legacy inventories and support allied sales, with cost-per-unit and sustainment terms negotiated under multi-year procurement frameworks. Industrial base considerations included component sourcing from US and allied suppliers to maintain readiness and meet surge production requirements during exercises and contingency operations.
