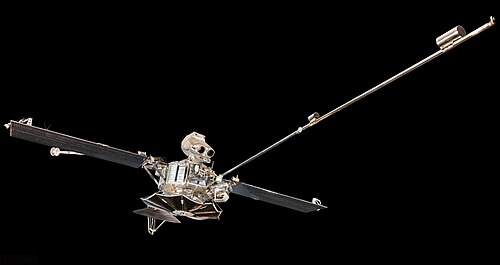

Mariner 10

Mariner 10
National Air and Space Museum · CC0 · source
Name	Mariner 10
Mission type	Flyby
Operator	NASA
Launched	November 3, 1973
Launch site	Cape Canaveral Air Force Station
Manufacturer	Jet Propulsion Laboratory / Lockheed Martin
Mass	973 kg (dry)
Power	Solar panels
Programme	Mariner program

Mariner 10 Mariner 10 was an unmanned spacecraft probe operated by NASA and developed by the Jet Propulsion Laboratory and Ames Research Center to explore Venus and Mercury. It executed the first successful gravity-assist maneuver in interplanetary history to redirect a spacecraft, combining optical, magnetometer, and plasma instruments to return the first close-up images of a terrestrial planet other than Earth. The mission built on earlier Mariner program experience and set technical and scientific precedents used by later missions such as Voyager 1, Voyager 2, and Magellan.

Background and mission objectives

The mission emerged from 1960s and early 1970s planning at NASA and the Jet Propulsion Laboratory to extend the achievements of Mariner 2, Mariner 4, and Mariner 6 and 7 by targeting the innermost planet, Mercury, after a flyby of Venus. Primary objectives included characterizing Mercury's surface geology, mapping topography, determining atmospheric properties, measuring magnetic fields, and sampling charged-particle environments to address questions raised by Pioneer 10 and planetary science debates in forums such as the National Academy of Sciences. The team included scientists from the California Institute of Technology, Massachusetts Institute of Technology, Stanford University, and University of California, Berkeley, coordinated with instrument contributions from the Goddard Space Flight Center and the Jet Propulsion Laboratory.

Spacecraft design and instruments

The spacecraft bus used a three-panel solar array and a high-gain antenna, derived from earlier Mariner program designs and engineering practices at Jet Propulsion Laboratory and Lockheed Martin. Key instruments comprised a dual-channel television camera system developed by the Jet Propulsion Laboratory imaging team, an ultraviolet photometer from NASA Goddard, an infrared radiometer from Ames Research Center, a magnetometer developed with scientists from Stanford University and NASA Goddard, a plasma instrument suite with teams from University of California, Los Angeles and University of Iowa, and a charged-particle telescope developed with participation from Johns Hopkins University Applied Physics Laboratory. Attitude control relied on star trackers and sun sensors, with guidance and navigation by the Deep Space Network of NASA and onboard computers influenced by work at Caltech.

Flight profile and trajectory

Launched on a Titan IIIE rocket from Cape Canaveral Air Force Station in November 1973, the probe performed a mid-course trajectory to perform a gravity-assist at Venus in February 1974, utilizing techniques contemporaneous with trajectories studied for Mariner 5 and later employed by Galileo and Cassini–Huygens. The Venus gravity assist altered heliocentric energy and inclination, enabling multiple encounters with Mercury in 1974 and 1975 without the heavy propellant requirements of direct insertion, echoing trajectory concepts evaluated at Jet Propulsion Laboratory and taught in orbital mechanics courses at Massachusetts Institute of Technology. The spacecraft executed three close flybys of Mercury on March 29, 1974, September 21, 1974, and March 16, 1975, each timed using navigation support by the Deep Space Network and flight dynamics teams at Jet Propulsion Laboratory.

Mercury encounters and scientific results

During the three flybys, the spacecraft acquired the first near-surface images and magnetic field measurements of Mercury, returning data that reframed understanding of rocky planets, complementing studies of Venus by Mariner 2 and imaging work by Venera missions. Imaging by the television cameras revealed a heavily cratered surface with extensive scarps and tectonic features, prompting geological interpretations by researchers at California Institute of Technology and University of Arizona that suggested global contraction. Magnetometer data indicated a significant intrinsic magnetic field, surprising planetary scientists at institutions such as Stanford University and stimulating comparative studies with Earth and Mercury's unexpected dynamo implications explored at Massachusetts Institute of Technology. Ultraviolet and infrared measurements constrained the existence and composition of any tenuous exosphere, with input from teams at NASA Goddard and University of Colorado Boulder on sputtering and surface-bound exosphere processes. Plasma and charged-particle instruments characterized the solar wind interaction and bow shock near Mercury, producing results cross-referenced with solar wind studies from Pioneer missions and solar physics work at Harvard–Smithsonian Center for Astrophysics.

Legacy and impact on planetary exploration

The mission demonstrated the practical use of gravity-assist maneuvers and multi-target flyby strategies, influencing mission architectures for Voyager program, Galileo, Cassini–Huygens, and MESSENGER. Scientific discoveries about Mercury's geology, magnetosphere, and exosphere reshaped models developed at NASA Goddard, Jet Propulsion Laboratory, Stanford University, and Caltech and motivated follow-up missions including MESSENGER and BepiColombo involving the European Space Agency and Agenzia Spaziale Italiana. Engineering lessons in thermal control, solar power near the Sun, and radiation-hardening informed spacecraft design at Lockheed Martin, Northrop Grumman, and industry partners. The mission's data archives at NASA Planetary Data System and curated collections at Jet Propulsion Laboratory continue to support planetary science research and educational programs at institutions like University of Arizona and Arizona State University.
