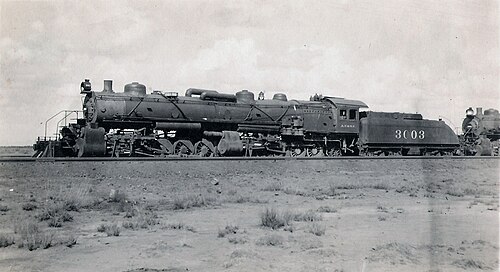

Harold Bartle Phelps Sr. · Public domain · source
Name	Mallet locomotive
Powertype	Steam
Designer	Anatole Mallet
Builddate	1884–mid 20th century
Totalproduction	Various
Wheelarrangement	Compound articulated
Locale	Worldwide

Mallet locomotive The Mallet locomotive is a type of articulated steam locomotive designed for heavy freight and steep grades, combining compound steam expansion with a flexible frame. Conceived by Anatole Mallet, it influenced rail transport in Europe, United States, South Africa, India, and Argentina and played a role in industrial projects such as mining, logging, and wartime logistics in World War I and World War II. Early proponents included builders like Societé Alsacienne de Constructions Mécaniques, Baldwin Locomotive Works, and Škoda Works, while operators ranged from national railways like the Chemins de fer de l'État to private concerns such as the Colorado Fuel and Iron Company.

History and development

Anatole Mallet patented the articulated compound concept in 1884 while working in France, proposing separate engine units to negotiate tight curves on lines such as the Swiss Alps rack and adhesion routes. Early adoption occurred on the Chemins de fer de l'Est and in industrial networks of the United Kingdom and Germany, with builders including Krauss-Maffei and Henschel producing prototypes for mountainous terrain and heavy mineral traffic. By the early 20th century demand for higher tractive effort led companies like Baldwin Locomotive Works and ALCO to adapt the design for American railroads including the Southern Pacific Railroad and the New York Central Railroad, while colonial and national systems in India and South Africa ordered variants suited to metre-gauge and Cape gauge lines. Wartime exigencies in World War I and World War II drove further production for military supply lines and reconstruction projects overseen by agencies such as the United States Army Transportation Corps and the British War Department.

Technical design and operation

The Mallet combines a rigid rear engine frame carrying the high-pressure cylinders and boiler with a pivoting front engine frame carrying low-pressure cylinders, allowing articulation for curves on routes like the Darjeeling Himalayan Railway and the Transvaal mineral lines. Early designs used compound expansion—high-pressure steam exhausted to larger low-pressure cylinders—enhancing thermal efficiency compared with simple-expansion locomotives used by the Great Western Railway and Pennsylvania Railroad. Articulation mechanisms evolved from plain pivots to radial trucks influenced by work at Practical Steam Co. and research at Stephenson Works, while valve gear arrangements drew on patents and practice from Walschaerts valve gear and Stephenson's valve gear. Boiler pressure, superheating, and feedwater systems paralleled innovations in Locomotive boilers pioneered by builders such as North British Locomotive Company and Vulcan Foundry.

Variants and adaptations

Variations include original compound Mallets, later simple-expansion "Mallets" or "Mallet-type" articulated locomotives like those developed for the Union Pacific Railroad and the Canadian Pacific Railway, and tank-configured examples used by regional lines such as the Kenya and Uganda Railway. Narrow-gauge adaptations served networks including the Ffestiniog Railway and the Ferrovia Buenos Aires al Pacifico, while heavy standard-gauge articulateds such as the 2-6-6-2 and 2-8-8-2 classes were built for the Southern Pacific Railroad and Norfolk and Western Railway. Specialized forms addressed logging by companies like the Sierra Nevada Wood and Lumber Company and sugar-cane plantations in Mauritius, and military field railways utilized simplified designs by contractors associated with the Royal Engineers and the Red Army.

Notable examples and operators

Prominent operators included the Southern Pacific Railroad with its articulated fleet used on the Tehachapi Loop and the Norfolk and Western Railway famed for mountain freight operations in the Appalachian Mountains. European users such as the Chemins de fer du Nord and the Austrian Federal Railways deployed Mallet types on Alpine and Carpathian routes, while South African Railways operated large articulateds on the Drakensberg and Karoo lines. Preserved examples are associated with heritage institutions like the National Railway Museum (UK), the California State Railroad Museum, and the TCDD Open Air Steam Locomotive Museum in Turkey, and featured in exhibitions at venues including the Science Museum, London.

Performance and operational role

Mallets excelled at low-speed, high-tractive-effort tasks such as banking, helper service, and hauling heavy mineral trains over steep gradients found in the Rocky Mountains, Alps, and Himalayas. Compound versions achieved fuel and water economy on long runs compared with simple expansion freight engines on lines like the Great Northern Railway (U.S.), though maintenance complexity and the advent of powerful diesel-electric locomotives from makers like EMD and General Electric reduced their later utility. In service profiles that demanded curve negotiation and axle load distribution, Mallets outperformed many rigid-frame machines deployed by operators such as the Canadian National Railway and the Ferrovie dello Stato Italiane.

Preservation and legacy

Numerous preserved Mallet-type locomotives survive at museums and heritage lines in United States, United Kingdom, South Africa, and India, where groups like the National Railway Museum (India) and private preservation societies undertake restoration and operating demonstrations. Academic and technical analysis by institutions such as the Institution of Mechanical Engineers and publications from The Railway Magazine have chronicled their engineering significance, while surviving examples influence replica projects and educational programs at organizations like the Heritage Railway Association. The Mallet concept also informed later articulated designs including the Garratt and Fairlie systems used worldwide.
