| MU90 Impact | |
|---|---|
 Rama · CC BY-SA 2.0 fr · source | |
| Name | MU90 Impact |

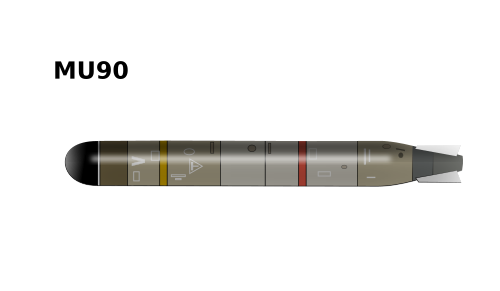

| Caption | MU90 lightweight torpedo |
| Origin | France/Italy |
| Type | Lightweight anti-submarine torpedo |
| Service | 1999–present |
| Used by | See section on operators |
| Designer | Direction générale de l'Armement, Whitehead Alenia Sistemi Subacquei |
| Design date | 1980s–1990s |
| Manufacturer | MBDA, Thales Group, Leonardo S.p.A. |
| Production date | 1993–present |
| Weight | ~305 kg |
| Length | 2.85 m |
| Diameter | 324 mm |
| Range | up to 23 km (depending on mode) |
| Speed | >29 knots (various modes) |
| Warhead | high-explosive shaped charge |
| Guidance | active/passive acoustic homing, wire-guided capability |
| Launch platforms | surface ships, helicopters, maritime patrol aircraft |
MU90 Impact The MU90 Impact is a European lightweight anti-submarine torpedo developed in the late Cold War and fielded from the late 1990s. Designed for modern littoral and deep-water anti-submarine warfare, it integrates acoustic processing, propulsion, and warhead technologies to engage diesel-electric and nuclear submarines. The project involved multinational industry and procurement programs across France, Italy, Germany, Australia, and other naval forces.
Development and Design
Development began as a cooperative program involving Direction générale de l'Armement and industrial partners including Whitehead Alenia Sistemi Subacquei and later consolidated under companies such as Thales Group and MBDA. The program addressed shortcomings identified during exercises involving Royal Navy and United States Navy anti-submarine operations against advanced Soviet Navy and post‑Cold War submarine classes. Design goals emphasized compact dimensions compatible with rotary‑wing stores on platforms like the AgustaWestland AW101 and fixed‑wing stores on maritime patrol aircraft such as the P‑3C Orion and Breguet Atlantic. Engineering focus included a low acoustic signature propulsion system, advanced signal processing derived from research at institutions including Centre National d'Études Spatiales-linked laboratories and cooperation with NATO test ranges like the Atlantic Undersea Test and Evaluation Center. Industrial consolidation during the 1990s involved mergers and procurements coordinated with defense ministries of France, Italy, Germany, Netherlands, and procurement agencies in Australia.
Technical Specifications
The MU90 features a compact 324 mm diameter and approximately 2.85 m length to fit standard lightweight torpedo tubes and helicopter weapon bays. Propulsion employs a closed‑cycle pump‑jet or low‑noise motor designed to reduce cavitation signatures measured during trials with NATO acoustic analysts and recorded against targets similar to the Kilo-class submarine and modern Type 212 submarine. Guidance integrates active and passive acoustic homing with onboard digital signal processors adapted from sonar research at Thales Underwater Systems and allows wire guidance for mid-course updates compatible with link systems used by Royal Australian Navy and French Navy platforms. The warhead is a focused high‑explosive shaped charge optimized to defeat pressure‑hull designs found on Akula-class submarine and conventional diesel classes. Performance envelopes list ranges up to ~23 km and speeds exceeding 29 knots in sprint modes, variable with battery technology developments tied to European suppliers and comparisons with legacy systems like the Mark 46 torpedo and Mark 54 torpedo.
Operational Use and Deployments
The MU90 entered service with navies including French Navy, Italian Navy, Royal Australian Navy, Royal Norwegian Navy, and others following multinational procurement agreements. Deployments span frigates such as Aquitaine-class frigate and FREMM multipurpose frigate, surface combatants equipped with torpedo launchers and helicopters including the NH90 and Sikorsky S-70 Seahawk derivatives. Use in combined exercises has paired MU90-equipped units with maritime patrol aircraft like the P-8 Poseidon and anti-submarine warfare helicopters during NATO exercises such as Exercise Formidable Shield and bilateral drills with United States Navy units. Shipborne combat systems integration involved combat management systems from Thales Group, Lockheed Martin, and Leonardo S.p.A. partners for fire control and targeting.
Tactical Effectiveness and Performance
Operational evaluations and exercise reports highlight the MU90’s ability to engage quiet diesel-electric submarines operating in littoral environments, particularly when combined with modern sonar arrays aboard Type 212 submarine-tracking surface ships and variable-depth sonar from helicopters. Acoustic homing and low self-noise permit engagement in high‑clutter environments similar to those encountered in the Baltic Sea and Mediterranean Sea. Comparative trials with Mark 46 torpedo and Sting Ray torpedo data sets indicate superior seeker sensitivity against low radiated‑noise targets, improving kill probability in shallow water ASW scenarios. Integration with airborne sonar and sonobuoy networks from platforms such as the P-3C Orion enhances mid-course targeting using wire guidance and datalink updates.
Countermeasures and Survivability
Countermeasures studied include decoy systems employed by modern submarines like the Virginia-class submarine and Russian designs. MU90’s signal processing incorporates adaptive filtering and target discrimination capabilities developed from NATO research programs to reduce susceptibility to towed decoys and acoustic jammers used in exercises with units from the Royal Navy and Russian Navy. Survivability against counter-torpedo systems and hard-kill defenses has been assessed in simulation environments used by NATO Undersea Research Centre and national test ranges, showing reliance on stealthy approach profiles and autonomous re-acquisition algorithms to mitigate countermeasure deployment.
Export, Acquisition, and Operators
Export and acquisition have followed formal governmental agreements among program nations. Operators include France, Italy, Australia, Norway, Poland and others that procured MU90s through national defense procurement agencies and multinational contracts. Industrial partnerships with MBDA, Thales Group, and Leonardo S.p.A. facilitated licensed production and logistics support arrangements similar to other European cooperative programs such as the Eurofighter Typhoon and Horizon-class frigate collaborations. Continued upgrades and procurement decisions are influenced by exercises with NATO partners and evolving submarine threats in regions like the North Atlantic and South China Sea.
