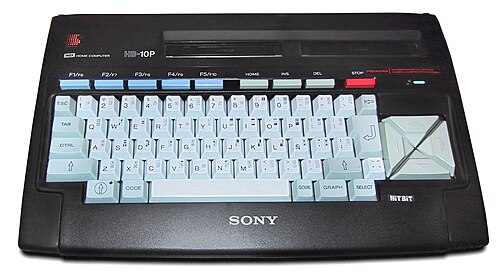

Sony_hitbit_10p.jpg: Doppelgangland derivative work: User:Ubcule · Public domain · source
Name	MSX
Developer	ASCII Corporation; Microsoft
Released	1983
Discontinued	1990s
Type	Home computer standard
Cpu	Zilog Z80A
Media	ROM cartridge; cassette tape; floppy disk
Os	MSX BASIC; MSX-DOS
Predecessor	None
Successor	None

MSX was a standardized home computer architecture launched in the early 1980s as a collaborative platform to unify disparate personal computer implementations across Japan, Europe, and Latin America. Conceived by Kazuhiko Nishi of ASCII Corporation in partnership with Bill Gates and Microsoft, the platform aimed to create an open hardware specification adopted by multiple manufacturers including Sony, Panasonic, Sega, Sanyo, and Philips. MSX combined standardized hardware, cartridge-based software distribution, and an extended BASIC interpreter to support gaming, education, and home productivity in markets such as Japan, Netherlands, Brazil, Spain, and South Korea.

Overview

MSX defined a common hardware and firmware baseline so that software and peripherals could run across machines from different brands. The specification centered on a Zilog Z80A CPU and a unified ROM image containing MSX BASIC, enabling immediate program execution from a command prompt similar to other 8-bit systems. The platform’s cartridge slot architecture encouraged distribution of commercial titles alongside cassette and floppy disk publishing used by firms like Microsoft and Konami. MSX’s ecosystem influenced companies such as Toshiba, Sharp Corporation, Victor Company of Japan (JVC), and National Semiconductor through interoperable expansion and media compatibility.

History

MSX originated from meetings between ASCII executive Kazuhiko Nishi and Microsoft executives including Bill Gates and Paul Allen aiming to avoid incompatible consumer machines fragmenting software markets in Japan. Announced publicly in 1983, the standard rapidly garnered endorsements from electronics makers such as Sony Corporation, Panasonic Corporation (formerly Matsushita Electric Industrial Co., Ltd.), Sega Enterprises, and Sanyo Electric Co.. Early promotion involved trade shows and magazine partnerships including ASCII Corporation publications and demonstrations in venues like Tokyo Big Sight and electronics retailers in Akihabara. Subsequent revisions—MSX2, MSX2+, and MSX Turbo R—were ratified to extend graphics, sound, memory, and CPU features, with contributors including Yamaha Corporation for audio chips and Microsoft Japan for firmware. Market penetration varied: strong in Japan and Brazil with companies like Gradiente licensing units, modest in Europe, and limited in North America.

Technical specifications

The baseline MSX architecture specified a Zilog Z80-family central processor, typically the Z80A at clock rates around 3.58 MHz, supported by video display processors such as the Texas Instruments TMS9918 derivatives for original models and the Yamaha V9938 for MSX2. Sound hardware often featured the General Instrument AY-3-8910 PSG or the Yamaha YM2149; later systems incorporated the Yamaha YM2413 FM synth in MSX-MUSIC implementations. Memory maps standardized RAM and ROM banks to allow cartridge and slot expansions; typical configurations ranged from 8 KB to 64 KB of RAM in first-generation units and far larger in revisions. Graphics capabilities evolved from 256×192 resolution with 16 colors to enhanced tile, sprite, and bitmap modes, hardware scrolling, and vertical retrace features. Storage interfaces included cassette interfaces compatible with Commodore-style recorders, floppy disk controllers (FDC) aligned with NEC and Fujitsu drives, and ROM cartridge ports leveraging standardized bus signals. Firmware included MSX BASIC in ROM with standardized BIOS calls to abstract hardware differences, enabling cross-vendor software compatibility.

Software and operating systems

MSX software spanned commercial games, educational titles, and productivity applications. Major game developers such as Konami, Hudson Soft, Compile, HAL Laboratory, and Taito Corporation produced notable releases, some of which later ported to consoles like the Nintendo Entertainment System and Sega Master System. The standard supported cartridge-based releases and tape-based distribution, while disk-based operating systems such as MSX-DOS—influenced by CP/M and developed with Microsoft involvement—offered file systems, command-line tools, and developer utilities. Firmware-level MSX BASIC provided graphics and sound commands, stream I/O, and extension hooks; third-party languages and development environments included assemblers, Pascal, and C compilers produced by firms like Microsoft Japan and Hudson Soft.

Models and manufacturers

Prominent manufacturers adopting the MSX standard included Sony, Panasonic, Sanyo, Toshiba, Sharp Corporation, Philips, NEC, Victor Company of Japan (JVC), Gradiente, Mitsubishi Electric, and National Semiconductor-licensed implementations. Notable models encompassed Sony’s HitBit series, Panasonic’s FS line, and Philips’ NMS series, with later MSX2 and Turbo R variants developed by companies including ASCII Corporation and Sega. Regional licensees such as Gradiente in Brazil and distributors in Spain and Netherlands produced localized keyboards, manuals, and bundled software to suit markets dominated by firms like Promavision and local retailers.

Legacy and influence

MSX’s cross-manufacturer standardization presaged later platform strategies by companies such as IBM and Microsoft and influenced console and home computer development in the 1980s and 1990s. Iconic software libraries and franchises originating on MSX—many by Konami and Hudson Soft—informed game design on platforms like the NES, Mega Drive, and PC Engine. Retrocomputing communities, preservation projects, and emulators maintained by organizations and hobbyists such as MAME and independent developers preserve ROM images, documentation, and hardware schematics. Academic and industry retrospectives at institutions like University of Tokyo media labs and exhibitions at museums including The National Museum of Emerging Science and Innovation highlight MSX’s role in shaping regional computing cultures and cross-company collaboration during the microcomputer era.
