| MIM-14 Nike Hercules | |
|---|---|
 U.S. Army · Public domain · source | |
| Name | MIM-14 Nike Hercules |

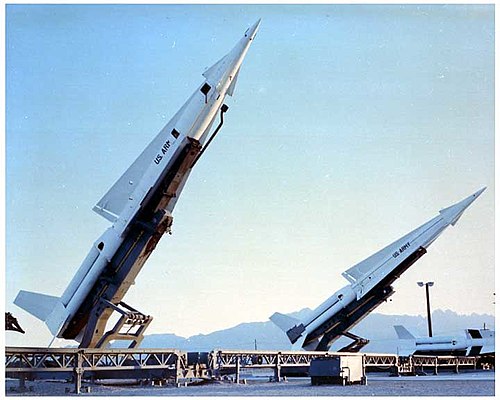

| Caption | Nike Hercules missile on launcher |
| Origin | United States |
| Type | Surface-to-air missile |
| Manufacturer | General Electric / Boeing / Thiokol |
| Service | 1958–1991 |
| Used by | United States Army / NATO / Japan Self-Defense Forces / Italian Army |
| Weight | 4,760 lb (2,160 kg) |
| Length | 41 ft (12.5 m) |
| Diameter | 2 ft 7 in (0.8 m) |
| Speed | Mach 3.65 |
| Vehicle range | 87 nmi (160 km) maximum |
| Ceiling | 100,000+ ft (30,000+ m) |
| Warhead | Conventional high explosive or nuclear W31 |
| Guidance | Command guidance with semi-active radar homing (early) |
| Launch platform | Fixed launcher / transporter erector launcher |
MIM-14 Nike Hercules The MIM-14 Nike Hercules was an American long-range surface-to-air missile system developed during the Cold War to provide high-altitude air defense against strategic bombers and later tactical threats. Designed as an evolution of the earlier Nike Ajax program, the Hercules combined extended range, higher speed, and optional nuclear capability to engage formations of Soviet Air Forces bombers and later cruise missiles. It served with the United States Army and allied forces across Europe, Asia, and North America until phased out in favor of modern systems like MIM-104 Patriot.
Development and Design
Development began under programs managed by the United States Army Ordnance Corps and industry teams led by Bell Labs, Bendix Corporation, and General Electric. The Hercules evolved from lessons of the Nike Ajax project and requirements emerging from analyses by Air Defense Command and planners influenced by events such as the Korean War and assessments of Strategic Air Command threats. Key design goals—set during reviews involving Department of Defense leadership and advisory input from RAND Corporation analysts—included higher supersonic speed, improved altitude performance, and compatibility with nuclear warheads authorized under directives from President Dwight D. Eisenhower administration planners. Propulsion was developed by contractors including Thiokol for solid-fuel boosters and Western Electric for avionics. Guidance architecture integrated radars from Raytheon and command systems adapted from North American Aviation control designs.
Technical Specifications
The airframe featured a two-stage configuration: a solid-fuel booster and a ramjet/rocket-assisted sustainer stage manufactured by firms such as Bendix and Aerojet. Guidance used track-while-scan radar networks built from AN/MPQ-43 Nike Hercules components and continuous-wave illuminators derived from General Electric radar work. Warhead options included the W31 fission device produced at Los Alamos National Laboratory and high-explosive fragmentation types developed at Picatinny Arsenal. Propulsion innovations traced to development programs at Jet Propulsion Laboratory and testing at White Sands Missile Range. Performance metrics placed the missile above Mach 3 with engagement envelopes cited during trials at Aberdeen Proving Ground and Eglin Air Force Base. Launch hardware included fixed launcher installations and transporter-erector-launchers designed in cooperation with Chrysler and Ford Motor Company subcontractors. Electronic counter-countermeasures were informed by studies conducted at Lincoln Laboratory and implemented using components from Hughes Aircraft Company.
Operational History
Initial operational deployment occurred under United States Army Air Defense Command installations beginning in 1958, coincident with NATO deployments coordinated by the Supreme Headquarters Allied Powers Europe. The system played roles in Cold War air defense coverage during crises including heightened tensions after the U-2 incident and the Cuban Missile Crisis. Units operated alongside systems such as Nike Ajax, Bomarc, and later MIM-23 Hawk batteries. Overseas operators included forces in Italy, Japan, West Germany, and Greece, where coordination involved liaison with CENTCOM and national air forces. The Hercules remained active through the Vietnam War era primarily in homeland defense roles rather than tactical deployments. Phasing out began as integrated air defense concepts shifted to mobile, solid-state systems exemplified by MIM-104 Patriot and advances in AWACS and integrated command networks.
Variants and Modifications
Major variants included early ground-launched Hercules configured for nuclear intercepts and later models optimized for conventional warheads with improved radar seekers. Upgrades implemented by United States Army Test and Evaluation Command and contractors such as Boeing and Martin Marietta added improved guidance electronics, solid-state components inspired by work at Fairchild Semiconductor, and compatibility with Mobile Nike sites. Export modifications tailored systems for Italian Army and Japan Self-Defense Forces requirements, incorporating indigenous communication equipment produced by Mitsubishi Heavy Industries and radar tuning by Alenia. Some testbeds integrated experimental seekers under programs run by DARPA and development testing at Holloman Air Force Base.
Deployment and Units
Nike Hercules batteries were organized into battalions, squadrons, and regional defense commands under the United States Army structure with notable garrison locations around Washington, D.C., Los Angeles, and New York City. NATO deployment clustered units in West Germany (including bases near Rhein-Main Air Base and Ramstein Air Base), Italy (around Naples), and Turkey under coordination with NATO Allied Air Forces. Japanese units were stationed on Honshu and attached to Japan Air Self-Defense Force air defense sectors. Reserve and National Guard units retained systems into the 1980s, administratively linked to U.S. Army Air Defense Command and regional commands such as CONUS air defense sectors.
Countermeasures and Effectiveness
Soviet and Warsaw Pact developments in electronic warfare, low-altitude penetration tactics, and the introduction of supersonic cruise missiles prompted studies by Defense Intelligence Agency and countermeasure responses implemented by Lincoln Laboratory and industry. Chaff, radar jamming from platforms studied by NATO intelligence, and evasive tactics tested in exercises with SHAPE required upgrades to Hercules radars and command links. The nuclear option provided area defense against bomber formations but raised political concerns managed at NATO ministerial meetings and within United States Congress debates. Effectiveness assessments documented in analyses by RAND Corporation and Brookings Institution noted strong deterrent value against high-altitude threats while highlighting limitations versus low-flying, terrain-masking targets leading to doctrinal shifts toward mobile SAMs and integrated air defense networks.
