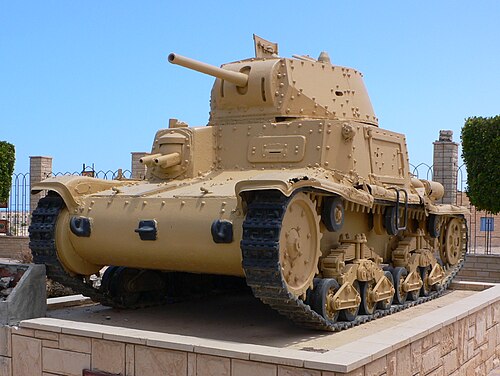

M13/40

M13/40
Heather Cowper from Bristol, UK · CC BY 2.0 · source
Name	Carro Armato M13/40
Caption	Italian medium tank, 1930s–1940s
Type	Medium tank
Origin	Kingdom of Italy
In service	1940–1943
Used by	Regio Esercito, Italian Social Republic
Wars	World War II, North African Campaign, Greco-Italian War, Sicilian campaign
Designer	Vickers-Armstrongs (influence), Fiat-Ansaldo
Design date	1938–1940
Manufacturer	Ansaldo, Fiat, Odero-Terni-Orlando
Production date	1940–1943
Number	approx. 740
Weight	13 tonnes
Length	4.92 m
Width	2.28 m
Height	2.0 m
Armor	6–42 mm
Primary armament	47 mm L/32 main gun
Secondary armament	1 × 8 mm Breda machine gun, 1 × 8 mm Breda coaxial
Engine	Fiat SPA 8-cylinder petrol
Engine power	125 hp
Power to weight	~9.6 hp/tonne
Suspension	vertical volute spring
Range	200 km
Speed	32 km/h

M13/40 was an Italian medium tank fielded during World War II by the Regio Esercito in campaigns including the North African Campaign and the Greco-Italian War. It succeeded earlier Italian designs such as the CV33 and L3/35 and preceded later models like the M14/41 and P26/40. The type reflected Italian industrial priorities from firms such as Fiat, Ansaldo, and Odero-Terni-Orlando and saw action against forces including the British Eighth Army, Commonwealth forces, and German Afrika Korps allies.

Design and development

Development began under interwar projects influenced by foreign designs like Vickers-Armstrongs exports and Italian trials with CV33 chassis and L3/35 support tanks. Conceived by engineers at Fiat-Ansaldo and produced by manufacturers including Ansaldo and Odero-Terni-Orlando, the vehicle carried a four-man crew drawn from doctrines of the Regio Esercito staff studying armored warfare after observations of the Spanish Civil War. Italian procurement priorities during the Second Italo-Ethiopian War and the lead-up to World War II shaped armor thickness, armament choices such as the 47 mm L/32 derived from Skoda influence, and reliance on the Fiat SPA petrol engine. Political direction from Benito Mussolini and industrial policy under ministries like the Ministry of War (Kingdom of Italy) affected production schedules and variants.

Technical specifications

The hull and turret arrangement reflected contemporary standards from Renault and Vickers influences while retaining distinct Italian features developed by Fiat-Ansaldo. Armor ranged from 6 mm on belly plates to 42 mm on the glacis, insufficient compared to Soviet designs such as the T-34 or German designs like the Panzer IV. The 47 mm L/32 gun provided moderate anti-armor capability versus early British Matilda II and later struggled against heavily armored vehicles fielded by the British Army and Wehrmacht. Suspension employed vertical volute springs and road wheels reminiscent of Marmon-Herrington conversions; mobility depended on the Fiat SPA 125 hp powerplant yielding about 9.6 hp/tonne and top road speeds near 32 km/h. Communications typically used radio sets supplied by firms like Magneti Marelli in command vehicles, while many units lacked intercoms analogous to shortages seen elsewhere in the Regia Aeronautica support services.

Operational history

First delivered to frontline units in 1940, the tank fought in the Greco-Italian War and was a mainstay during the early phases of the North African Campaign against British Western Desert Force and later the Eighth Army. In Operation Compass and subsequent engagements, crews operating under commanders from formations such as the Armoured Division "Ariete" encountered 8th Army units, Long Range Desert Group incursions, and later coordinated actions with elements of the German Afrika Korps under Erwin Rommel. The vehicle also served in homeland defense during the Allied invasion of Sicily and in limited numbers with the Italian Social Republic after the Armistice of Cassibile. Logistic constraints, fuel shortages, and replacement part shortages linked to blockades by Royal Navy operations and air interdiction by the Royal Air Force affected serviceability rates.

Variants and modifications

Production led to follow-ups including the M14/41 which increased engine output and made modest hull changes; later proposals produced the P26/40 heavy medium variant and specialized adaptations for battlefield roles. Field modifications by crews and workshops produced extra machine-gun ports, sand filters for desert service influenced by Ariete unit practices, and additional ventilation systems aftermarket similar to ad hoc changes seen in German panzer workshops. Some vehicles received captured or upgraded radios from German Wehrmacht stocks or rearmed experiments using guns influenced by Breda and Skoda workshops.

Combat performance and assessments

Contemporary assessments by British intelligence units and later analyses by historians from institutions like Imperial War Museum judged the tank as reliable mechanically under light conditions but underprotected and undergunned relative to opponents such as the Matilda II and later Sherman (M4) variants. Operational critiques cited limited crew fields of view, turret ergonomics, and insufficient radio equipment compared to British Army and Wehrmacht standards. Postwar studies by armored warfare scholars at universities and organizations including King's College London and publications from former officers in the Regio Esercito emphasize its adequacy in reconnaissance and infantry support roles but underline shortcomings in anti-tank engagements during major set-piece battles.

Surviving examples and legacy

Surviving examples are preserved in museums such as the Museo della Guerra di Rovereto, Museo Storico della Motorizzazione Militare, and collections in the United Kingdom and Russia where captured specimens were examined. The tank's legacy influences Italian postwar armored thinking, seen later in designs by firms like Fiat and industrial conglomerates that restructured into entities such as Iveco and AnsaldoBreda. As a subject of reenactment and historical restoration, it remains a focus for military historians, veteran associations, and heritage institutions including the Fondazione Centro Studi sul Campo.
