Lotus 49

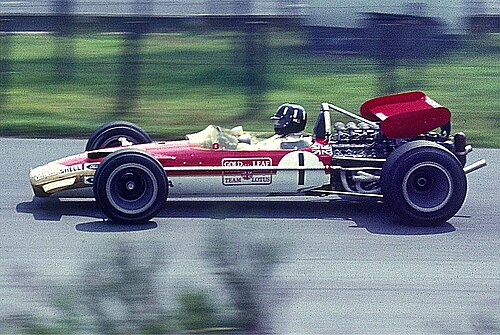

Lotus 49
Lothar Spurzem · CC BY-SA 2.0 de · source
Name	Lotus 49
Manufacturer	Team Lotus
Production	1967–1968
Designer	Colin Chapman, Maurice Philippe, Keith Duckworth
Class	Formula One car
Layout	Mid-engine, longitudinally mounted
Engine	Ford Cosworth DFV V8
Debut	1967 Dutch Grand Prix
Championships	1968 Constructors' Championship

Lotus 49

The Lotus 49 was a Formula One racing car introduced in 1967 by Team Lotus and driven by Graham Hill, Jim Clark, and later by Jochen Rindt. It combined a novel stressed-member engine layout with a lightweight spaceframe and advanced suspension to compete in the 1967 Formula One season and 1968 Formula One season, yielding victories at the Dutch Grand Prix, Monaco Grand Prix, and contributing to the 1968 Formula One World Championship for Team Lotus. The car's designers included Colin Chapman, Maurice Philippe, and Keith Duckworth of Cosworth Engineering, and it exploited the newly developed Ford DFV engine relationship between Ford Motor Company and Cosworth.

Design and development

The 49 originated from collaboration among Colin Chapman, Team Lotus, and Cosworth Engineering following discussions with Ford Motor Company executives and advisors from John Wyer's associates. Chapman approved Maurice Philippe's chassis concept that used the Ford DFV as a stressed structural member bolted to a monocoque-style frame, an idea influenced by contemporary practice at BRM and earlier experiments by Jack Brabham's team. Keith Duckworth's DFV V8 provided 400–420 bhp and light weight, allowing Chapman to pursue minimal mass like in earlier Lotus models such as the Lotus 25 and Lotus 33. The design integrated inboard brakes and sophisticated wishbone suspension with magnesium components supervised by Lotus engineers including Colin Chapman's technical staff and aerodynamic input from consultants who had worked on vehicles for BRM and Cooper Car Company.

Technical specifications

The chassis used a riveted and bonded aluminum structure with load paths terminating at the Ford DFV block, which served as a stressed member between the gearbox and the monocoque. The Cosworth DFV V8, designed by Keith Duckworth and Mike Costin, displaced 2993 cc with 90° V-angle, dual overhead camshafts, and four valves per cylinder; it was mounted longitudinally and produced peak torque and power suited to circuits like Spa-Francorchamps and Monza. Transmissions were typically the Hewland DG or Hewland LG units selected by Team Lotus and privateers, coupled to driveshafts and a magnesium housing. Suspension comprised upper and lower wishbones, outboard and inboard dampers, and anti-roll bars influenced by earlier Lotus suspension concepts seen on the Lotus 25; brakes were Girling ventilated discs developed alongside suppliers who had worked with BRM and Cooper. Fuel systems used high-octane blends sourced via partnerships involving Shell and race fuel specialists who also supplied teams like Ferrari and BRM.

Racing history

The 49 debuted at the 1967 Dutch Grand Prix with Jim Clark and Graham Hill as principal drivers; Clark secured immediate success, demonstrating the DFV's power and the chassis' handling on street circuits similar to Monaco and permanent circuits like Silverstone Circuit. Throughout 1967 and 1968 the car contested rounds across the Formula One World Championship calendar including the Belgian Grand Prix, Italian Grand Prix, and French Grand Prix, collecting wins, podiums, and pole positions for drivers such as Jim Clark, Graham Hill, and Jochen Rindt. The 49 contributed decisively to Team Lotus' competitiveness against rivals including Scuderia Ferrari, BRM, Cooper Car Company, and Matra; mechanical retirements, tire failures from suppliers like Firestone and Goodyear, and the tragic deaths of drivers including Jim Clark in other machinery affected championship outcomes. In 1968 the model evolved into 49B and later 49C iterations to meet aerodynamic developments pioneered by teams such as McLaren and Brabham (Formula One).

Legacy and influence

The stressed-engine concept and DFV integration set by the 49 established a template that influenced designs from McLaren, Brabham, Tyrrell, and Matra Sports throughout the late 1960s and 1970s. The DFV became the standard powerplant for championship contenders including McLaren M23 and Tyrrell P34-era teams, underpinning engineering approaches at Williams Grand Prix Engineering and affecting supplier relationships with Ford Motor Company and Cosworth Engineering. Colin Chapman’s lightweight philosophy, seen earlier at Lotus 25, continued to affect road-car divisions like Lotus Cars and influenced aerodynamic research later pursued at Aston Martin and McLaren Automotive. The 49's innovations also shaped regulations debated at Fédération Internationale de l'Automobile meetings and prompted competitors such as Ferrari and BRM to prioritize chassis-engine integration and supplier alliances.

Surviving cars and restorations

Several original chassis survive in collections, museums, and private hands, displayed at institutions like the National Motor Museum, Science Museum (London), and private museums belonging to collectors who have also curated vehicles from Ferrari, McLaren, and Brabham. Restorations have been undertaken by specialist workshops associated with Hewland and historic-racing teams such as Lotus Historic and veteran mechanics who worked for Team Lotus during the 1960s. Surviving cars are campaigned in historic events including the Goodwood Revival, Monterey Motorsports Reunion, and Le Mans Classic where drivers and owners collaborate with archivists from Team Lotus and engineers formerly at Cosworth Engineering to recreate period-correct setups involving Girling brakes, Hewland gearboxes, and authentic Ford-branded DFV units. Auctions and private sales have exchanged 49 chassis among collectors who also trade contemporaneous models by Ferrari, Cooper Car Company, and BRM.
