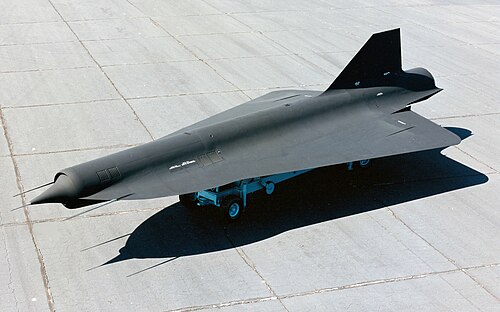

Lockheed D-21

Lockheed D-21
U.S. Air Force · Public domain · source
Name	D-21
Role	Reconnaissance drone
Manufacturer	Lockheed Corporation; Lockheed Skunk Works
First flight	1964
Primary user	United States Air Force; Central Intelligence Agency
Status	Retired

Lockheed D-21 The Lockheed D-21 was a high-speed, high-altitude, unmanned reconnaissance platform developed in the 1960s by Lockheed Corporation's Skunk Works for use by the Central Intelligence Agency and the United States Air Force. Conceived during the Cold War arms race alongside projects such as the A-12 Oxcart and SR-71 Blackbird, the D-21 was intended to overfly denied territory at Mach 3+ and return film payloads for recovery. The program intersected with personalities and entities including Kelly Johnson, Ben Rich, and agencies involved in Project Oxcart and Project Azorian planning.

Development

Development began as part of post-Korean War and early Vietnam War reconnaissance planning when existing platforms like the U-2 faced growing threats from Soviet and Chinese air defenses such as the S-75 Dvina (SA-2). The concept originated at Lockheed to create a long-range, autonomous, ramjet-powered drone that could be launched from a modified mother ship; initial partnerships involved the CIA and the USAF. Early studies referenced technologies matured on the A-12 and YF-12 programs and drew on turbine and materials research from General Electric and Pratt & Whitney projects. Funding and oversight shifted between Defense Advanced Research Projects Agency efforts and classified procurement channels; program milestones included ground tests, captive-carry flights, and high-speed flight testing, with influence from operators at Area 51 and test ranges at Groom Lake and Edwards Air Force Base.

Design

The D-21 featured a slender, slab-sided fuselage, chines, and inlets optimized for sustained Mach 3+ flight; its propulsion relied on a derivative of the ramjet concept similar to work performed on Marquardt designs and contemporary studies by NASA's Ames Research Center. Construction used titanium and specialized alloys developed during the Skunk Works's work on the SR-71 to endure high kinetic heating experienced at stratospheric altitudes. Guidance and navigation used inertial systems akin to those in LGM-30 Minuteman missile technology combined with preprogrammed flight profiles and barometric altimetry linked to redundant avionics, while the recovery system employed a mid-air retrieval scheme following ejection of a heat-protected film canister. The D-21 carried optical reconnaissance payloads developed in collaboration with firms such as Eastman Kodak and other defense contractors; its stealthy radar cross-section reduction reflected lessons from A-12 shaping, though signature reduction was not the prime design driver.

Operational history

Operational planning envisioned missions over Soviet Union, People's Republic of China, and North Vietnam targets during a period of escalating aerial reconnaissance needs. Initial attempts to deploy the D-21 from a piggyback configuration on modified A-12 airframes encountered integration challenges; after a catastrophic separation incident, the launch scheme shifted to use the B-52 Stratofortress and later independent launches from specially outfitted carriers. Test flights and operational sorties were conducted from western ranges and Pacific staging points, with mission management coordinated through elements of the CIA and Air Force Systems Command. Political pressures from events such as the Gulf of Tonkin incident and changing doctrine influenced mission tempo and the program's ultimate scale-back. Despite demonstrating capability in reaching denied airspace, constraints in film recovery rates and evolving satellite reconnaissance such as the Corona and later Gambit programs reduced the D-21's strategic role.

Accidents and losses

The program experienced several high-profile mishaps during testing and limited operational use. A separation failure during a captive-carry launch resulted in the loss of an A-12 airframe and the death of a flight crew, provoking investigations by Air Force and CIA technical boards. Other flights suffered propulsion anomalies, mid-air separations, and failed recoveries of film payloads over ocean areas monitored by US Navy recovery forces. Press scrutiny and Congressional oversight panels in the post-Watergate environment examined cost overruns and procurement decisions tied to classified programs. Cumulative attrition, along with a notable loss of an operational vehicle during a Pacific mission, eroded confidence in the system's operational reliability.

Variants

Planned and built variants of the D-21 included the baseline reconnaissance configuration, adaptations for captive-carry launch compatibility with different carrier platforms, and prototypes featuring alternative guidance or payload packages. One significant offshoot altered launch procedures to resolve the initial A-12 separation hazard by modifying carrier aerodynamics and separation mechanisms. Studies also considered sensor upgrades to integrate electro-optical and nascent electronic intelligence suites, but many of these proposals remained on paper as reconnaissance satellite capabilities matured through programs under National Reconnaissance Office oversight.

Survivors and displays

A small number of D-21 airframes, test articles, and associated components survive in museum collections and archival facilities. Exhibits can be found alongside other Cold War aerospace artifacts at institutions such as the Smithsonian National Air and Space Museum, the National Museum of the United States Air Force, and specialized collections near Edwards Air Force Base and Wright-Patterson Air Force Base. Declassified documents, photographs, and recovered hardware have informed historical studies by authors and researchers associated with RAND Corporation and academic programs at Stanford University and Massachusetts Institute of Technology.
