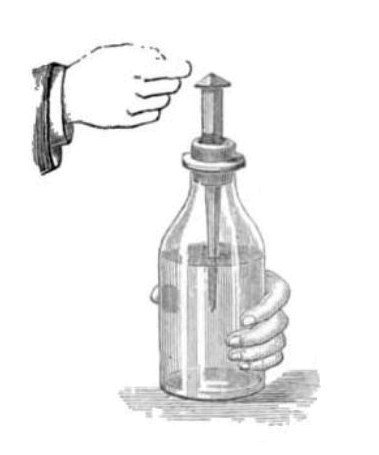

W. Jerome Harrison · Public domain · source
Name	Leyden jar
Caption	Early Leyden jar, 18th century
Inventor	Pieter van Musschenbroek
Invented	1745–1746
Country	Dutch Republic
Type	Electrostatic capacitor

Leyden jar The Leyden jar is an early form of the electrostatic capacitor developed in the mid-18th century. It stores electrical charge between conductors separated by an insulator and played a pivotal role in the development of experimental electricity and electrostatics. The device influenced experiments by figures such as Pieter van Musschenbroek, Ewald Georg von Kleist, and later investigators including Benjamin Franklin and Antoine Lavoisier.

History

The Leyden jar emerged during a period of intense inquiry into electricity and electrostatic induction in the 1740s. Independent discoveries by Pieter van Musschenbroek at the University of Leiden and Ewald Georg von Kleist in Köslin produced similar devices that captured public and scholarly attention across Europe. Reports circulated through correspondences with institutions like the Royal Society and the Académie des Sciences, drawing responses from experimenters including Benjamin Franklin, Joseph Priestley, and Henry Cavendish. The jar became central to demonstrations in venues such as the Paris Salons and lecture halls at the University of Göttingen, influencing later work by Michael Faraday and contributing to the formalization of the concept of capacitance by scientists like James Clerk Maxwell.

Construction and Design

Traditional jars combined a glass container with internal and external conductors. Early makers used common items in workshops at institutions including the University of Leiden and private laboratories of collectors like Erasmus Darwin and Thomas Franklin. Internal conductors were often metal rods or chains connected to a terminal, while external conductors were layers of foil or metal paint applied to the glass surface. The insulating glass dielectric could vary in thickness and composition, with glassworks from regions such as Venice, Bohemia, and Alsace contributing different qualities noted by collectors including Antoine Lavoisier. Designs evolved in cabinets at places like the Royal Institution where experimenters including Humphry Davy adapted jars into battery-like arrays.

Operation and Theory

Operation involved charging the inner conductor relative to the outer conductor, then storing energy as separated charge across the glass dielectric. Early interpretations invoked notions debated between proponents such as Benjamin Franklin (single-fluid theory) and continental theorists supporting the two-fluid view advanced by figures like Charles-Augustin de Coulomb. Quantitative theory advanced through measurements by experimenters such as Henry Cavendish and later formalization by Michael Faraday and James Clerk Maxwell, linking stored charge Q, potential difference V, and capacitance C via the relation Q = CV. Laboratories at institutions including the Royal Society and the University of Cambridge used Leyden jars to explore electrostatic induction and to probe phenomena later understood through Maxwell's equations and dielectric theory developed by researchers like Oliver Heaviside.

Variations and Improvements

Inventors and instrument makers produced many variants to optimize capacity and safety. Arrays of jars were assembled in institutions like the École Polytechnique and the Royal Institution to increase total capacitance for experiments by Antoine Lavoisier and Humphry Davy. Improvements included multilayered glass from workshops in Bohemia, internal coatings refined by instrument makers working with collectors such as Sir Joseph Banks, and the introduction of insulating handles and terminals influenced by designs at the Royal Society. Later developments in the 19th century by researchers including William Thomson, Lord Kelvin and George Johnstone Stoney led to theoretical and practical refinements that foreshadowed modern capacitors used in engineering at institutions like the University of Glasgow.

Applications and Experiments

Leyden jars were used in demonstrations and research across many centers of learning and public spectacle. They featured in public lectures at the Royal Institution by lecturers such as Humphry Davy and in demonstrations in salons frequented by figures like Antoine Lavoisier and Benjamin Franklin. Experimenters used jars to investigate electrical discharge, spark length, and effects on biological specimens in studies by Luigi Galvani and observers in Italian academies. Collections at the British Museum and private cabinets like those of Erasmus Darwin preserved notable examples that informed museum displays and pedagogy in universities including the University of Oxford and University of Cambridge. Arrays of jars were integral to early attempts at transmitting charge in experiments conducted at locations such as the Observatoire de Paris and workshops of instrument makers in London.

Safety and Handling

Historical operators at venues including the Royal Society and private laboratories learned to respect the jars' stored energy; accidental discharges were recorded in correspondence among Pieter van Musschenbroek, Ewald von Kleist, and Benjamin Franklin. Modern treatment of antique jars in museums like the British Museum and technical collections at the Science Museum, London follows protocols established by conservation scientists associated with institutions such as the Courtauld Institute to avoid electrical hazards and glass breakage. Handling precautions include discharging through grounded resistors, insulating gloves and tools used by curators at places like the Victoria and Albert Museum, and controlled storage conditions advocated by conservationists at the Metropolitan Museum of Art.
