La Fayette-class frigate
Generated by GPT-5-miniExpansion Funnel Raw 51 → Dedup 0 → NER 0 → Enqueued 0
| La Fayette-class frigate | |
|---|---|

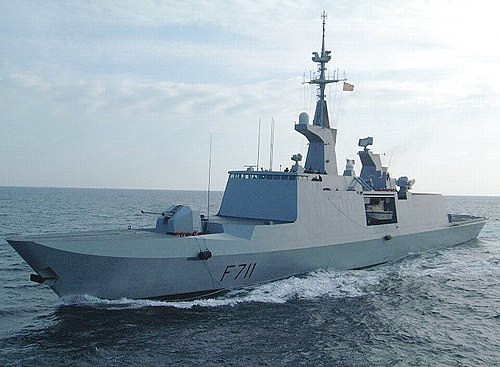

 Franck Dubey · CC BY-SA 3.0 · source | |
| Name | La Fayette-class frigate |
| Caption | La Fayette-class design |
| Builders | DCN, Armaris |
| Built | 1990s–2000s |
| In service | 1996–present |
| Number built | 17 |
| Type | Light frigate |
| Displacement | 3,000 tonnes (full load) |
| Length | 125 m |
| Beam | 15.4 m |
| Draught | 4.8 m |
| Propulsion | Combined diesel and diesel (CODAD) |
| Speed | 25–27 kn |
| Range | 8,000 nmi at 15 kn |
| Complement | ~160 |
La Fayette-class frigate is a class of French stealthy light frigates designed for littoral surveillance, anti-surface and limited anti-air warfare, and naval diplomacy. Conceived by Direction des Constructions Navales (DCN) and built during the 1990s and 2000s, the class introduced stealth shaping and reduced radar cross-section to modern European warship design. The design influenced export variants sold to several navies and played roles in operations linked to Opération Harmattan, Operation Enduring Freedom, and other multinational maritime efforts.
Design and Development
The La Fayette program originated in the late 1980s under the auspices of Direction des Constructions Navales and private industry partners including Thales Group and Armaris, responding to needs expressed by the Marine Nationale. The design emphasized reduced observables via inclined hull and superstructure panels, internalized weapon systems, and use of composite materials—features promoted by DCN engineers collaborating with industrial partners such as Constructions Mécaniques de Normandie and Nexter Systems. Ship architects balanced stealth with seaworthiness to operate from the North Atlantic to the Gulf of Guinea and Indian Ocean. Political drivers included French post-Cold War force transformation debates in the Ministry of Defense (France) and budgetary constraints following the end of the Cold War, which shaped a light, multirole platform intended to complement larger vessels like Horizon-class frigate and Forbin-class destroyer.
Specifications
A La Fayette-class ship displaces about 3,000 tonnes full load and measures approximately 125 metres in length with a beam around 15.4 metres. Propulsion uses a CODAD arrangement of four diesel engines by manufacturers such as SEMTP and MTU Friedrichshafen, driving two shafts for speeds up to 25–27 knots and ranges near 8,000 nautical miles at economical speeds. Survivability features include compartmentalization influenced by Damage control lessons from French Navy operational experience and signature reduction techniques advocated by naval architects tied to Chantiers de l'Atlantique. Crew complements are typically around 140–180 personnel depending on mission fit and embarked helicopter elements such as the Eurocopter AS332 Super Puma or NHIndustries NH90.
Armament and Sensors
Original armament packages prioritized anti-surface warfare with a 100 mm stealth gun produced by Nexter Systems and anti-ship missile capability via launchers for the Exocet family developed by MBDA (missile manufacturer). Air defence in early ships relied on point-defence systems and man-portable solutions, later augmented by vertical launch systems on upgraded units integrating systems like the MBDA MICA or complementary point-defence missiles influenced by Crotale and Sea Sparrow concepts. Anti-submarine warfare capability included hull-mounted sonar suites provided by Thales and space for towed array systems on modified vessels. Sensor suites incorporated phased radar and electronic support measures from Thales Group and integrated combat systems derived from DCN's combat management work, allowing links into networks such as Link 11 and later Link 16 via cooperative systems integration often demonstrated during multinational exercises like Exercise RIMPAC and Exercise MISTRAL.
Operational History
La Fayette-class frigates entered French service in the mid-1990s and have operated in diverse theaters from the Mediterranean Sea to the Indian Ocean and Caribbean Sea, participating in counter-piracy, maritime interdiction, and embargo enforcement. Units supported operations like Opération Baliste, Opération Daguet related deployments, and coalition patrols during Operation Atalanta. Ships conducted presence missions in the Gulf of Guinea cooperating with regional navies and allied platforms including Royal Navy and United States Navy units. Export variants saw action in national fleets during patrols, sovereignty operations, and multilateral drills such as Exercise CENZUB-style interoperability activities. Upgrades over service life addressed lessons from deployments, enhancing sensors, communications, and force protection to meet evolving threats identified by NATO and EU maritime security assessments.
Variants and Modifications
Several variants evolved from the baseline design. The French original series were followed by upgraded French ships receiving combat system modernizations, enhanced electronic warfare suites from Thales Group, and provision for new point-defence missiles. Export versions include larger-displacement or bespoke-fitted ships produced for other navies with changes in propulsion, weapon fit, and aviation facilities implemented by shipbuilders such as Blohm+Voss subcontractors or DCN partner yards. Mid-life refits featured installation of new data links, satellite communications compatible with SATCOM constellations, and structural changes to support NH90 flight operations. Modular mission bay concepts trialed on later refits mirrored concepts explored by Naval Group and academic researchers at institutions like École Navale.
Export and Service with Foreign Navies
The La Fayette design spawned export success with navies including Republic of China Navy (Taiwan), Royal Saudi Navy, and Kingdom of Morocco receiving variants tailored to national requirements. Taiwanese variants, known domestically under a different class name, integrated indigenous combat systems and anti-ship missiles while benefiting from industrial cooperation with French firms. Saudi and Moroccan ships were adapted for regional patrol roles and fleet interoperability with partners such as United States Navy and French Navy during joint exercises. Export contracts involved complex offsets and technology transfer agreements negotiated with the French government and industry consortia, influencing subsequent bilateral naval cooperation and shipbuilding capacity development in purchasing countries.
