Koch snowflake

Koch snowflake
Original: Chas_zzz_brown,Shibboleth Vector: The original uploader was Wxs at · CC BY-SA 3.0 · source
Name	Koch snowflake
Creator	Helge von Koch
First published	1904
Field	Fractal geometry
Properties	Infinite perimeter, finite area, self-similarity

Koch snowflake The Koch snowflake is a classic mathematical curve and fractal first introduced by Helge von Koch in 1904 as an example of a continuous nowhere differentiable curve. It begins from a simple equilateral triangle and grows by iterative refinement, producing a boundary with infinite length enclosing a finite area; the construction and properties have influenced research in Fractal geometry, measure theory, complex analysis, and dynamical systems.

Definition and construction

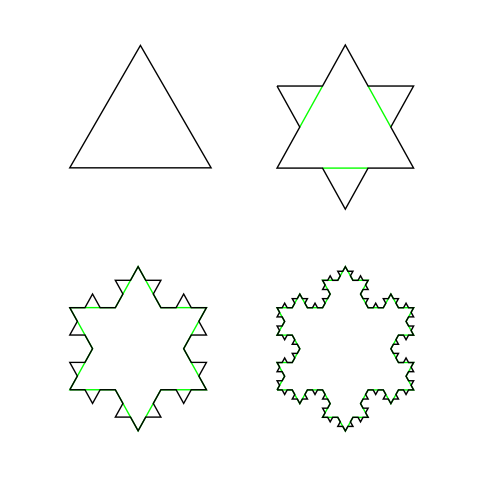

Start with a unit-side equilateral triangle (often called the initiator). At each iteration (the generator), divide every line segment into three equal parts and replace the middle third by the two sides of an outward-pointing equilateral triangle, creating four segments where there was one; repeat this rule recursively on every straight segment. The iterative procedure is closely related to constructions in geometric recursion, iterated function systems, and the polygonal approximations used in studies by David Hilbert and Felix Hausdorff. The limit set of this process is a non-self-crossing closed curve that is invariant under a set of similarity transformations related to similarity (geometry), and it can be described via an iterated function system of four contraction mappings on the plane.

Mathematical properties

Topologically the curve is a simple closed set homeomorphic to the circle, while as a metric object it exhibits self-similarity and fractal dimension log(4)/log(3) ≈ 1.2619, derived from scaling rules used in Hausdorff dimension calculations pioneered by Felix Hausdorff and elaborated in the context of Minkowski–Bouligand dimension and box-counting dimension. The perimeter grows by a factor of 4/3 at each stage and tends to infinity, furnishing an early counterexample in discussions around Jordan curve theorem intuitions; the enclosed area converges to a finite value, computable via a geometric series as 8/5 times the area of the initial triangle, an argument familiar in Euclidean geometry and classical infinite series analysis. The snowflake boundary is continuous everywhere and differentiable nowhere, exemplifying notions introduced in work by Karl Weierstrass and later explored in functional analysis and real analysis. Its boundary supports interesting harmonic measure and potential theory phenomena studied in complex dynamics and conformal mapping, with connections to Riemann mapping theorem techniques and investigations by researchers influenced by Henri Poincaré and S. Smirnov.

Variations and generalizations

Variants replace the equilateral generator with other polygonal or curved motifs to produce families such as the Koch antisnowflake (inward bumps), asymmetric generators, and higher-order polygonal initiators like a square or pentagon; these generalizations relate to research in L-systems, von Neumann neighborhood style automata, and substitution tilings studied by Roger Penrose and Wang tiles contexts. Parametric families alter the bump angle and scaling to tune Hausdorff dimension, linking to multifractal analysis and measures associated to Gibbs measures and thermodynamic formalism used by researchers influenced by David Ruelle. Higher-dimensional analogues embed the iterative rule into Euclidean space of dimension three or more to produce Koch-type surfaces and fractal boundaries studied in geometric measure theory by scholars following methods from Herbert Federer.

Applications and appearances in science and art

The Koch snowflake and its variants appear across disciplines: in physics problems modeling anomalous diffusion on fractal boundaries and percolation phenomena connected to work inspired by Per Bak, in biology for modelling branched structures and growth patterns reminiscent of certain coral morphologies, and in engineering where fractal antennas and rough-surface models draw on Koch-like generators as in research at institutions like MIT and Bell Labs. In visual culture the snowflake has been used by artists influenced by M. C. Escher and Piet Mondrian for explorations of recursion and symmetry in printmaking and digital media; its aesthetic has appeared in graphic design and mathematical outreach at museums such as the Science Museum, London and the Museum of Mathematics (MoMath). The construction has pedagogical uses in classrooms influenced by curricula from NCTM and math outreach programs affiliated with Mathematical Association of America.

Computation and visualisation methods

Computation of approximations uses recursive polygonal refinement, complex-plane affine maps composing an iterated function system, or string-rewriting via Lindenmayer system grammars; implementations appear in software environments including MATLAB, Python with libraries like NumPy and Matplotlib, and graphics frameworks such as OpenGL and WebGL for GPU-accelerated rendering. Exact arithmetic and symbolic approaches leverage algebraic number methods and rational arithmetic to avoid floating-point error, while efficient rendering for high iteration counts employs level-of-detail schemes, mesh simplification, and distance-estimation techniques used in ray-marching algorithms developed in computer graphics research at SIGGRAPH conferences. Numerically, computing measures (area, harmonic measure) draws on quadrature rules, Monte Carlo methods, and boundary integral equation solvers influenced by techniques from Numerical Analysis groups at Courant Institute and INRIA.
